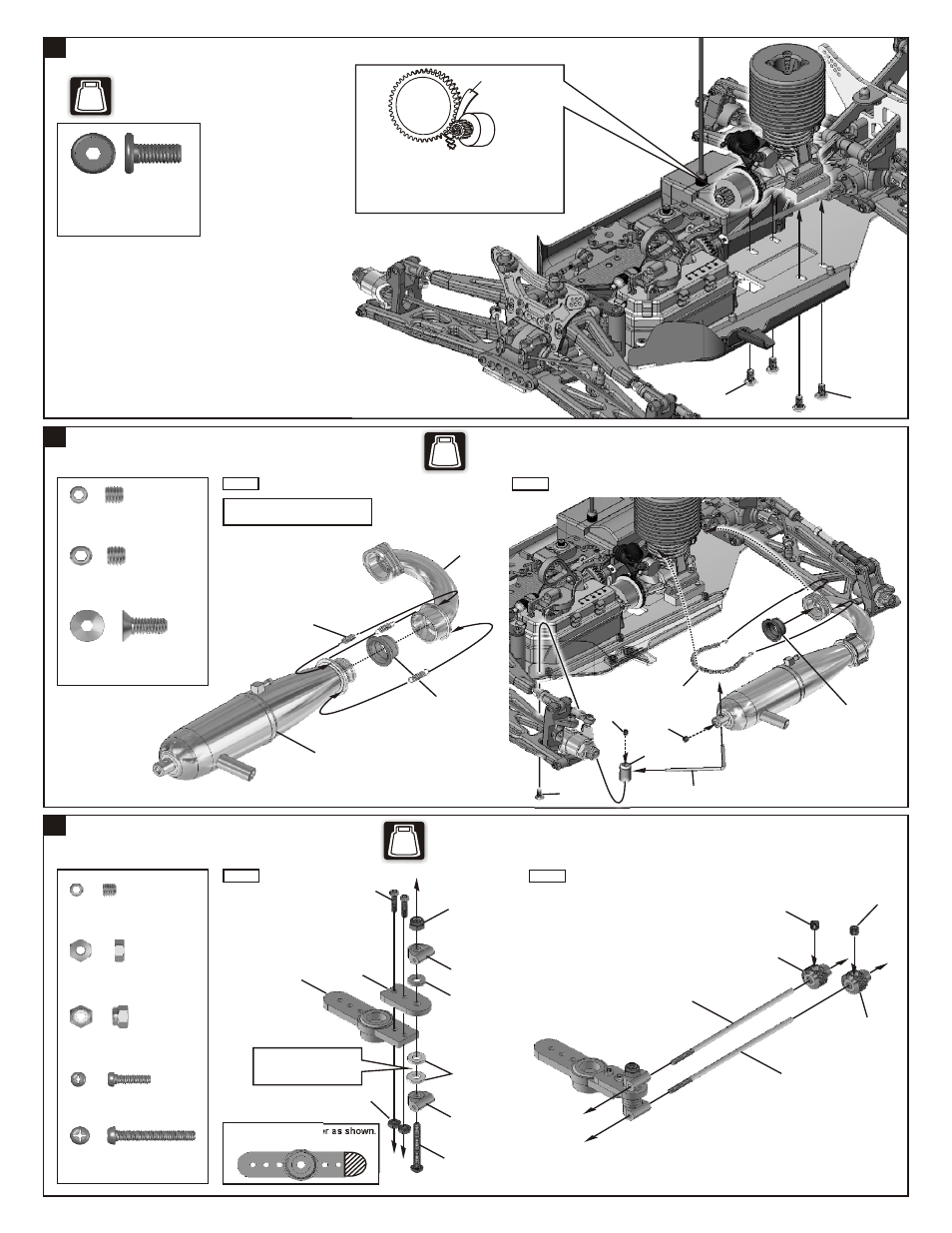

ASSEMBLY OF THE ENGINE ONTO CHASSIS

ASSEMBLY OF THE MANIFOLD AND MUFFLER

ASSEMBLY OF THE THROTTLE LINKAGE

Step 1

Step 2

Cut off the servo saver as shown.

30661

10114

4x10mm

5x4mm

10120

10052

41050

94033
3x3mm
Set Screw

.....x2

2mm
Nut

.....x2

40060
Nylon Nut

.....x1

2x8mm
Screw

2.6x18mm
Screw

.....x2

.....x1

94039
4x10mm
Flat Head Hex Screw

.....x1

94034
4x4mm
Set Screw

.....x1

4x4mm

95700
1/8 Silicone
Seal(Option)

94036
5x4mm
Set Screw

.....x1

*Use note book paper to set gear backlash
between spur gear and clutch bell gear,
applying pressure while retightening the
engine.
*If the space is not correct the spur gear
will be damaged.

Note book Paper.

10114
5mm
Engine Mount Screw .....x4

2.6x18mm

30802

40060

2mm

40617

30802

2x8mm

3x3mm

36140

30172

95700
1/8 Spring(Option)

Manifold(Option)

10129

Muffler(Option)

10129

95700
1/8 Silicone
Seal(Option)

30172

NO.8

BAG

NO.8

BAG

NO.7

BAG

*Adjust the height with
3x6.4x1mm washer.

*The muffler and manifold may
not included from different kit.

Step 1

10114

3x3mm

36140
