Caution – WEATHER GUARD Model 2505 Mounting Bracket, KUV User Manual

Page 2

If you have any questions, please give us a call. Call Toll Free 1-800-456-7865

WEATHER GUARD® products are protected by one or more of the following patents:

U.S. - 5145087, 5308126, 4509787, 4573731, 4618083, D-346355, D-346994, D-353574; Canada - 1218968, 1224230, 1235100 and; U.K.- 2233036.

other patents pending.

KNAACK LLC

420 E. TERRA COTTA AVENUE - CRYSTAL LAKE, ILLINOIS, USA 60014

815-459-6020

- NOTICE -

Any modification or unintended use of this product shall immediately void all manufacturers warranties.

Manufacturer disclaims all liability for injuries to persons or property resulting from any modification to, or

unintended use of this product.

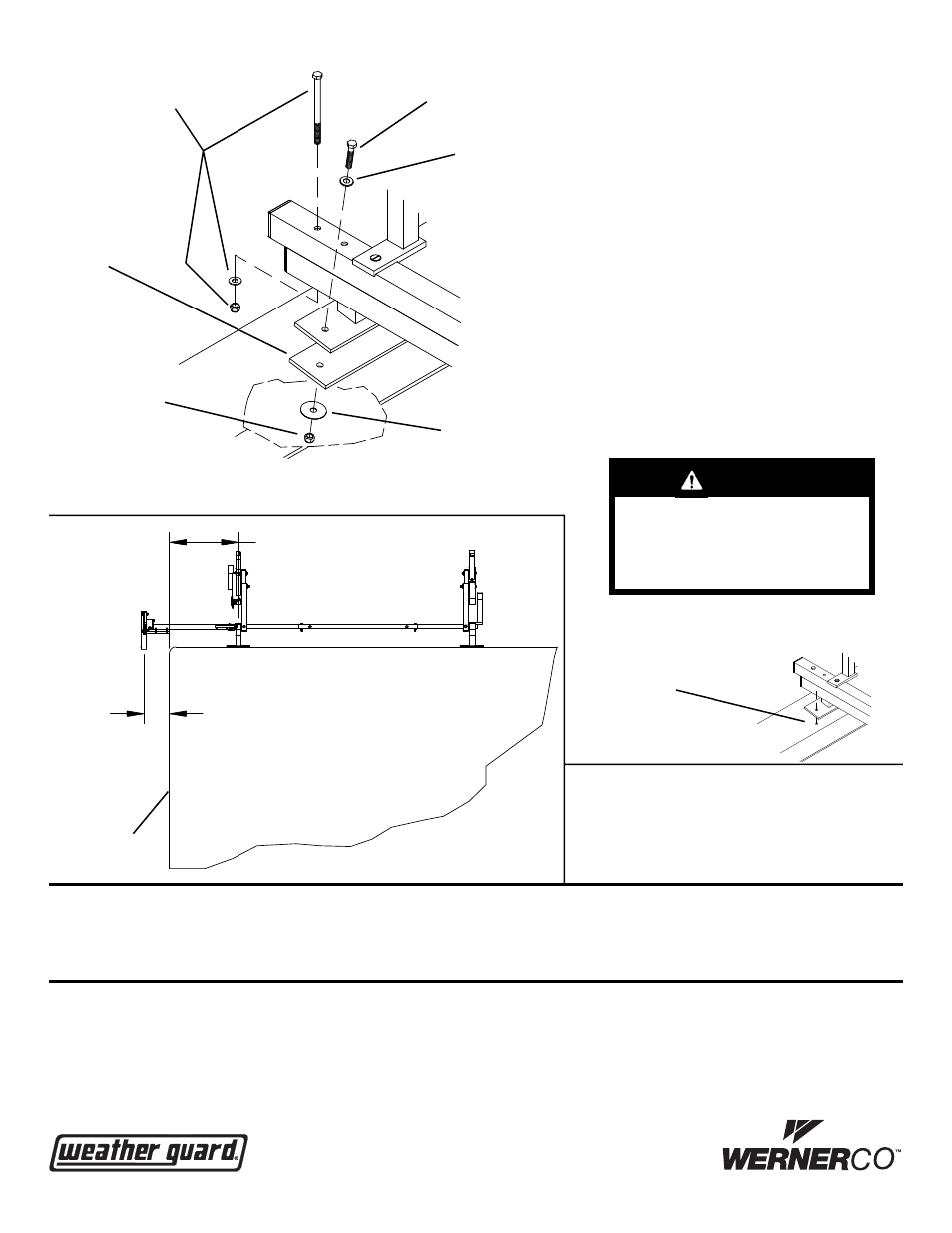

5/16-18 x 4" Fasteners sup-

plied with Model 281

(4)

5/16-18 x 1-1/4"

Hex Head Bolt

(8)

5/16-18 Nylon

Lock Nut

(8)

5/16 Bonded

Steel/Rubber

Washer

(8)

Fender Washer

(8)

NOTE: Follow the instruction manual,

supplied with the Hi Cube ladder rack, up

to the "Vehicle Mounting Procedure"

section. Read and have an understand-

ing of both the instructions listed below

and the steps in the "Vehicle Mounting

Procedure" section in order mount the

ladder rack to the KUV.

1.) Use the 5/16-18 x 4" fasteners (supplied

with the Hi Cube ladder rack bolt kit)

to connect the rack assembly to the

KUV Mounting Bracket.

2.) Position the rack assembly on the

KUV roof. Keep the 3" to 6"

clearance between the handle and

the back of the body (As shown below

left).

3.) Set the mounting feet approximately 2"

from the top edge of the roof.

4.) Mark (8) .343 dia. holes using the

mounting feet as a template,then drill.

5.) Place unit on the vehicle with one rubber

pad under each mounting foot. Tighten all

fasteners.

6.) Continue with the "Ladder and Cylinder

Adjustments" section of the Hi Cube

instruction manual.

.343 dia. hole

(8)

3" x 7"

Rubber Pad

(4)

CAUTION

To keep debris out of your

eyes when drilling, always

wear protective eyewear.

3" - 6"

22-1/2" - 25-1/2"

Back of van

Part No. 24-0191 REV. B ECN 5315 05/13
