INSTALLATION PROCEDURE

USING BLIND FASTENERS

INSTALLATION

INSTRUCTIONS

Set the box into position in the ve-

hicle and open the cover.

CAUTION

To keep debris out of your
eyes when checking the
underside of the vehicle, or
when drilling, always wear
protective eyewear.

WARNING

Prior to drilling, so as not to
cut or puncture fuel tanks,
fuel lines, brake lines, elec-
tric wires, etc., check under
vehicle for locations.

WARNING

All floor mounting bolts near
the gas tank area should be
installed from the underside
of the vehicle, to guard
against the gas tank being
punctured in the event of a
collision. This would mean
not using Blind Fasteners
in this area. Holes drilled in
this area should be 3/8".

Making sure you are drilling

through the top area of the ribs in the

floor of the vehicle, drill four holes

through the box and floor using a 3/

16" drill bit. Re-drill the holes in the

box with a 3/8" drill bit, and the holes

in the vehicle floor with a 1/2" drill bit.

NOTE:

One extra 5/16" Flat Washer

and one 5/16-18 Nylon Lock Nut are

provided if the Blind Fastener can't be

used.

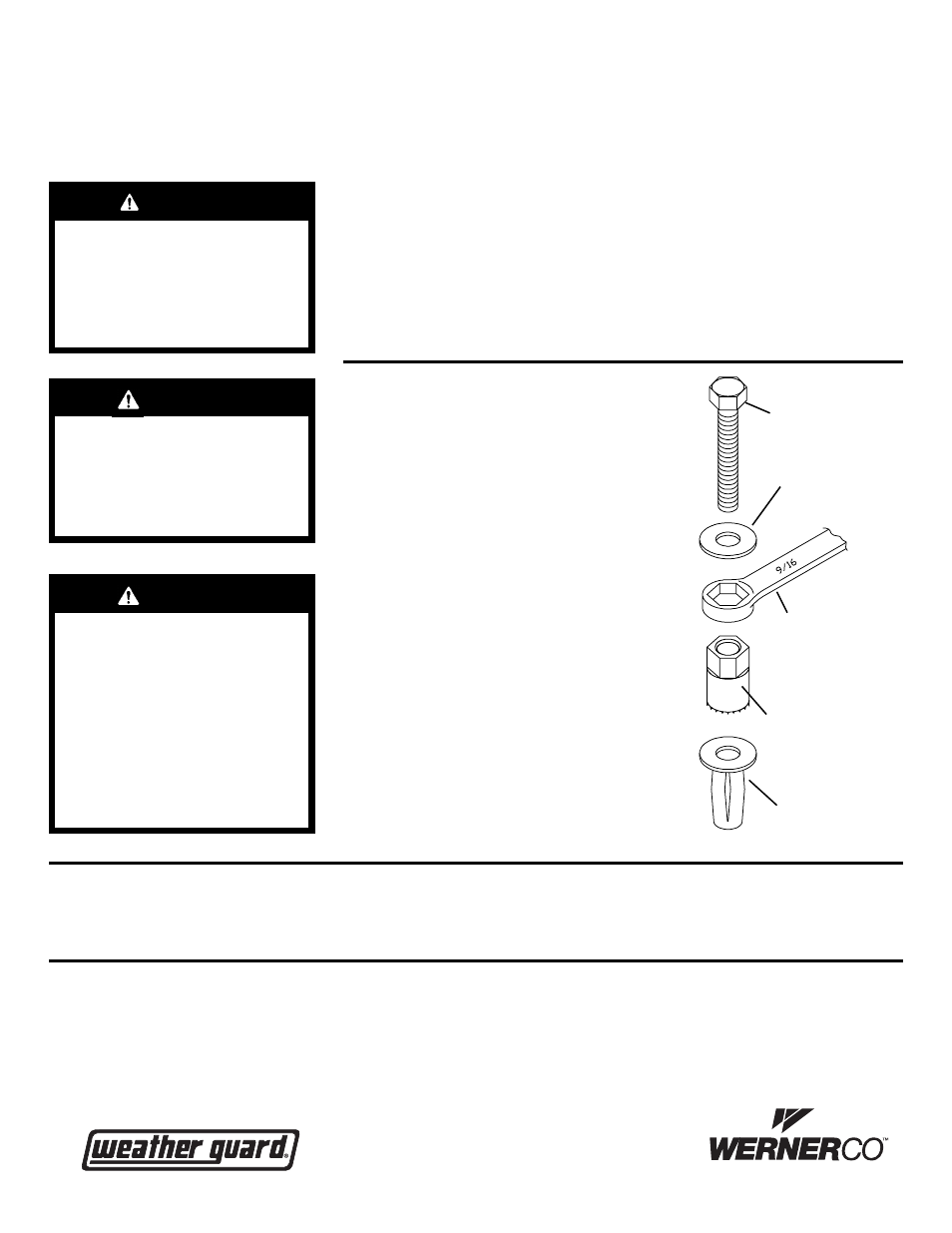

Install Blind Fasteners (see Blind

Fastener installation instructions be-

low), then bolt the box to the floor.

Black

Oxide

Bolt

Flat

Washer

9/16”

Wrench

Installation

Tool

Blind

Fastener

Place a drop of oil on the black oxide

bolt before assembling as shown on

right. Place the Blind Fastener in the

hole and use a 1/2” or 7/16” wrench to

tighten black hex bolt until the blind

fastener is fully seated. When setting

black hex bolt, it will start out hard.

As the Blind Fastener “bulbs” out it

will get easier, until it bottoms out or

sets. Make sure the Blind Fastener

and Installation Tool do not turn dur-

ing installation.
