WEATHER GUARD Model 9395-3-02 Secure Storage Shelf Unit, 5 Drawer, 62 in x 42 in x 16 in User Manual

Page 3

Part No. 24-0305 REV E 09/13

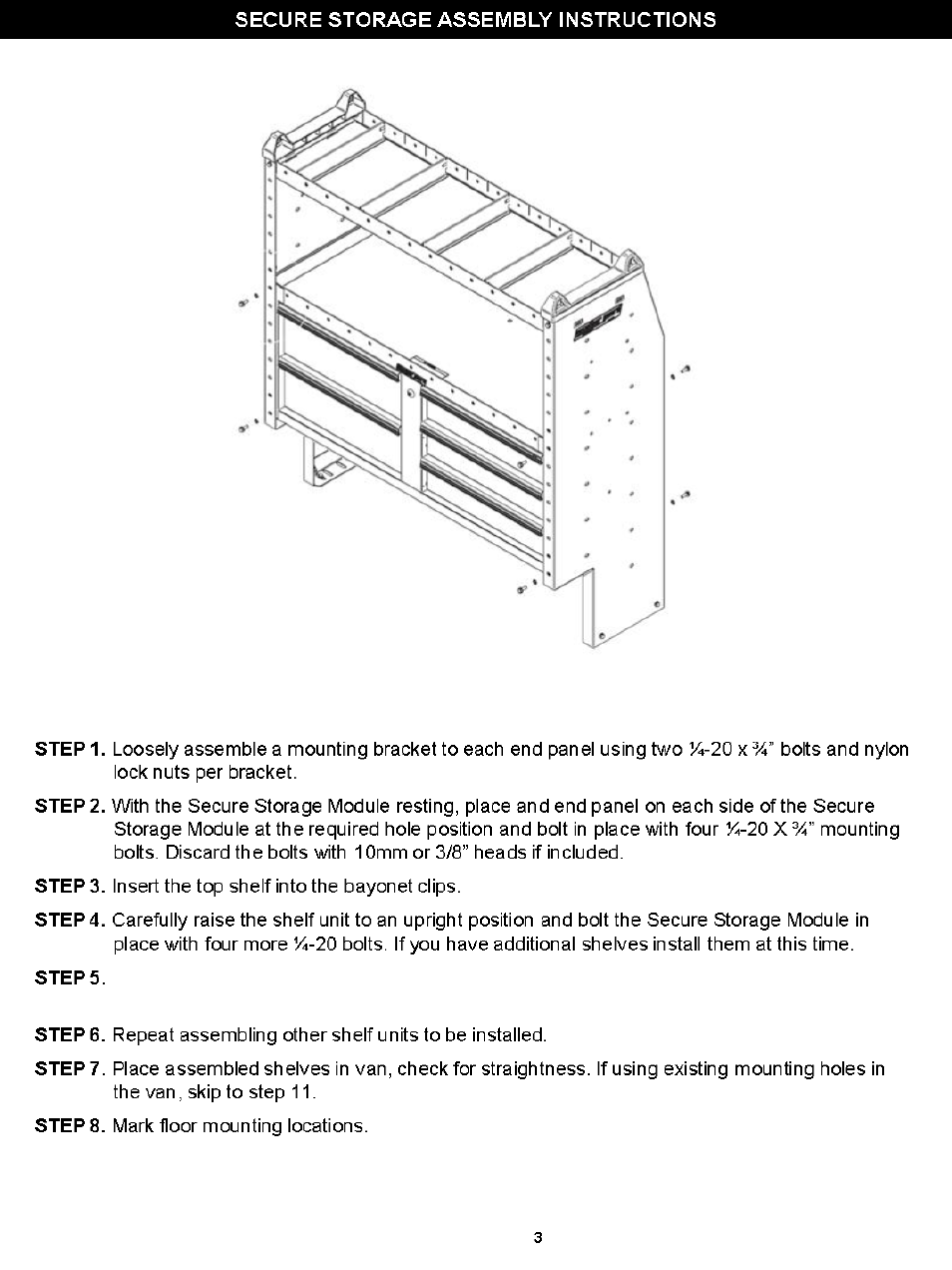

If using red end caps, place the end caps on the end panels and attach using ¼-20 hex washer head
mounting bolts, flat washers, and lock nuts. Use ¾” long bolts in front and 1-¼“ bolts in the back.

This manual is related to the following products:

Model 9390-3-02 Secure Storage Shelf Unit, Door, 62 in x 42 in x 16 in Model 9385-3-02 Secure Storage Shelf Unit, 5 Drawer, 46 in x 42 in x 16 in Model 9380-3-02 Secure Storage Shelf Unit, Door, 46 in x 42 in x 16 in Model 9045-3-02 Secure Storage Module, 5 Drawer, 42 in x 17 in x 16 in Model 9045-3-01 Secure Storage Module, 5 Drawer, 42 in x 17 in x 16 in Model 9040-3-01 Secure Storage Module, Door, 42 in x 17 in x 16 in Model 9992-3-01 Top Shelf Unit, 13 in x 42 in Model 9376-3-01 Adjustable 4 Shelf Unit, 60 in x 60 in x 13 in, 2 boxes Model 9375-3-01 Adjustable 4 Shelf Unit, 60 in x 52 in x 13 in, 2 boxes Model 9374-3-01 Adjustable 4 Shelf Unit, 60 in x 42 in x 13 in, 2 boxes Model 9373-3-01 Adjustable 4 Shelf Unit, 60 in x 36 in x 13 in, 2 boxes Model 9366-3-02 Heavy Duty Adjustable 4 Shelf Unit, 62 in x 60 in x 16 in, 2 boxes Model 9365-3-02 Heavy Duty Adjustable 4 Shelf Unit, 62 in x 52 in x 16 in, 2 boxes Model 9364-3-02 Heavy Duty Adjustable 4 Shelf Unit, 62 in x 42 in x 16 in, 2 boxes Model 9363-3-02 Heavy Duty Adjustable 4 Shelf Unit, 62 in x 36 in x 16 in, 2 boxes Model 9356-3-01 Adjustable 3 Shelf Unit, 46 in x 60 in x 13 in, 2 boxes Model 9355-3-01 Adjustable 3 Shelf Unit, 46 in x 52 in x 13 in, 2 boxes Model 9354-3-01 Adjustable 3 Shelf Unit, 46 in x 42 in x 13 in, 2 boxes Model 9353-3-01 Adjustable 3 Shelf Unit, 46 in x 36 in x 13 in, 2 boxes Model 9346-3-02 Heavy Duty Adjustable 3 Shelf Unit, 46 in x 60 in x 16 in, 2 boxes Model 9345-3-02 Heavy Duty Adjustable 3 Shelf Unit, 46 in x 52 in x 16 in, 2 boxes Model 9344-3-02 Heavy Duty Adjustable 3 Shelf Unit, 46 in x 42 in x 16 in, 2 boxes Model 9343-3-02 Heavy Duty Adjustable 3 Shelf Unit, 46 in x 36 in x 16 in, 2 boxes Model 9336-3-02 Heavy Duty Adjustable 2 Shelf Unit, 36 in x 60 in x 13 in, 2 boxes Model 9334-3-02 Heavy Duty Adjustable 2 Shelf Unit, 36 in x 42 in x 13 in, 2 boxes Model 9333-3-02 Heavy Duty Adjustable 2 Shelf Unit, 36 in x 36 in x 13 in, 2 boxes Model 9266-3-01 Heavy Duty Tapered End Panel Set 62 in x 16 in x 1-1/2 in Model 9264-3-01 Heavy Duty Tapered End Panel Set 46 in x 16 in x 1-1/2 in Model 9236-3-01 Tapered End Panel Set 60 in x 13 in x 1-1/2 in Model 9234-3-01 Tapered End Panel Set, 46 in x 13 in x 1-1/2 in Model 9233-3-01 Heavy Duty Adjustable End Panel Set, 36 in x 13 in x 1-1/2 in Model 9206-3-01 STARTER End Panel Set, 60 in x 16 in x 1-1/2 in Model 9204-3-01 STARTER End Panel Set, 44 in x 16 in x 1-1/2 in Model 9203-3-01 STARTER End Panel Set, 34 in x 13 in x 1-1/2 in Model 9196-3-01 Heavy Duty Adjustable 4 Shelf Set, 60 in x 16 in Model 9195-3-01 Heavy Duty Adjustable 4 Shelf Set, 52 in x 16 in Model 9194-3-01 Heavy Duty Adjustable 4 Shelf Set, 42 in x 16 in Model 9193-3-01 Heavy Duty Adjustable 4 Shelf Set, 36 in x 16 in Model 9186-3-01 Heavy Duty Adjustable 3 Shelf Set, 60 in x 16 in Model 9185-3-01 Heavy Duty Adjustable 3 Shelf Set, 52 in x 16 in Model 9184-3-01 Heavy Duty Adjustable 3 Shelf Set, 42 in x 16 in Model 9183-3-01 Heavy Duty Adjustable 3 Shelf Set, 36 in x 16 in Model 9176-3-01 Heavy Duty Adjustable 2 Shelf Set, 60 in x 13 in Model 9174-3-01 Heavy Duty Adjustable 2 Shelf Set, 42 in x 13 in Model 9173-3-01 Heavy Duty Adjustable 2 Shelf Set, 36 in x 13 in Model 9166-3-01 Accessory Shelf, 60 in x 16 in Model 9165-3-01 Accessory Shelf, 52 in x 16 in Model 9164-3-01 Accessory Shelf, 42 in x 16 in Model 9163-3-01 Accessory Shelf, 36 in x 16 in Model 9156-3-01 Adjustable 3 Shelf Set, 60 in x 13 in Model 9155-3-01 Adjustable 3 Shelf Set, 52 in x 13 in Model 9154-3-01 Adjustable 3 Shelf Set, 42 in x 13 in Model 9153-3-01 Adjustable 3 Shelf Set, 36 in x 13 in Model 9136-3-01 Accessory Shelf, 60 in x 13 in Model 9135-3-01 Accessory Shelf, 52 in x 13 in Model 9134-3-01 Accessory Shelf, 42 in x 13 in Model 9133-3-01 Accessory Shelf, 36 in x 13 in Model 9116-3-01 Accessory Shelf, 60 in x 10 in Model 9115-3-01 Accessory Shelf, 52 in x 10 in Model 9114-3-01 Accessory Shelf, 42 in x 10 in Model 9113-3-01 Accessory Shelf, 36 in x 10 in Model 9109-3-01 STARTER 4 Shelf Set, 60 in x 16 in Model 9108-3-01 STARTER 4 Shelf Set, 52 in x 16 in Model 9107-3-01 STARTER 4 Shelf Set, 42 in x 16 in Model 9106-3-01 STARTER 3 Shelf Set, 60 in x 16 in Model 9105-3-01 STARTER 3 Shelf Set, 52 in x 16 in Model 9104-3-01 STARTER 3 Shelf Set, 42 in x 16 in Model 9103-3-01 STARTER 2 Shelf Set, 36 in x 13 in Model 9076-3-01 Adjustable 4 Shelf Set, 60 in x 13 in Model 9075-3-01 Adjustable 4 Shelf Set, 52 in x 13 in Model 9074-3-01 Adjustable 4 Shelf Set, 42 in x 13 in Model 9073-3-01 Adjustable 4 Shelf Set, 36 in x 13 in Model 9053-3-01 STARTER 3 Shelf Set, 36 in x 13 in
