ENGLISH

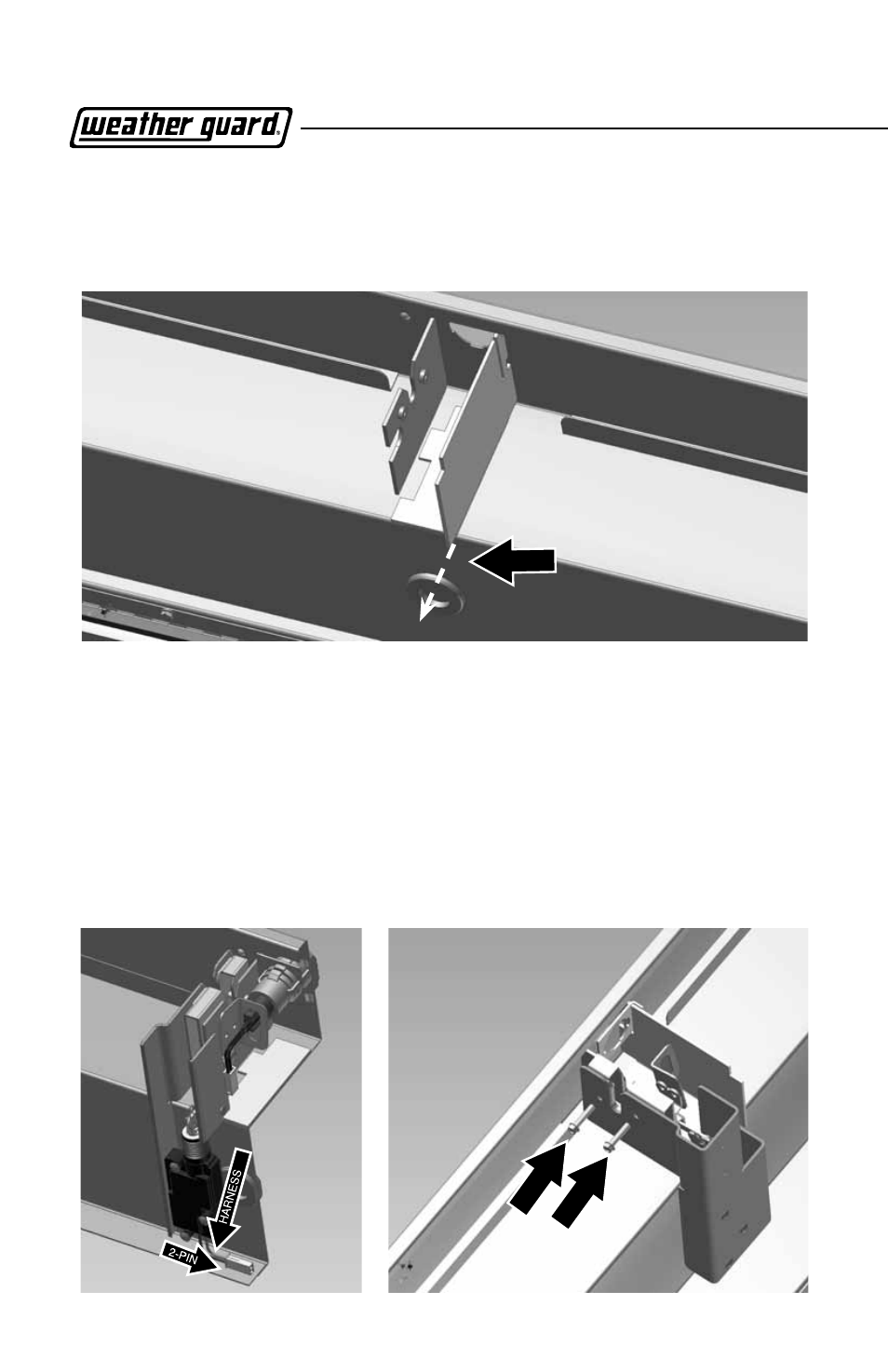

f. Feed side box harness into side box through rubber grommet, see
Figure 7.
g. Remove the wire ties from the actuator/latch bracket assembly
provided. Connect actuator 2-pin connector with the wire harness
2-pin connector located approximately 12” from the end of the
harness, see figure 8. Pull remaining 2-pin connector plug and
harness up through the inside of the assembly (to be connected
later). Position bracket assembly into place and fasten into place
loosely using the side cover plate screws from step A as shown in
Figure 9.
figure 7
figure 8 figure 9
