b. Remote Keyless Entry (RKE) “Remote Open” Mode
1. Remote FOB has 100 + foot range* from vehicle
2. Button #1 is used to open the saddle box.
3. Buttons 2 and 3 can be programmed to open optional lo-side
boxes (boxes and quick draw kits sold separately).
* To optimize signal strength keep the FOB from direct contact
with cell phones and other similar items which can cause signal
interference.

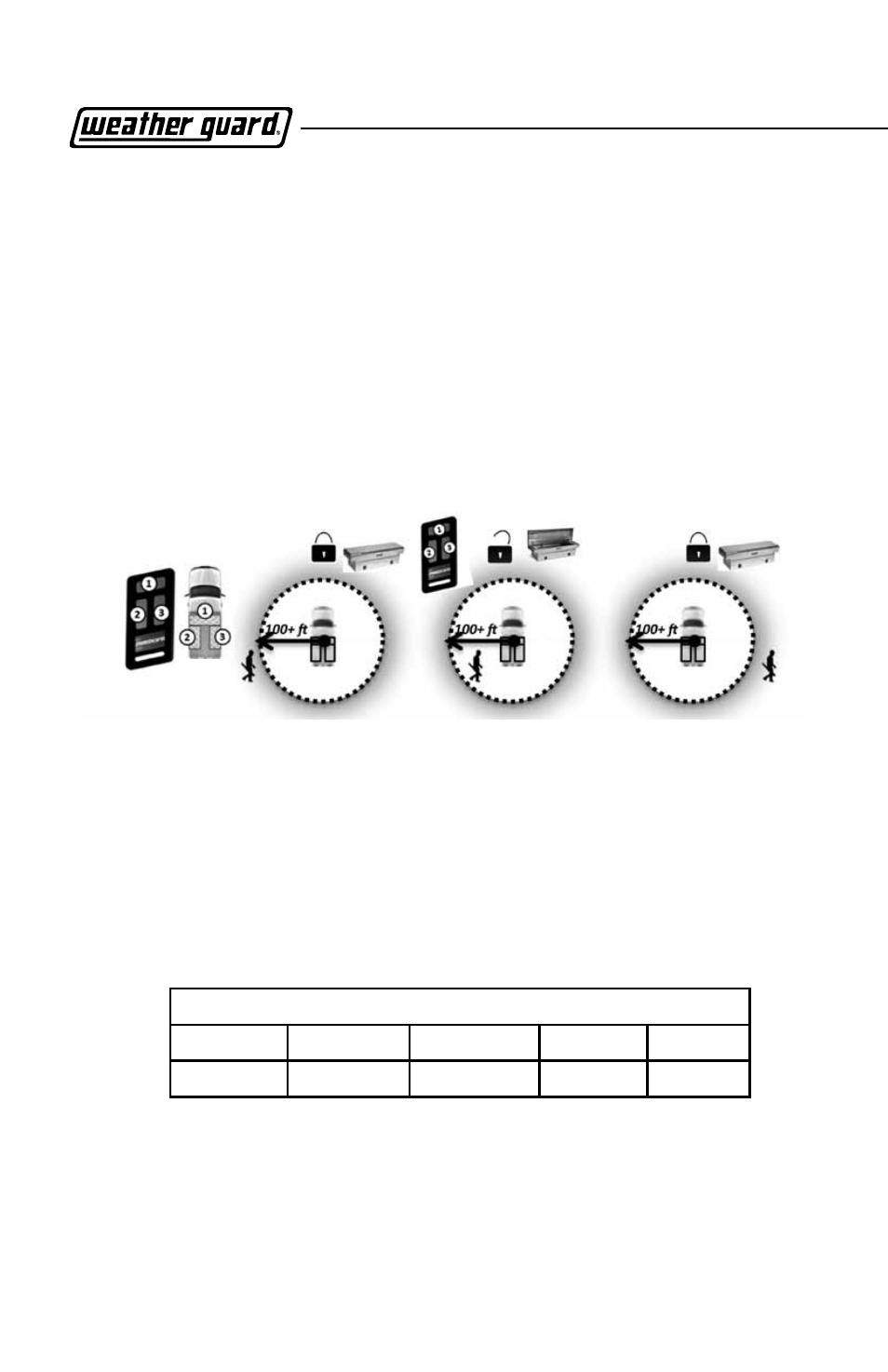

figure 15
VIII. pairing the fOB to the QuickDraw System
The QuickDraw FOB comes pre-paired to the system module.
Repairing may be required in the follow scenarios:
a. Additional FOBs are desired (up to 10 total per brain box)
b. Lost or stolen FOB (all systems FOBs must be re-paired at the
same time) to program a FOB to the QuickDraw system:
1. Ensure system module dip switches are in correct position
Factory Settings
DIP 1 2 3 4
Position OFF OFF ON OFF
2. Enter “Learning Mode” by locating and programming button 3x
until red LED activates (see Figure 16)
4. Press Button 1 on the QuickDraw FOB, the LED indicator will
flash and then remain solid
5. The FOB has now been paired
6. System will automatically exit Learning Mode within 30 seconds
