- NOTICE -
Any modification or unintended use of this product shall immediately void all manufacturer’s warranties.
Manufacturer disclaims all liability for injuries to persons or property resulting from any modification to, or
unintended use of this product.
INSTALLATION PROCEDURE USING BLIND FASTENERS
WARNING
Prior to drilling, so as not to
cut or puncture fuel tanks, fuel
lines, brake lines, electric
wires, etc., check under vehi-
cle for locations.
13. Stand the box upright and turn the “J” bolts to the side so they won’t inter-
fere when placing the box on the bed of the truck. Set the box in place on the
truck bed.
NOTE 2: When placing the box back in position, if it was necessary to drill
a stake pocket, that "J" bolt will have to be held on an angle from the
underside of the box and guided into the hole in the stake pocket.
14. Fasten the Leg feet to the floor.
15. Turn the “J” bolts so they are under the lip of the bed. Pull the “J” Bolt up
until it contacts the lip of the bed. Push the Plastic Retaining Washer down,
using the Fender Washer, so the “J” Bolt is held in position. Tighten the Nylon
Lock Nut, making sure the “J” Bolt hook remains under the lip of the truck bed.

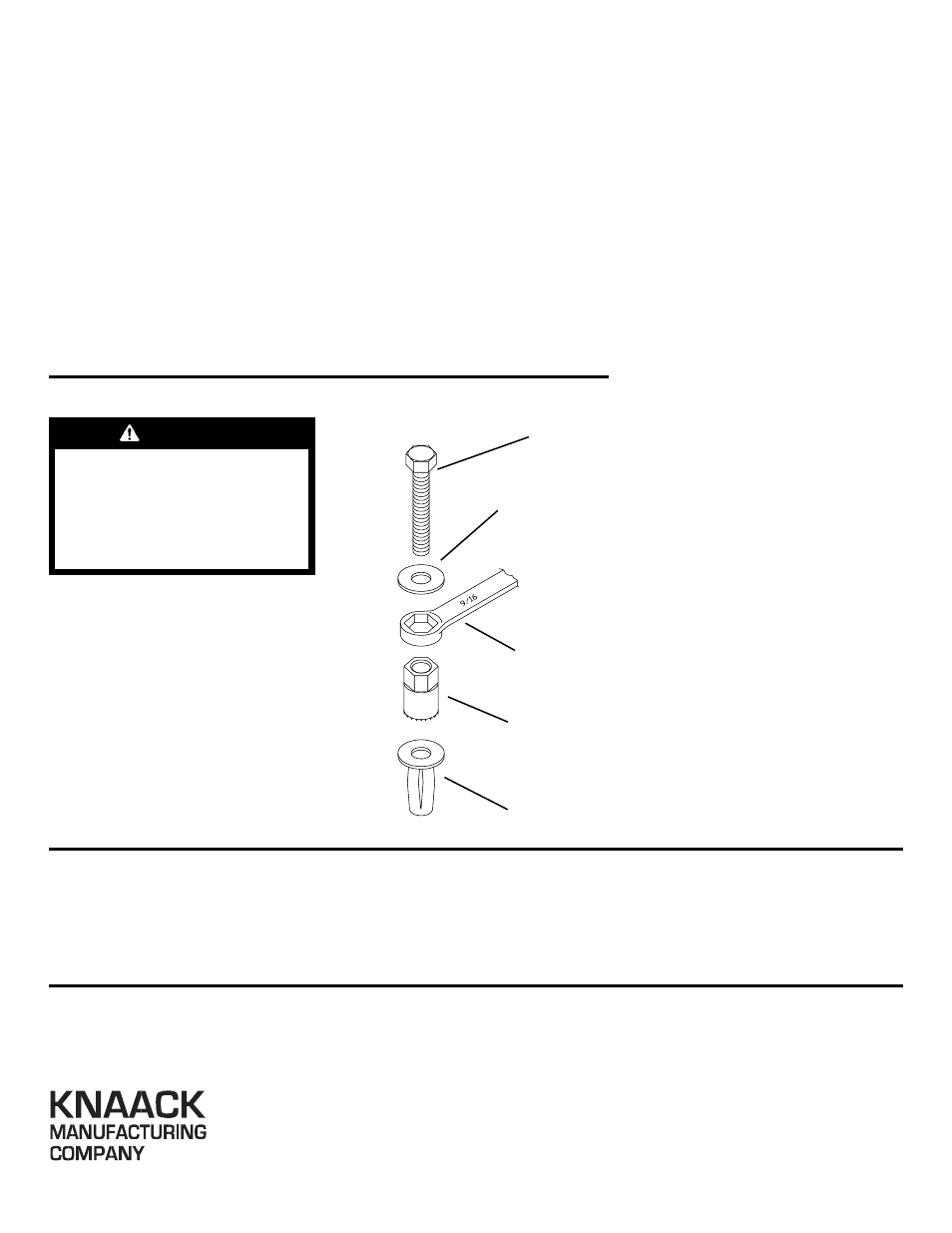

Black
Oxide
Bolt
Flat
Washer
9/16”
Wrench
Installation
Tool
Blind
Fastener
Place a drop of oil on the black oxide
bolt before assembling as shown on
right. Place the Blind Fastener in the
hole and use a 1/2” or 7/16” wrench to
tighten black hex bolt until the blind
fastener is fully seated. When setting
black hex bolt, it will start out hard.
As the Blind Fastener “bulbs” out it
will get easier, until it bottoms out or
sets. Make sure the Blind Fastener
and Installation Tool do not turn
during installation.
NOTE: Periodically check the tightness of "J" bolts to insure proper
attachment.
