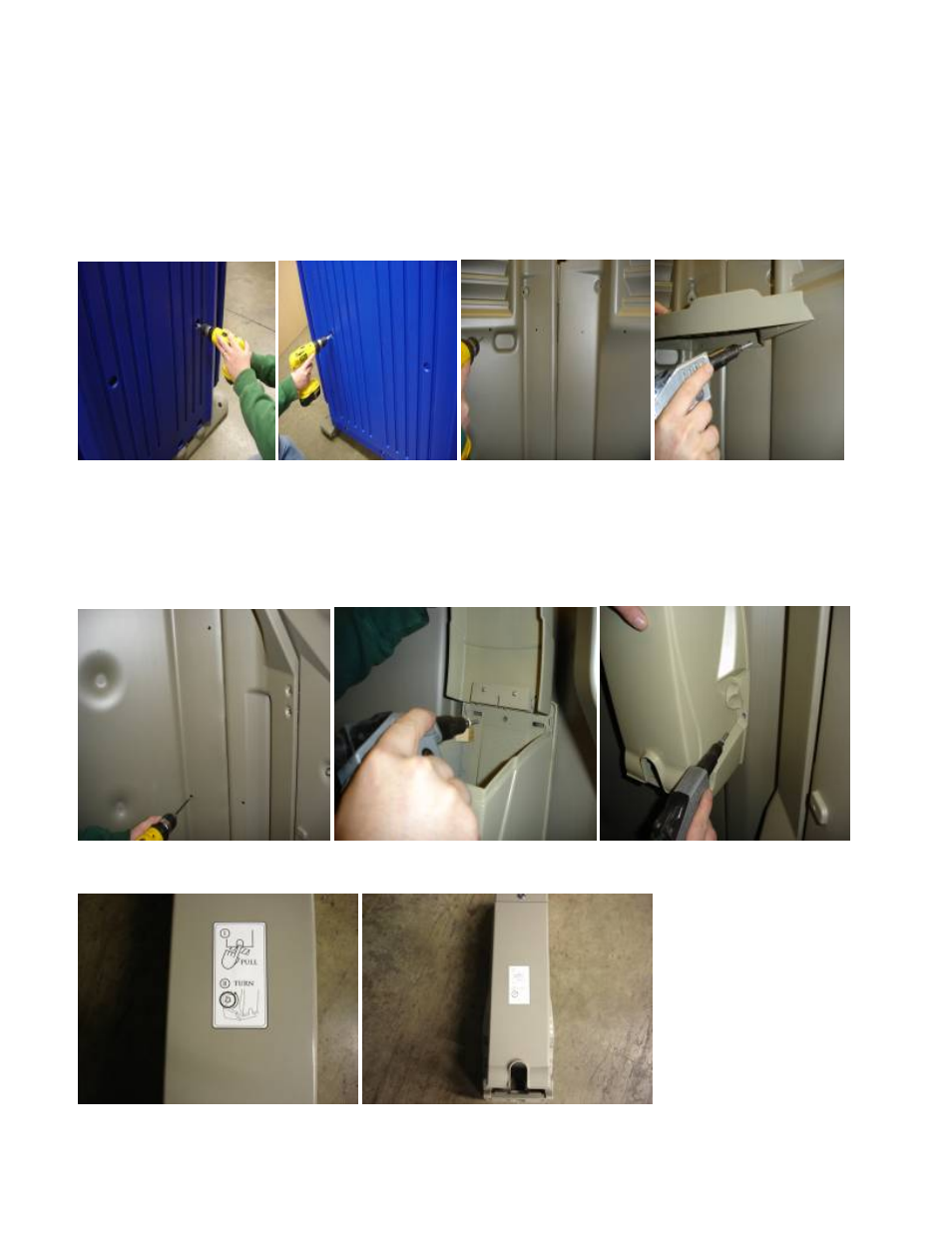

17. Fasten side panels to tank: from outside of unit using screws #14 x 1-1/2" #13860 (2 total,
1 per side) near round recessed areas near the back of both side panels. (See pic. X)
18. Fasten rear panel to tank: from outside unit using screws #14 x 1-1/2" #13860 (2) in pre-drilled holes in
round recessed areas of rear panel. (See pic. Y)
19. Install shelf: drill out dimples (4) located on inside of unit in right rear corner of unit [about 2/3 the way up from
the base on rear / right side panels] using a # 10 Drill bit "be careful not do drill through outside wall of panels".
(See pic. Z) Secure shelf #18857 to panels using rivets Avdel silver #17436 (4). (See pic. AA)
X Y Z AA
20. Install toilet paper dispenser [ if unit has optional #18955 Paperguard 4 roll vertical ] : drill out dimples
(3) located on inside of unit in right front corner of unit [about 1/2 the way up from the base on right door frame /
right side panel] using a # 10 Drill bit "be careful not do drill through outside wall of front / panel". (See pic. BB)
Secure 4 roll toilet paper holder #18955 to front / panel using rivet #17030 (1) on inside at top
of dispenser [toilet paper holder lid needs to be open]. (See pic. CC) Secure 4 roll toilet paper holder #18955
to front / panel using rivet #17030 (2 total, one per side) on outside near bottom of dispenser.
(See pic. DD)
BB CC DD
21. Install Decal on Paperguard 4 roll vertical: Decal toilet paper dispenser #19308 (1) centered on front of
toilet paper dispenser over round recess on dispenser. (See pics. EE & FF)
