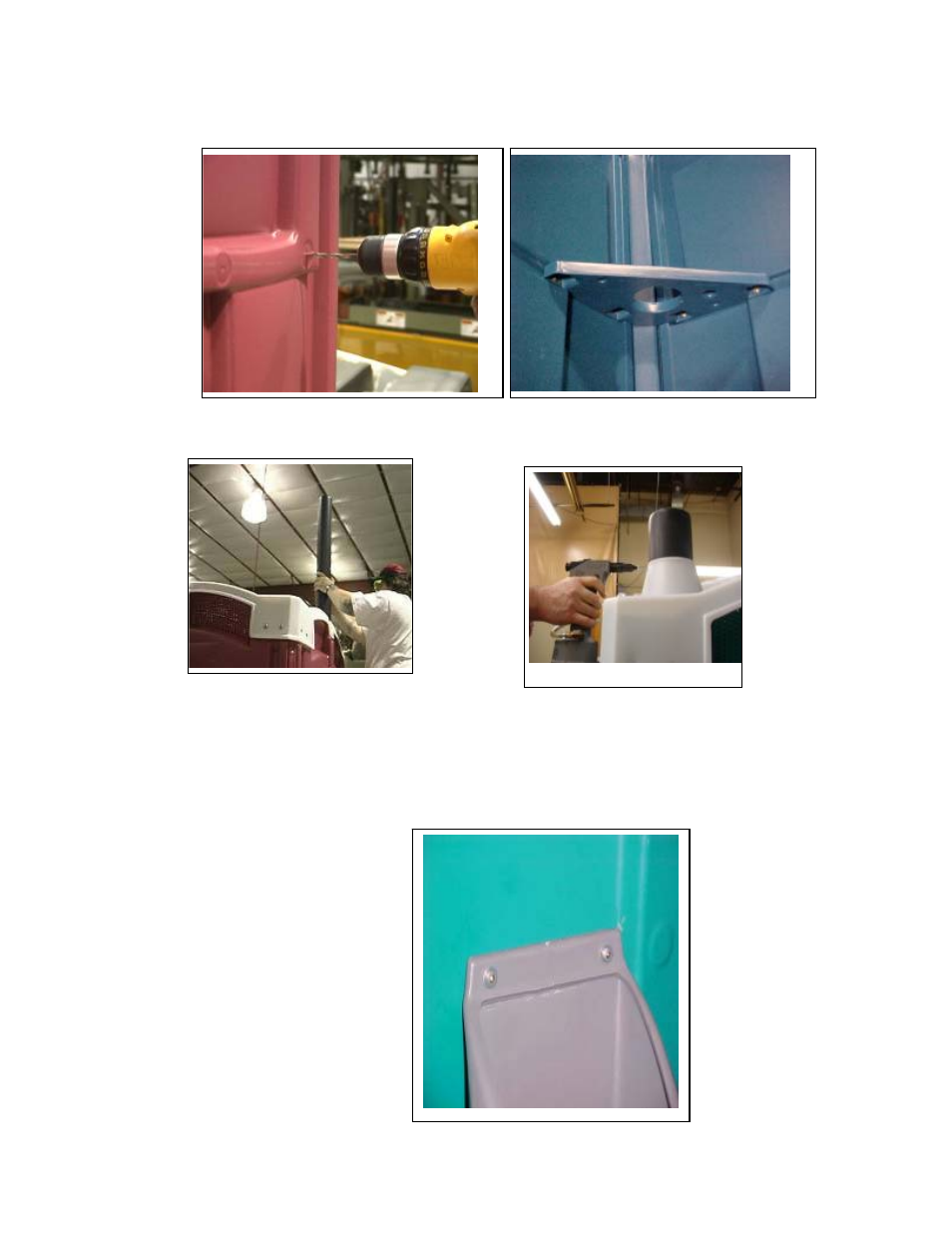

16. Place shelf (with vent hole) in left back corner. Drill out the (4) dimples in panel with a 3/16” drill bit
and through shelf. Fasten with Rivets, #68 AAL #11054 (8) and Washer, 3/16” #11315 (8). Washers
are located on the inside. Repeat with shelf on right back corner.
17. Insert vent tube through roof and shelf into the tank recess. (see Fig. A) Using a 3/16” Drill Bit Drill
hole at location shown (see Fig. B). Fasten with Rivet, Silver Long #18755 (1).
A B
18. Slide the urinal into hole in the tank. Push down on urinal so it is perpendicular with the floor. Align
urinal against wall and parallel to wall rib. Drill (2) 3/16” holes through the urinal and side wall.
Fasten the urinal with Rivets, #68 AAL #11054 (2) and Washer, 3/16” #11315 (2). Washers are
located on the inside of the unit.
