PN 21337 REV B - 7 - 3-16-12

Install Handrails Left & Rear Panels: “WITH NO TEMPLATE: MEASURE / MARK MOUNT HOLE LOCATIONS ON PANEL”
[OLD STYLE PANELS WITH NO DRILL POINTS FOR PLASTIC HANDRAILS / IGNORE EXSISTING DIMPLES]:

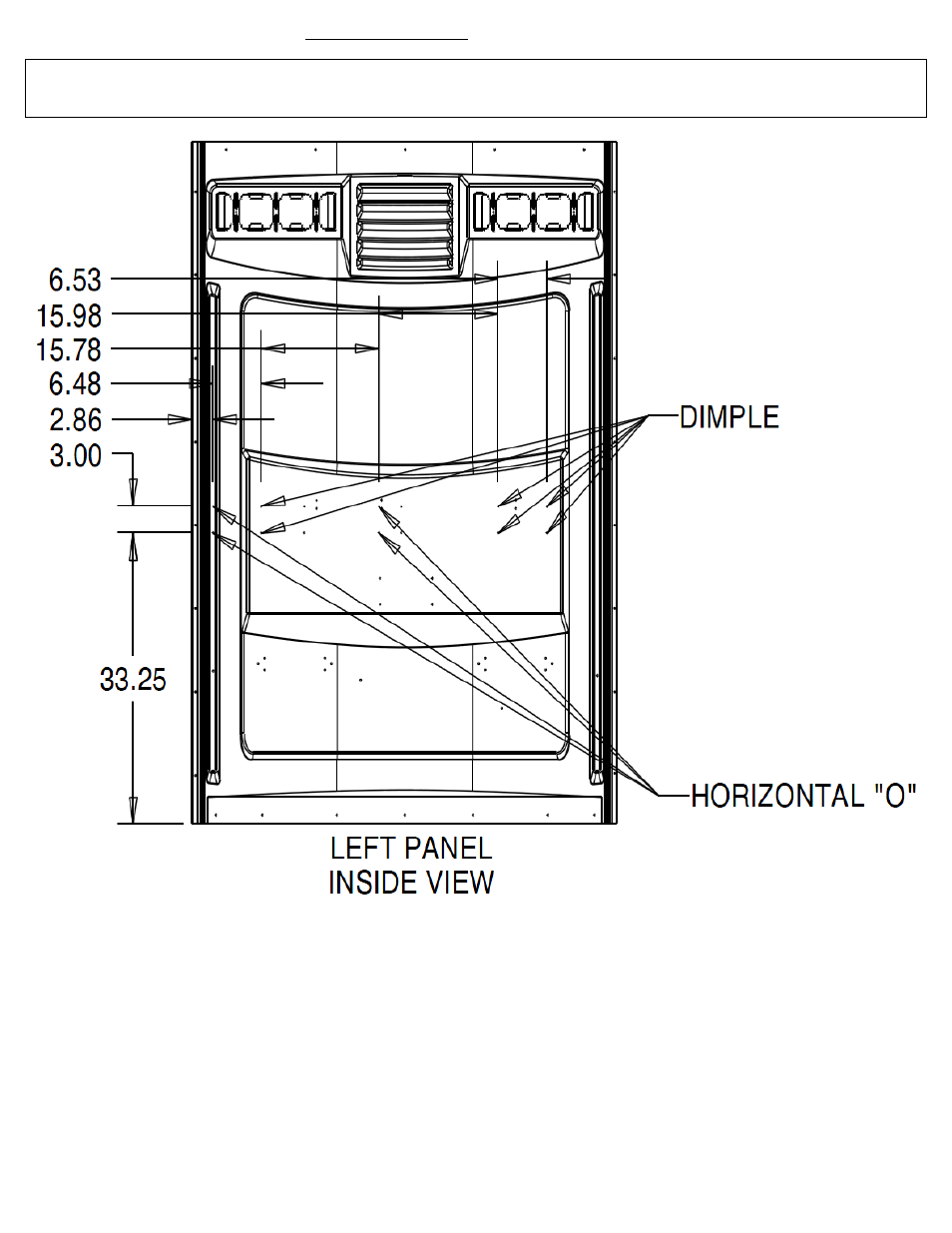

25) Mark locations on left panel “OLD STYLE PANEL WITH NO DRILL POINTS FOR PLASTIC HANDRAILS” shown below. Drill at marks
using #10 (.193”) [5 mm] Drill bit. Rivet handrail to left panel following steps 19) & 20) NOTE: “NEW STYLE PANEL WILL HAVE 10
DRILL POINTS FOR PLASTIC HANDRAILS AT LOCATIONS SHOWN BELOW”
