Satellite Freedom - Manual (Page 12)

PN 21337 REV B - 12 - 3-16-12

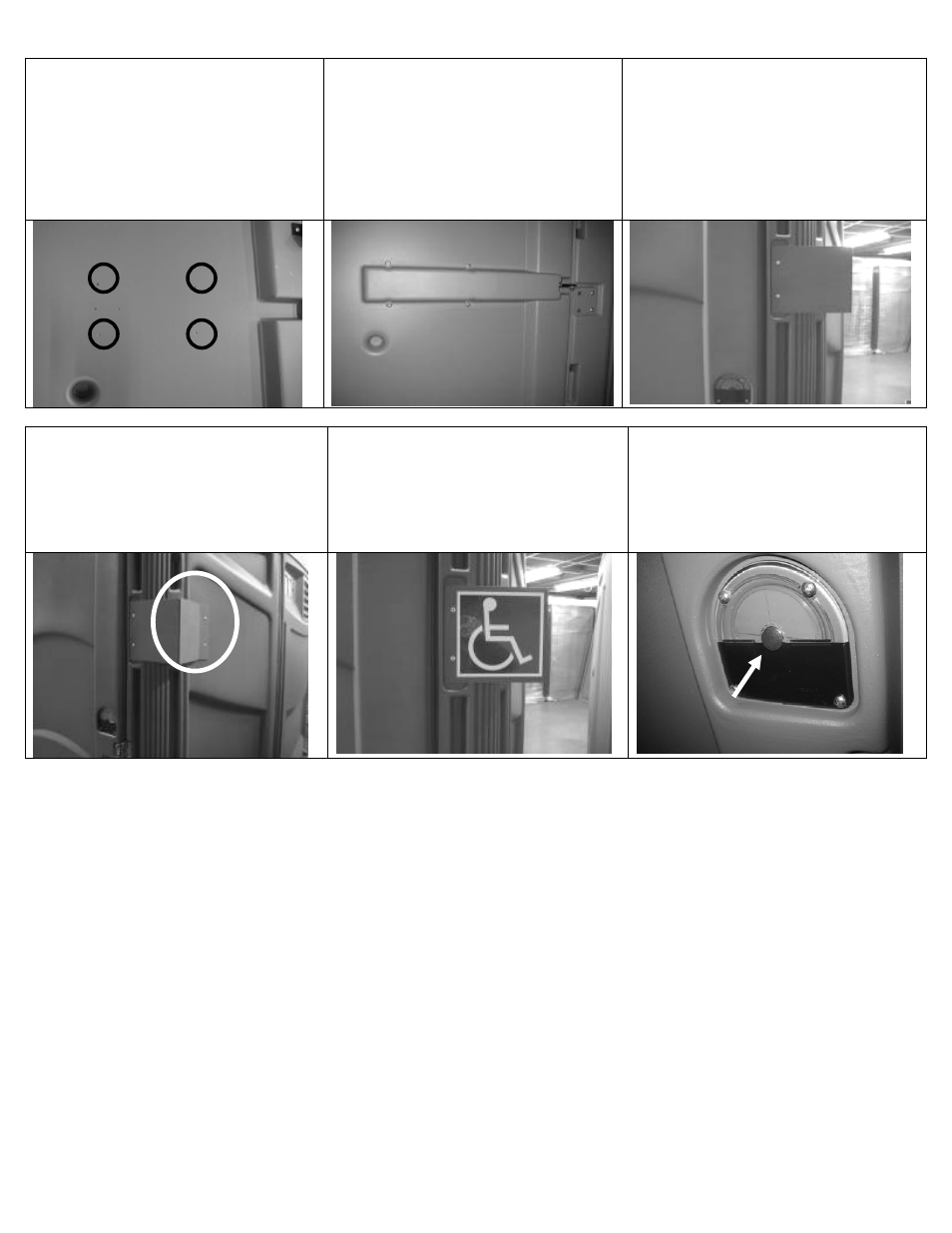

Install Door Closure / Door closure cover: Install the Decal Bracket & Decal:
51) Drill at 4 dimple locations on inside
of door using a #10 (.193”) [5 mm] Drill
bit (be careful not to drill through
outside wall of door).
52) Place door closure cover PN 21314
over door closure. Attach cover to door
with (4) rivets PN 17436 53) Place decal bracket PN 21308 flat
side centered in recess on right facing
with left edge against left edge of recess,
with angled side towards rear of unit.
Transfer drill through holes in front of
bracket using #10 (.193”) [5 mm] Drill bit.
Rivet bracket to facing with (2) rivets PN
10812 on outside of unit & (2) washers
PN 11315 on inside of unit.
Install the Decal Bracket & Decal:
54) Rivet rear of decal bracket (angled)
to right facing. Transfer drill through
holes in bracket into right facing using
#10 (.193”) [5 mm] Drill bit. Rivet bracket
to facing with (2) rivets PN 11027 on
outside of unit & (2) washers PN 11315
on inside of unit.
55) Place Decal PN 10394 on front of
decal bracket as shown. 56) Install indicator plug 10161 in
indicator on outside of door.
