PN 40112 REV C 6-28-11 6
NOTICE: TEMPORARY CHANGE, SEE ADDENDUM.

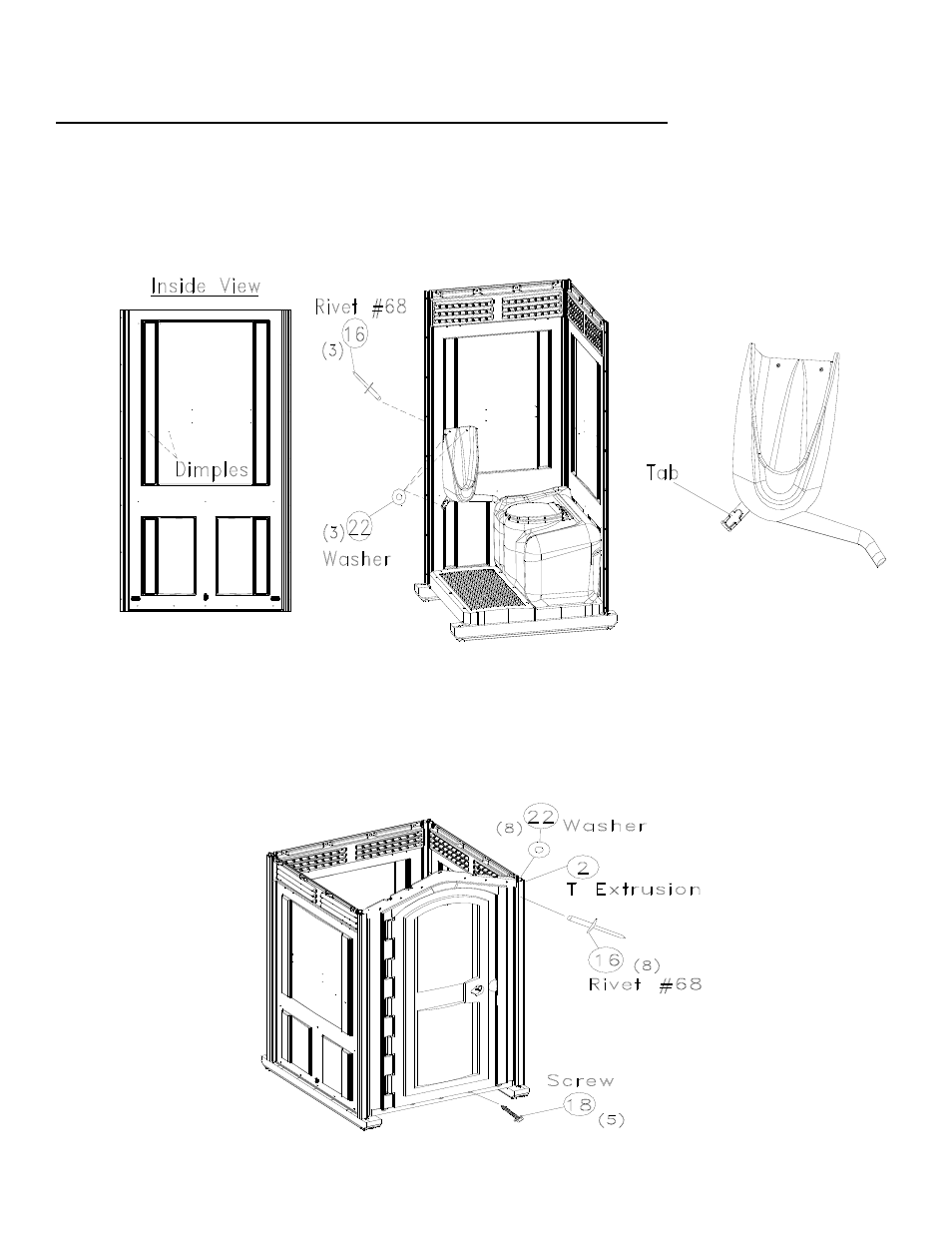

Step 5:
Assemble Urinal to unit:
1. Using 13/64” Drill Bit, Drill (2) holes in side panel at dimples.
2. Insert Urinal Spout in tank urinal hole.
3. Fasten with (2) rivets and (2) washers. Washers are installed on inside of Urinal.
4. Bend Fastening tab back to meet panel. Transfer drill through tab and panel. Fasten urinal tab with (1)
rivet and (1) washers. Washer is installed on inside of Urinal.
Step 6: Assemble front door and frame using:
1. Install T Extrusions between the front and panel. Fasten front to panels with (8) Rivets and (8)
washers. Make sure that the rivets heads are on front side and washers are on the panel side.
2. Repeat on other side.
3. Fasten Front to base using (5) lag screws. Make sure the door frame bar is flush or below floor.
Align center mounting hole in front with scribe line on base
