Satellite Global (T Extrusion) - Manual (Page 5)

PN 40112 REV C 6-28-11 5
NOTICE: TEMPORARY CHANGE, SEE ADDENDUM.
Step 3:
Fasten Tank to Unit:
1. Position tank against the back wall and attach the tank starting with each side. Have (1) person stand
in tank while lagging panels to tank. This ensures that the tank is in the correct position. Tighten
screws until rubber washer begins to flatten.
BE CAREFUL NOT TO OVER TIGHTEN SCREWS.

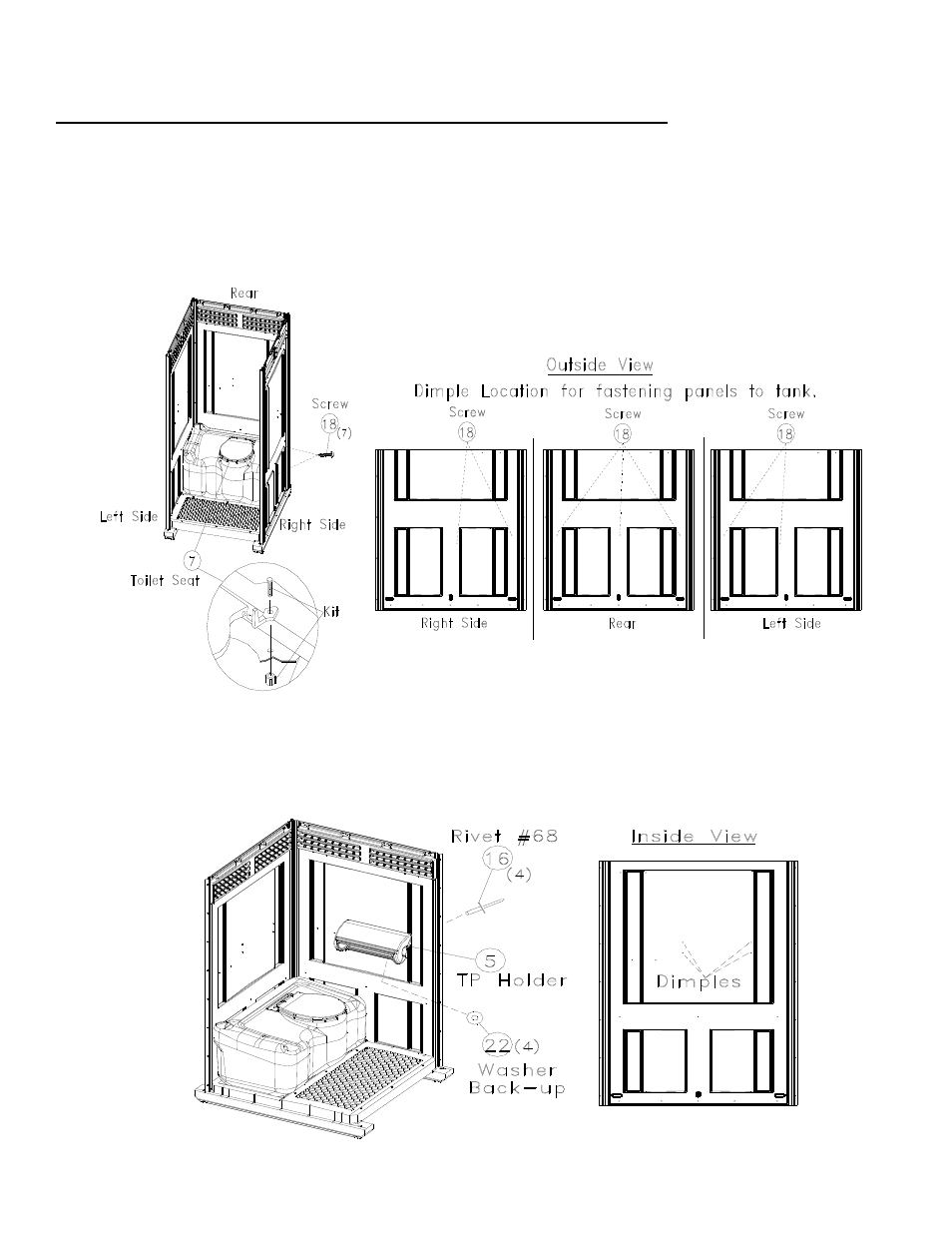

2. See location chart below for screw location. Note: Do not use dimples if they don’t match chart
locations.
3. Fasten toilet seat.
Step 4: Assemble Toilet Paper Holder to unit:
1.
Using 13/64” Drill Bit, Drill out the (2) dimples on side panel as shown. If back (2) dimples do not
line up, use holes in paper holder as guides to drill holes through panel.
2.
Fasten Toilet Paper Holder to unit using (4) Rivets and (4) washers. Back-up washers are installed on
inside of paper holder.
