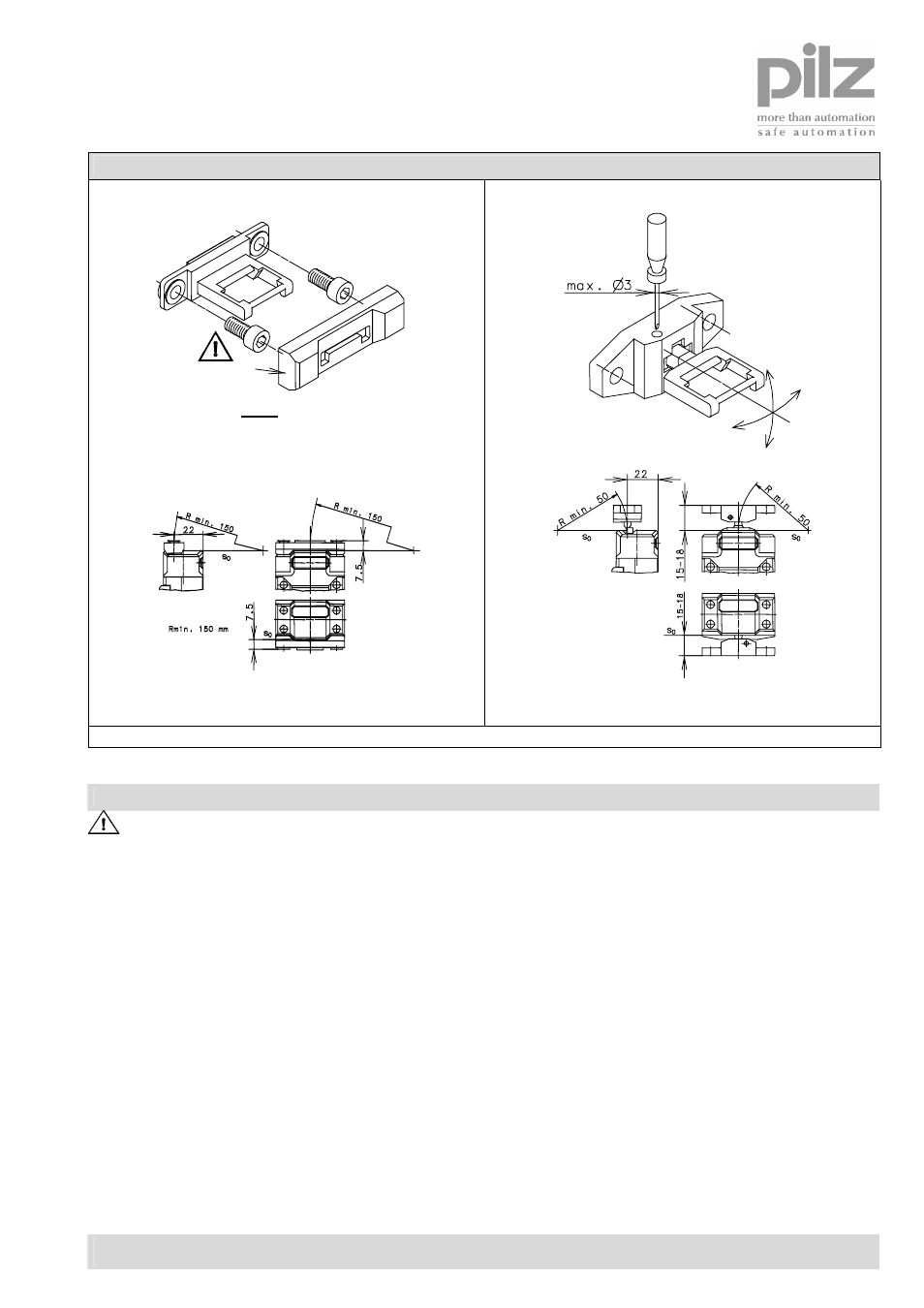

Actuator
PSEN me2AS PSEN me2AR
protective cover
Actuating forces :
10 N – 100 N
The protective cover must be latched onto the actuator
after mounting. The protective cover prevents the
actuator from being easily dismantled and also provides
protection against overtravel of the actuator in case of
not proper installed mechanical end stops for the guard.
Minimum radii reference to a point of rotation on
enclosure top edge S
0
Rmin. in adjusting direction 50 mm
Actuating forces :
10 N and 30 N
Rmin. in adjusting
direction 50 mm
Minimum radii reference to a point of rotation on
enclosure top edge S
0
Mounting dimension for all actuators: 40 mm with M5- screws acc. DIN 912!
Installation
Installation by trained and qualified personnel only!
To mount the switch gear 2 screws M5 shall be used.
Actuator PSEN me2AS and PSEN me2AR:
The user shall make sure that the actuator is form-fit mounted. The actuator mounting should not be solvable with
simple tools. The mounting requires 2 screws M5 acc. DIN 912.
The switch and the actuator shall be aligned during installation in such a way that the maximum permitted
misalignment with closed safety guard, which is stated in the drawing, will not be exceeded. The actuator PSEN
me2AR has to be adjusted in such a way that the actuator can be inserted into the switch head without significant
lateral forces.
The mounting position is any desired but shall support inspection and replacement if necessary by qualified
personnel. Choose such a mounting position that no foreign parts seep into the opening of the actuating device.
The rated degree of protection (IP-Code) of the switch applies only with closed cover lid and when an at least evenly
matched cable gland with adequate cable is used.
The switches shall not be used as mechanical end stops.
