43

DVRT41Direct Vent Gas Fireplace

10006740

Optional Accessories Available

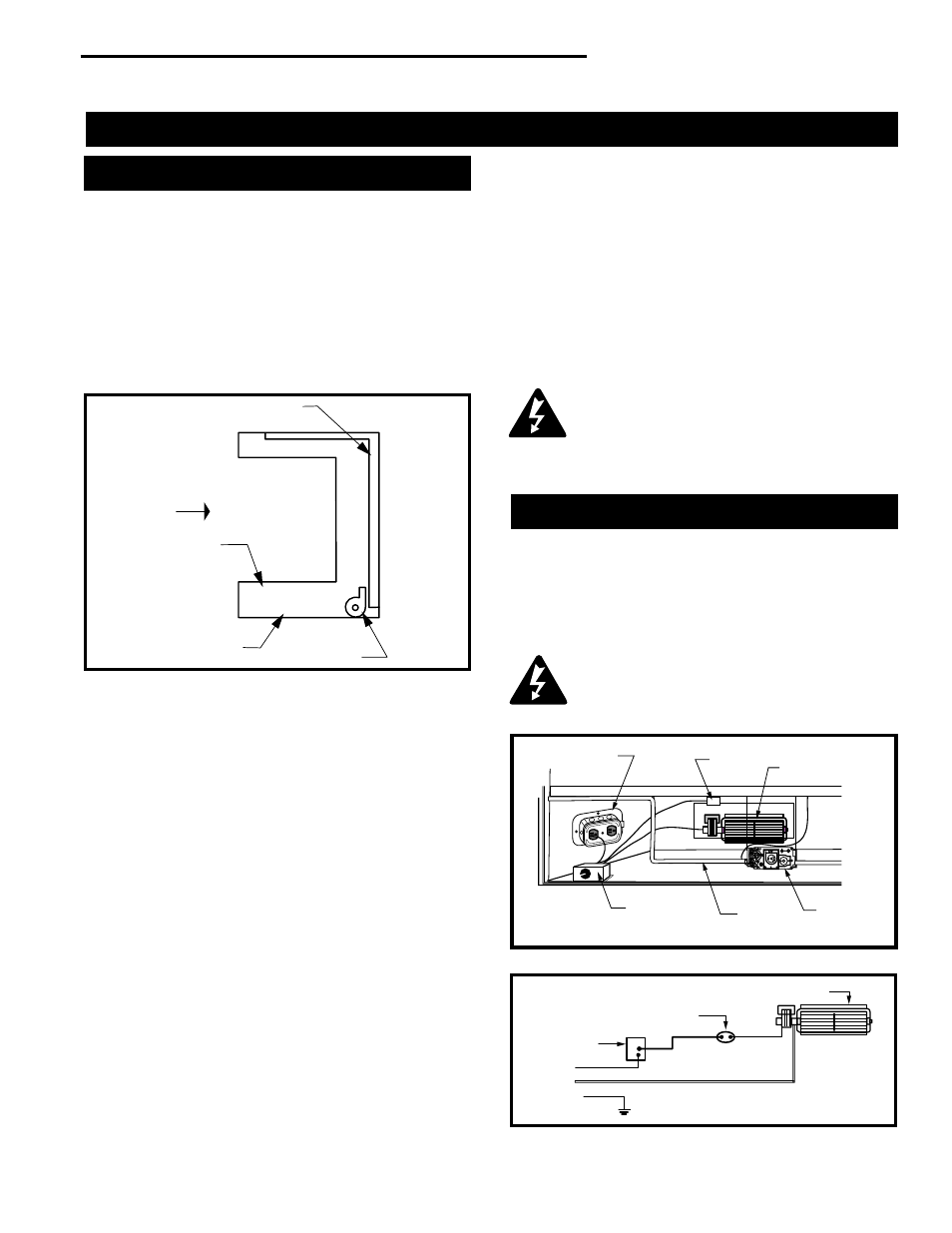

FK12 Fan Assembly

1. Open louvre assembly bottom.

2. Install FK12 fan in back of unit between hearth

supports. (Fig. 72)

3. Secure fan on velcro strips.

4. Power to the fan can be supplied by plugging the

supply lead into a conveniently located wall socket
or by using a hard-wired EB-1 connector box.

5. Be sure fan motor does not touch hearth supports.

FK24 Fan Assembly

Fan specifications: 120 volt, 60 Hz, .75 Amp.

This fan does not need regular maintenance, however
periodic cleaning is required. Check the area under the
control door and in front of the fan and wipe or vacuum
at least once a month during the operating season.
Should this fan require servicing, the power supply
must be disconnected.

The FK24 comes with the electrical cord attached.

1. Slide fan assembly from the left side into the fire-

place opening, line up mounting holes with screw
studs on back of fireplace and fasten with #10 - 24
hex nuts. (Fig. 73)

2. Install thermal sensor on bottom of firebox using

#10 - 24 hex nuts.

3. (Option A) - Place electronic fan speed control box

on bottom of fireplace base, lining up mounting
holes with screw studs. Fasten fan speed control
box with #10 - 24 hex nuts.
(Option B) - The speed control can be installed in
an electrical box at normal wall switch height for
convenient access.

4. The power supply may be connected in 2 ways:

Method A

Route the 6’ (1.8m) lead fitted to the unit to a con-
veniently located wall socket.

Method B

If the EB-1 receptacle box (Pt. #ZA1200) was
correctly connected when the unit was installed, the
fan lead can be directly plugged into the EB-1 plug
socket.

5. Whether wiring directly to the fan junction box

(Option A) or into the EB1 (electrical box, Option B)
first ensure cable is secured using box connector.

The fireplace, when installed must be
electrically connected and grounded in
accordance with local codes, with the
current CSA C22.1 Canadian Electrical
Code or for US installations, follow local
codes and the National Electrical Code,
ANSI/NFPA No. 70.

Hard (Direct) Wire Hook Up

First connect ground wire to ground stud located on the
base of either box. Black wire from supply should
connect to the variable speed switch. Alternate speed
switch wire connects to temperature sensor. Alternate
lead from sensor connects to fan. Alternate fan lead
connects back to the white supply wire. (Fig. 74)

Any electrical rewiring of this fan must
be completed by a qualified electrician.

Turn off all power before hook up.

HI

L O

O

FF

ON

O F F

P

IL

O

T

O

FF

E

A

PIL

OT

T

P

T

H

Electrical
Box

Heat
Sensor

Fan

Valve

Gas
Line

Fan Speed
Switch

Fig. 73 FK24 fan placement.

Fan Kits

Cold Air Box

Side View

Front of
Unit

Hearth Pan

Base Pan

FK12 Fan

FP1004

Fig. 72 FK12 Fan Kit placement.

Black

White
Ground

Fan

Temperature
Sensor

Speed
Control

FP1025

Fig. 74 FK24 fan wiring.
