4
DVRT41 Direct Vent Gas Fireplace
10006740
Ref. DVRT41
A 41” (1041mm)
B 37” (940mm)
C 36” (914mm)
D 24 ¹⁄₂ ” (622mm)
E 7” (178mm)
F 6” (152mm)
G 1
¹⁄₄
” (32mm)
H 19
¹⁄₂
” (495mm)
I 5 ¹⁄₂ ” (140mm)
J 25” (635mm)
K 5/8” (16mm)
L 10
³⁄₄
” (273mm)
M 2” (51mm)
N 7 ⁵⁄₈ ” (194mm)
O 1 ⁷⁄₈ ” (48mm)
P 7” (178mm) Dia.
Q 4” (102mm) Dia.
Framing Dimensions
R 41 ¹⁄₂ ” (1054mm)
S 41 ¹⁄₄ ” (1048mm)
T 19
¹⁄₂
” (495mm)
U 62
¹⁄₄
” (1581mm)
V 44” (1118mm)
W 31 ³⁄₄ ” (807mm)
Fireplace Dimensions (Installed as Top Vent)

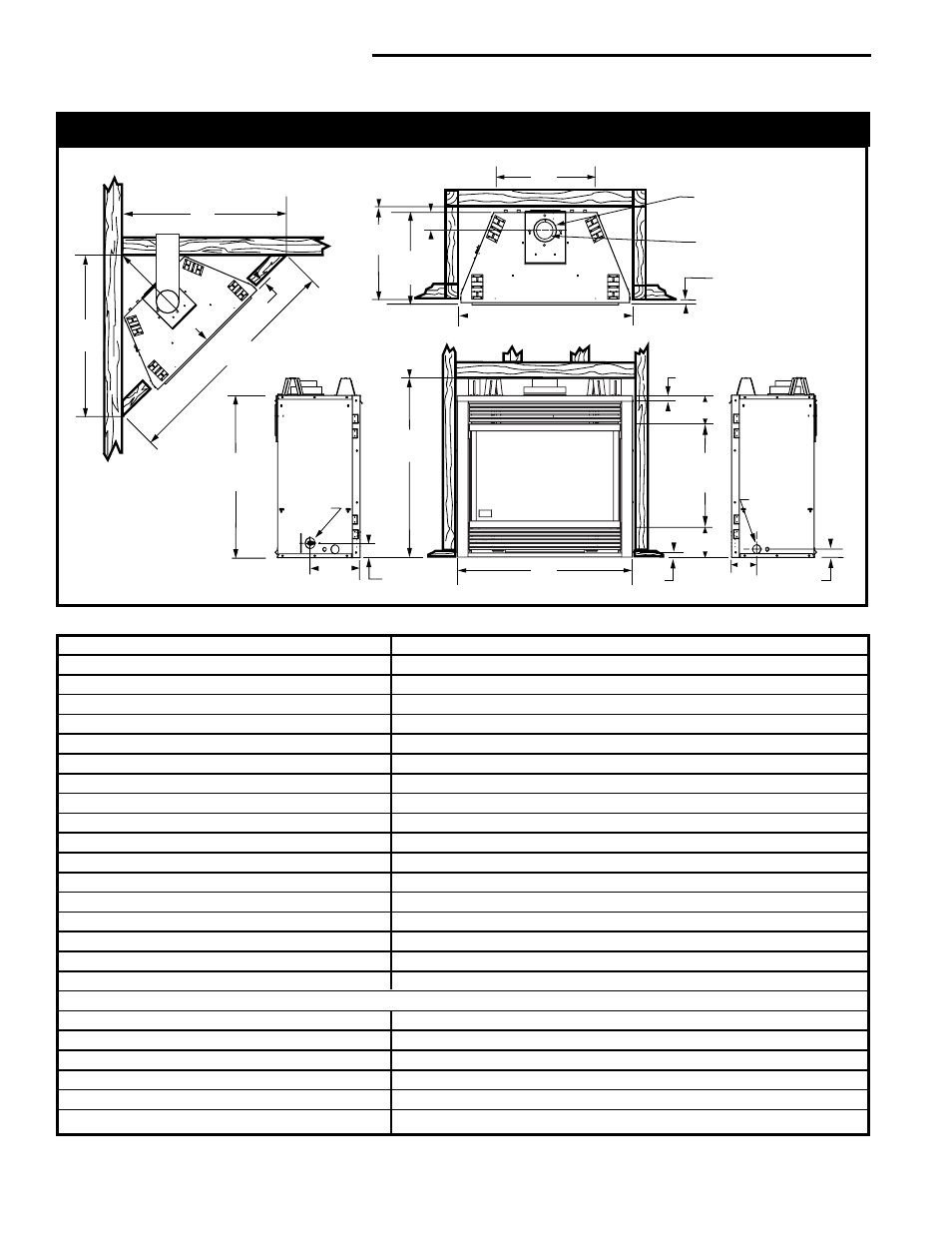

Fig. 2 Fireplace specifications and framing dimensions.
S - Rough Opening Width
Rough
Opening
Height
Electrical
Access
Rough
Opening
Depth
Gas Line
Access
V
V
W
K
U
T
H
I
J
P
Q
K
O
N
F
D
E
G
G
A
R
M
L
B
Recessed
Nailing Flange
