25
DVRT41Direct Vent Gas Fireplace
10006740
Flame Characteristics
It is important to periodically perform a visual check of
the pilot and the burner flames. Compare them to the
pictorials illustrated below. (Figs. 51, 52) If any of the
flames appear abnormal call a service person.

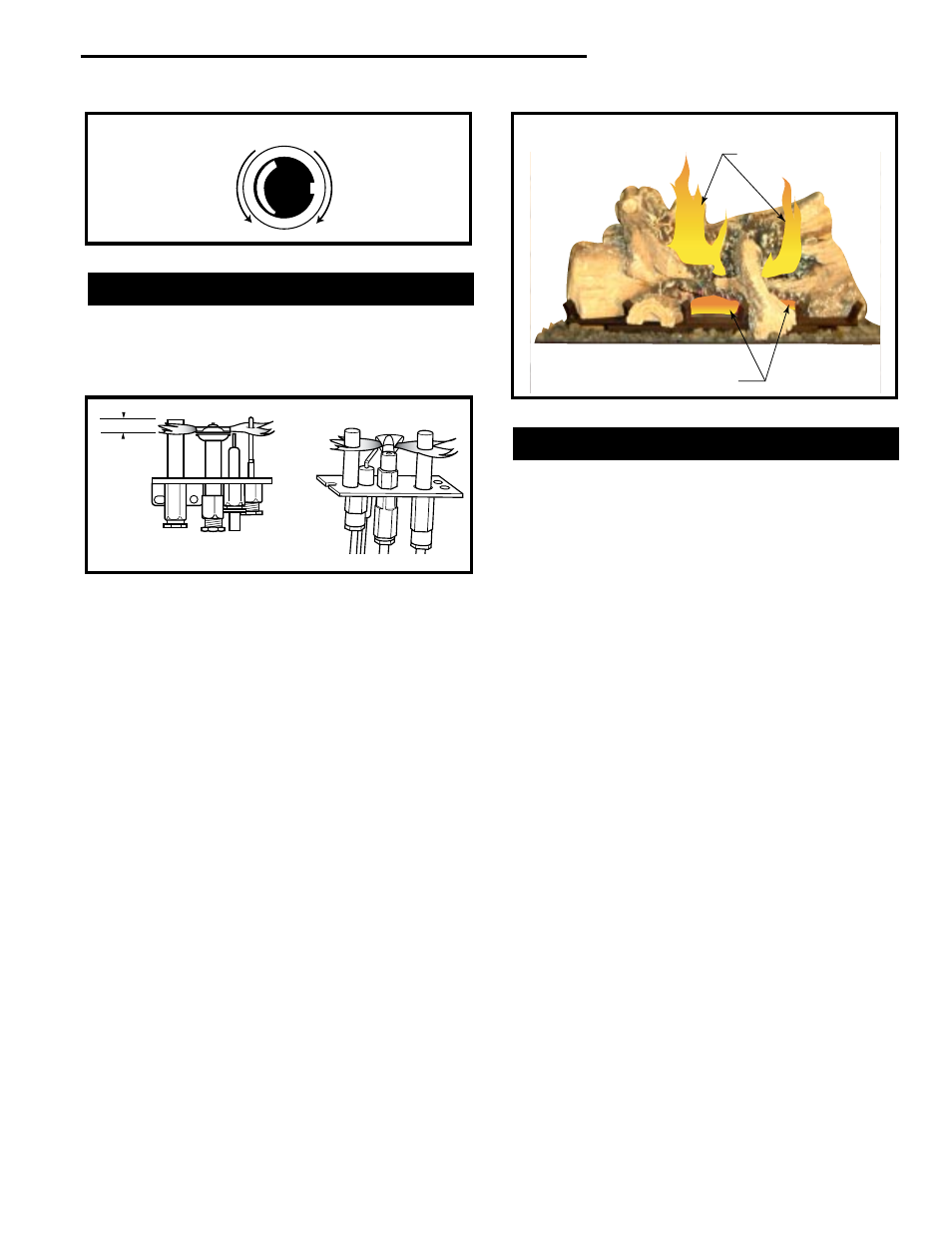

Fig. 50 Flame adjustment knob for SIT valve.
LO
HI
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
SIT 820 Valve
Inspecting the Venting System
This appliance venting system is designed and con-
structed to develop a positive flow adequate to remove
flue gases to the outside atmosphere.
Any foreign objects in the venting system, except those
designed specifically for the venting system, may cause
spillage of flue gases.
To inspect the venting system, make sure the main gas
valve is off. Remove window frame assembly (Refer to
Window Frame Assembly Removal Section). Using a
flashlight, check the area above the baffle in the com-
bustion dome. Clean if necessary.
3/8" - 1/2"
(10 - 13 mm)
Fig. 51 Correct pilot flame appearance.
F584-703
SIT Pilot
PSE Pilot
Yellow Flames
Red Glow
LG340
Fig. 52 Correct burner flame appearance for DVRT41.
