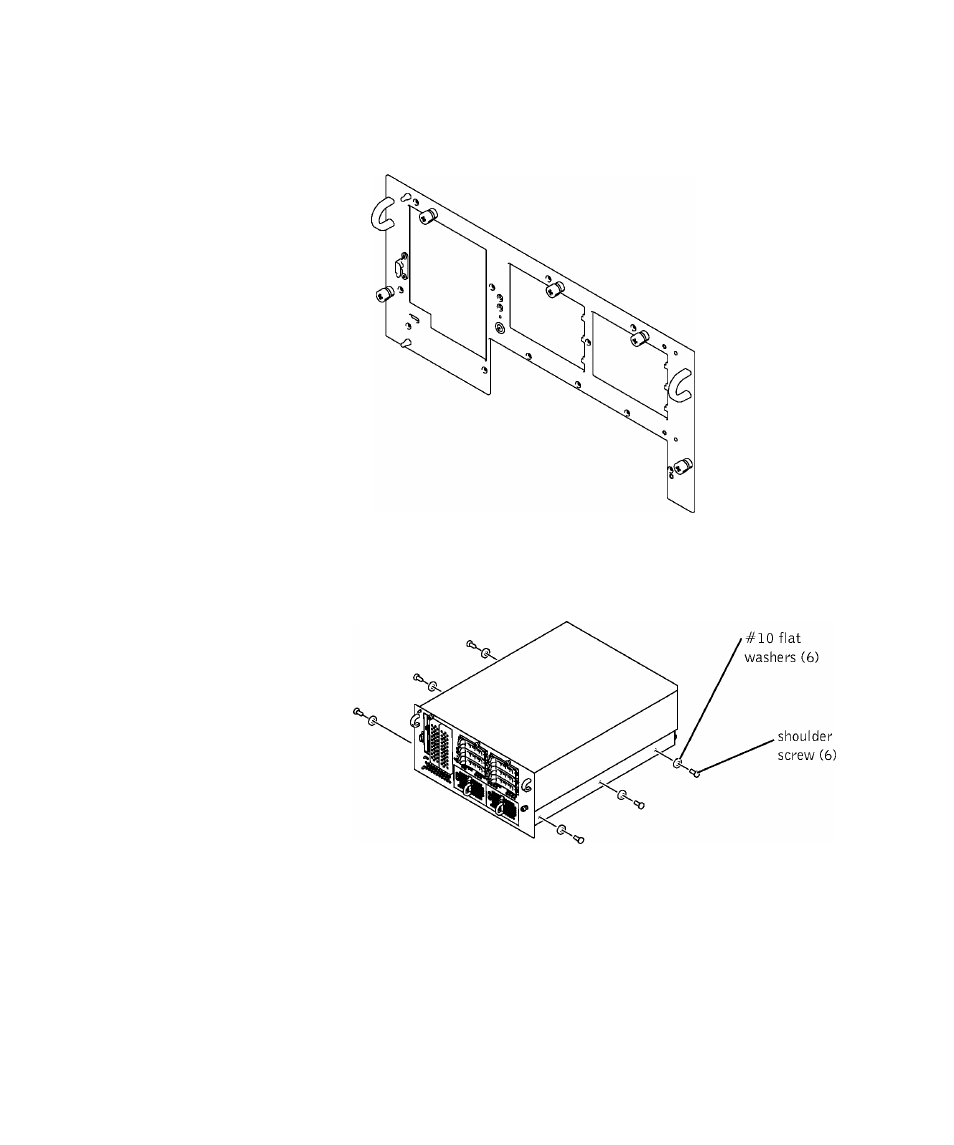

F i g u r e 1 - 1 0 . I n s t a l l i n g t h e R a c k F r o n t P a n e l
2 Install three 10-32 shoulder serews and three #10 flat washers on eaeh side of the
ehassis (see Figure 1-11).
Figure 1-11. Installing Shoulder Screws and Washers
3 Install the new гаек bezel:
a Position the bezel so that its hinged mounting braeket thumbserews are aligned
with the holes in the system front panel (see Figure 1-12).
b Seeure the thumbserews to the front panel with a Phillips serewdriver.
1-13 I R a c k I n s t a l l a t i o n G u i d e
