Installation guide Installation 17

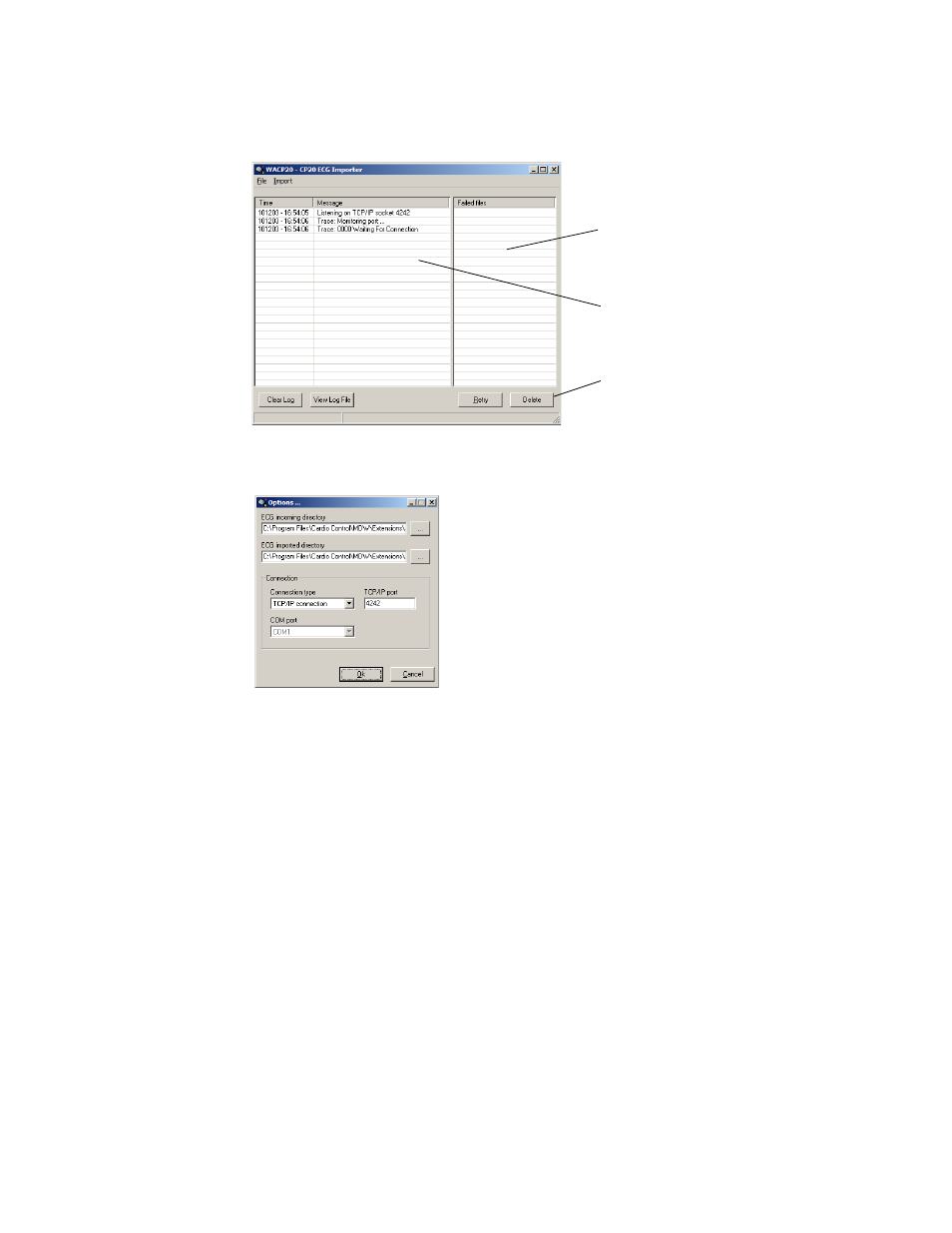

The following screen appears:
6. Go to File > Options. You will see the following options:
You will normally not need to worry about the directory settings for incoming and
imported ECG tests unless your system administrator indicates those should reside
somewhere other than in the default folder.
By default, the Connection type is set to TCP/IP connection for wireless network
connectivity, and the TCP/IP port to use is set to 4242. The port setting must match
with the set up on the CP 20 device.
If you need to make connections with a serial cable, set the Connection type to Serial
connection and indicate in the COM port selector which serial port to use. This will
normally be COM 1.
After changing the settings, minimize the application. It will continue to listen for
connections.
List of any ECG tests that
failed to import correctly.
Action buttons for failed tests
Activity log
