Specifications

Electrical Specifications

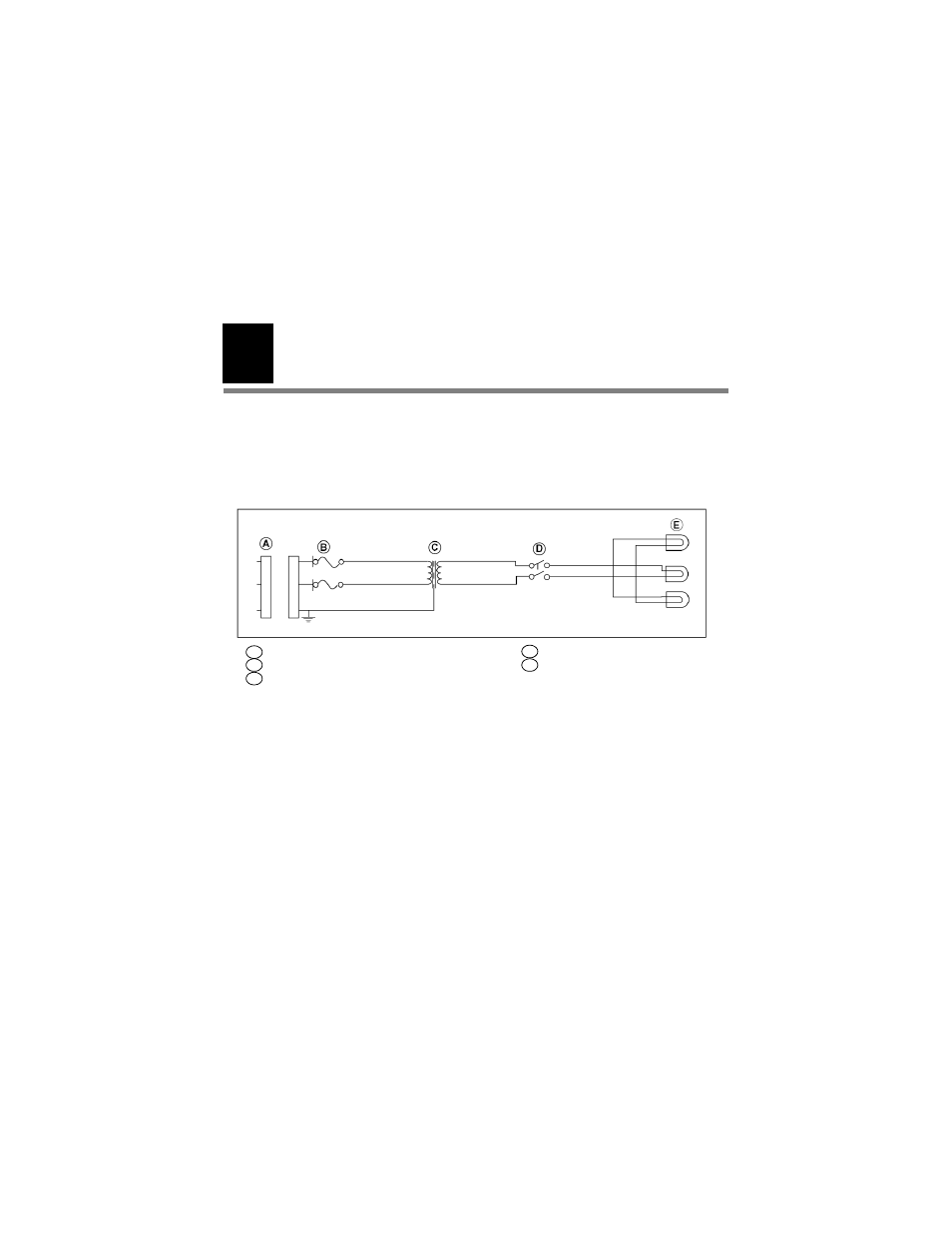

Wiring Diagram:

A HOSPITAL GRADE POWER CORD

D ON-OFF SWITCH

B FUSES

E LAMPS

C TRANSFORMER - STEP DOWN,
ISOLATED

Input

Model 44200: 120 Vac, 60 Hz 0.70 A

(U.S.A./Canada/South America/Japan)

Model 44202: 230 Vac, 50 Hz 0.35 A

(Europe, except United Kingdom)

Models 44204, 44206:240 Vac, 50 Hz 0.35 A

(Australia, UK)

Output

12.0 Vac @ 5.0 A (three 20-watt lamps)
