Setup
Connecting the Spirometer
WARNING To prevent the spread of infection, use a new flow transducer
for each patient. Use rubber gloves when replacing used flow transducers,
and wash hands after touching them. Discard flow transducers after a
single patient use.

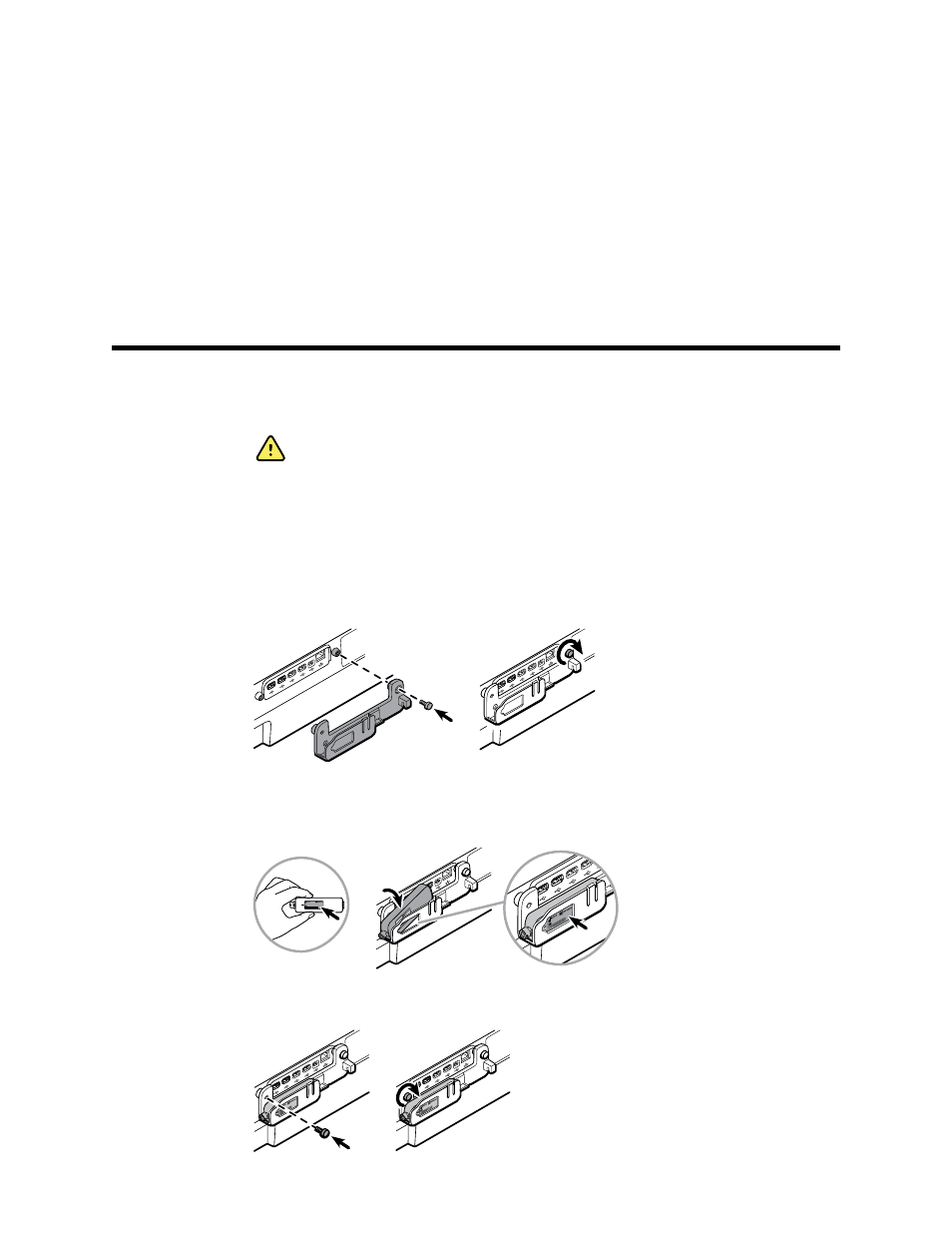

Connecting the spirometer components
1. Attach the right side of the spirometer mounting bracket to the device using one of
the thumb screws. Tighten the thumbscrew.
2. Insert the spirometer sensor into the mounting bracket.
Ensure that the spirometer sensor label is visible in the mounting bracket window so
that the mini USB cable connector installs correctly during the next steps.
3. Attach the left side of the spirometer mounting bracket to the device using the
second thumb screw. Tighten the thumbscrew.
