CardioPerfect Workstation
User Manual
DIR 80012336 Ver. E 19 / 38
6. Select the format in which the tests must be exported.
7. Click the OK button. A message is displayed when the export process has finished.
Tips for exporting tests:
You do not necessarily have to export a test to a floppy or external disk; you can also
export it to another location on your computer.
Test names
Each test has a unique name, so that tests are always retrievable and cannot be duplicated.
The structure of a test name is:
 Test type (ECG/SPIRO/XECG/ABP/Recollect)
 Recording date (YYYYMMDD)
 Recording time (HHMMSS)
 Name of the patient
Example of a test name
ECG_20000501_100519_Thompson.mdw is an ECG test recorded on May 1, 2000 at
10:05:19 for patient Thompson.
3.7 Open a test from another location
You can open tests from other locations on your computer, for example, from a disk. This is
called importing a test.
To import a test:
1. Insert the removable disk if desired.

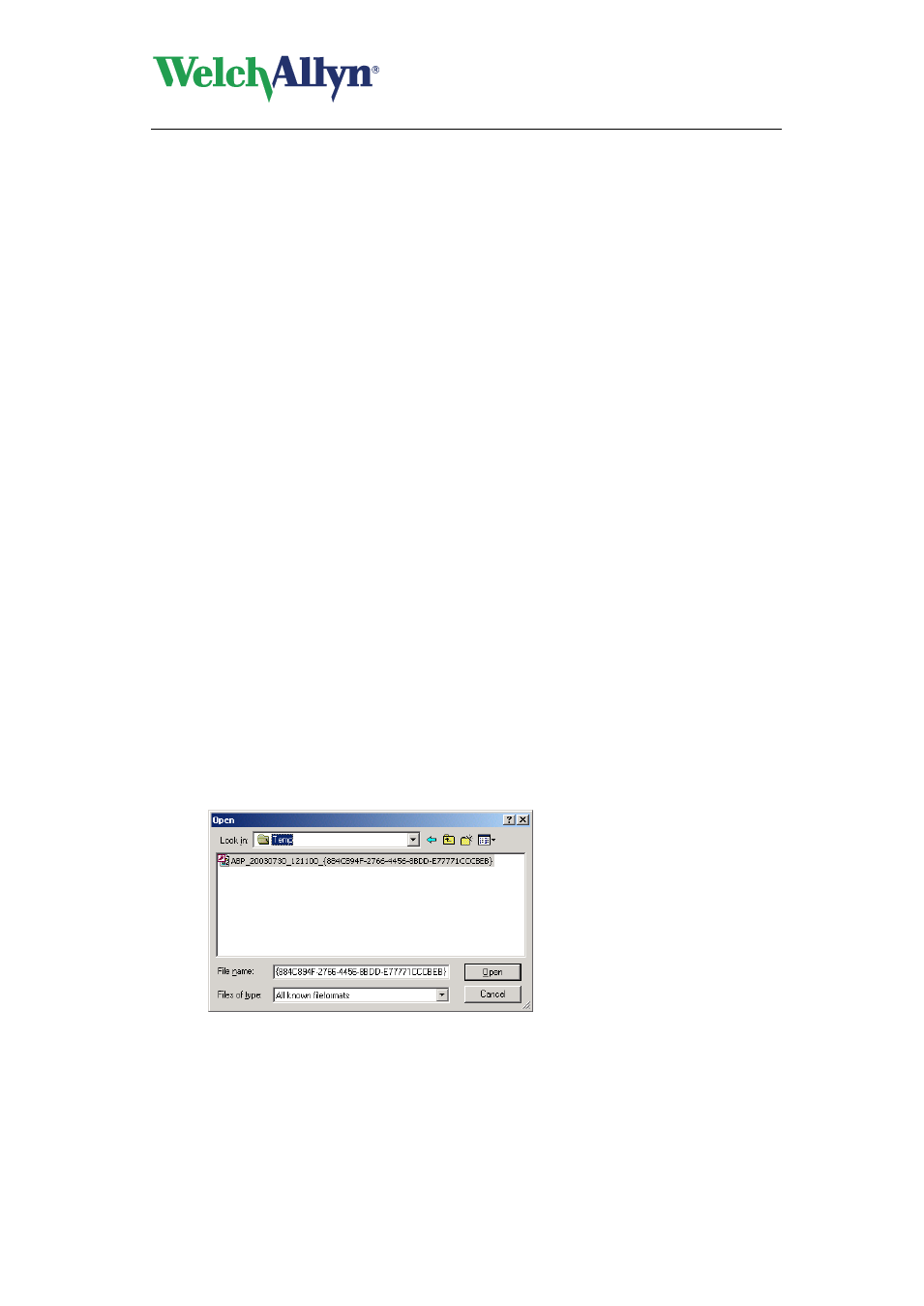

2. In the File menu, select Import. The Open dialog box is displayed.
3. In the Open dialog box, select the file type that you want to import.
4. Browse with the Look in: field to the location where the file, that you want to import,
resides.
5. Select the file that you want to import.
6. Click the Open button to import the selected test. A message is displayed when the
import process has finished.
