Directions for Use Program Mode 35
d. Tracing of actual response curve

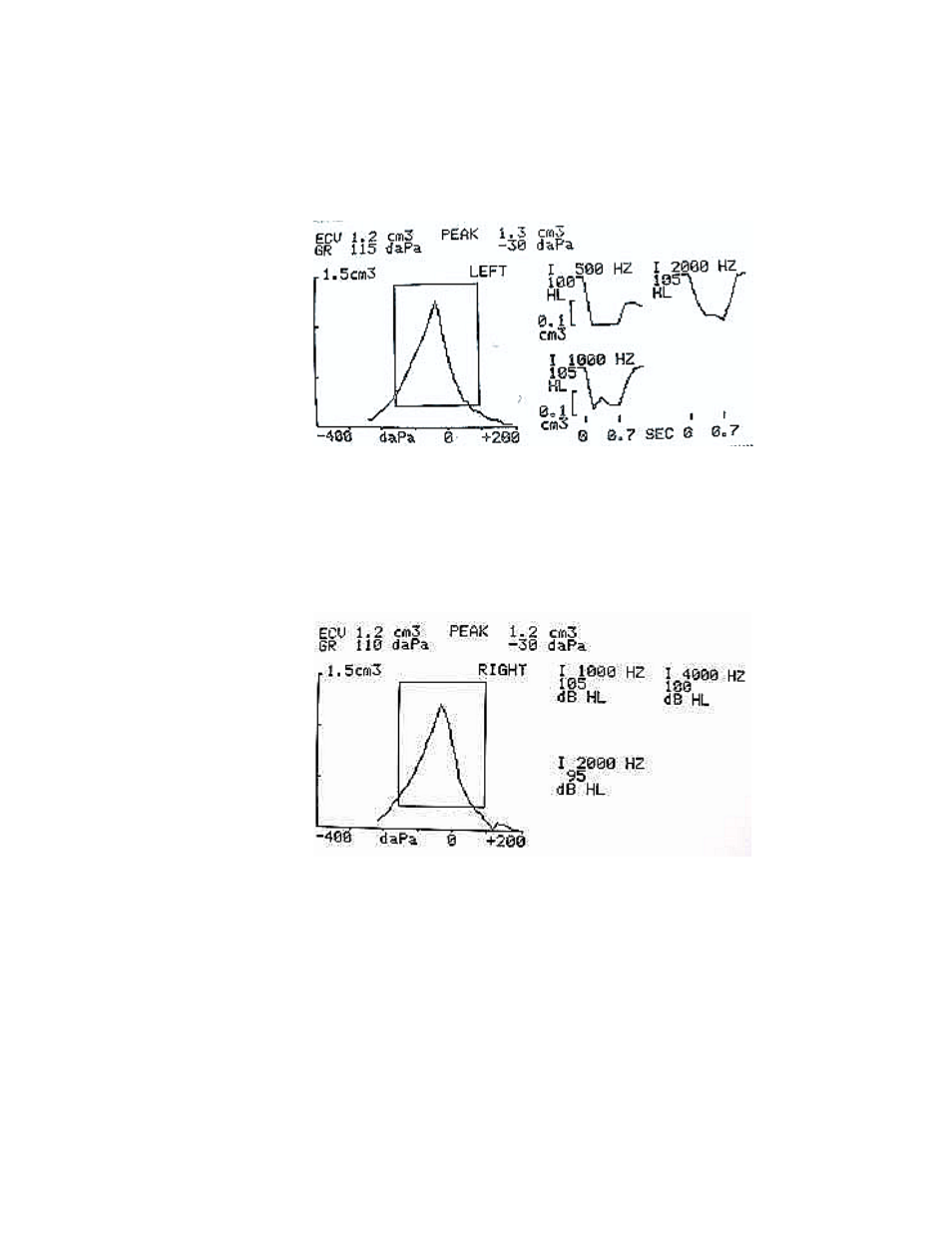

Figure 13. Display format for TYMP/REFLEX Test
(Reflex test results with dB HL value and tracing)
• Reflex dB HL only
If Reflex dB HL only is selected, the stimulus frequency, stimulus routing, and the dB HL
level for the reflex will appear on the display and printout
Figure 14. Display format for TYMP/REFLEX Test
(Reflex test results given in dB HL)
• Reflex yes/no
If Reflex yes/no is selected, the dB HL result will be replaced with the word yes
(response detected at one of three levels) or no (no response detected).
