10 Installation Welch Allyn TM286 Auto Tymp
Rear Panel Labels and Connectors

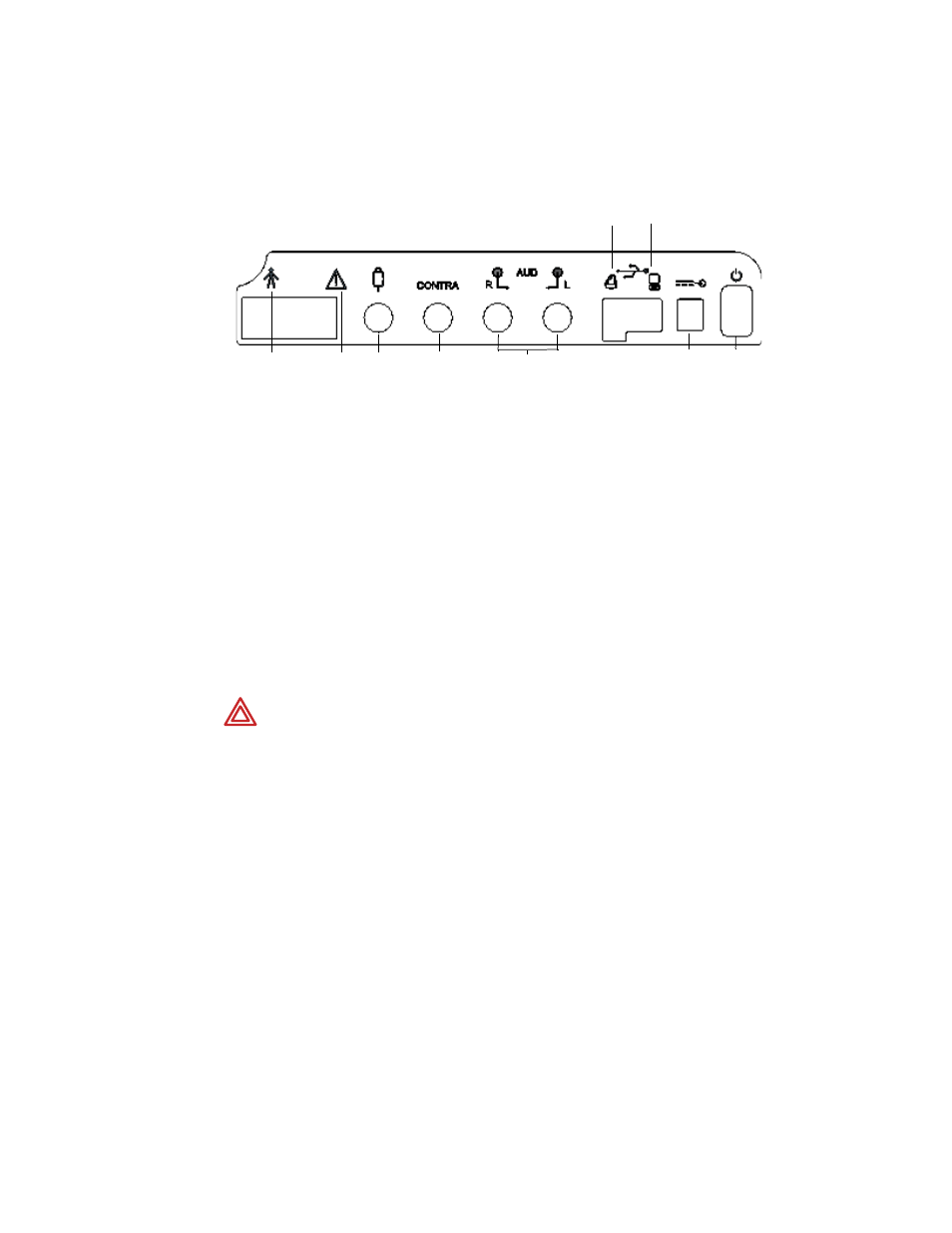

Figure 3. Rear panel labels and connectors
R1 Symbol denotes a Type B
R2 Symbol denotes Attention, consult accompanying documents
R3 Connector for handswitch (Optional)
R4 Connector for contralateral insert phone (Not Available)
R5 Connectors for right and left earphone
R6 Power Input Jack for external power supply
R7 Power Switch with ON/OFF indicators
R8 USB port for connecting to an external printer
R9 USB port for connecting to a computer
WARNING Accessory equipment connected to the analog and digital interfaces
must be certified to the respective IEC standards (IEC 950 for data processing or
IEC 60601-1 for medical equipment). Furthermore, all configurations shall comply
with the system standard IEC 60601-1-1. Everyone who connects additional
equipment to the signal input or signal output part configures a medical system,
and is, therefore, responsible that the system complies with the requirements of
the system standard IEC 60601-1-1. If in doubt, consult Welch Allyn at Tel.: 1-800-
535-6663 (In U.S.A. only) or Tel.:1-800-561-8797 (in Canada only).
R1 R2 R4 R3 R5 R6 R7
R8 R9
