Drain Line

All systems come with a drain line for additional removal of excessive condensate. It is mandatory to install the drain line

whether it leads through the wall and out of the cellar or remains inside the cellar. During operation, the cooling system will strip

excess water from the air in order to maintain the proper level of humidity within the cellar. However in extreme humidity,

additional condensate will be removed. Thus the drain line will prevent overflow and leaking by allowing for discharge of the
additional condensate.

Failure to install the drain line

voids the warranty.

To prevent mold from growing,

allow the drain line to hang

above the water line.

Condensation Drain Line

The condensation drain line tube is used to remove excess condensation from the Evaporator Unit ( Fan Coil Unit) to a proper

discharge location. It is important that the drain line tube is properly connected and used to prevent leakage and other problems
associated with excess condensation.

Failure to use the condensation drain line tube will void the warranty on the unit.

WRONG: Drain line is under water.

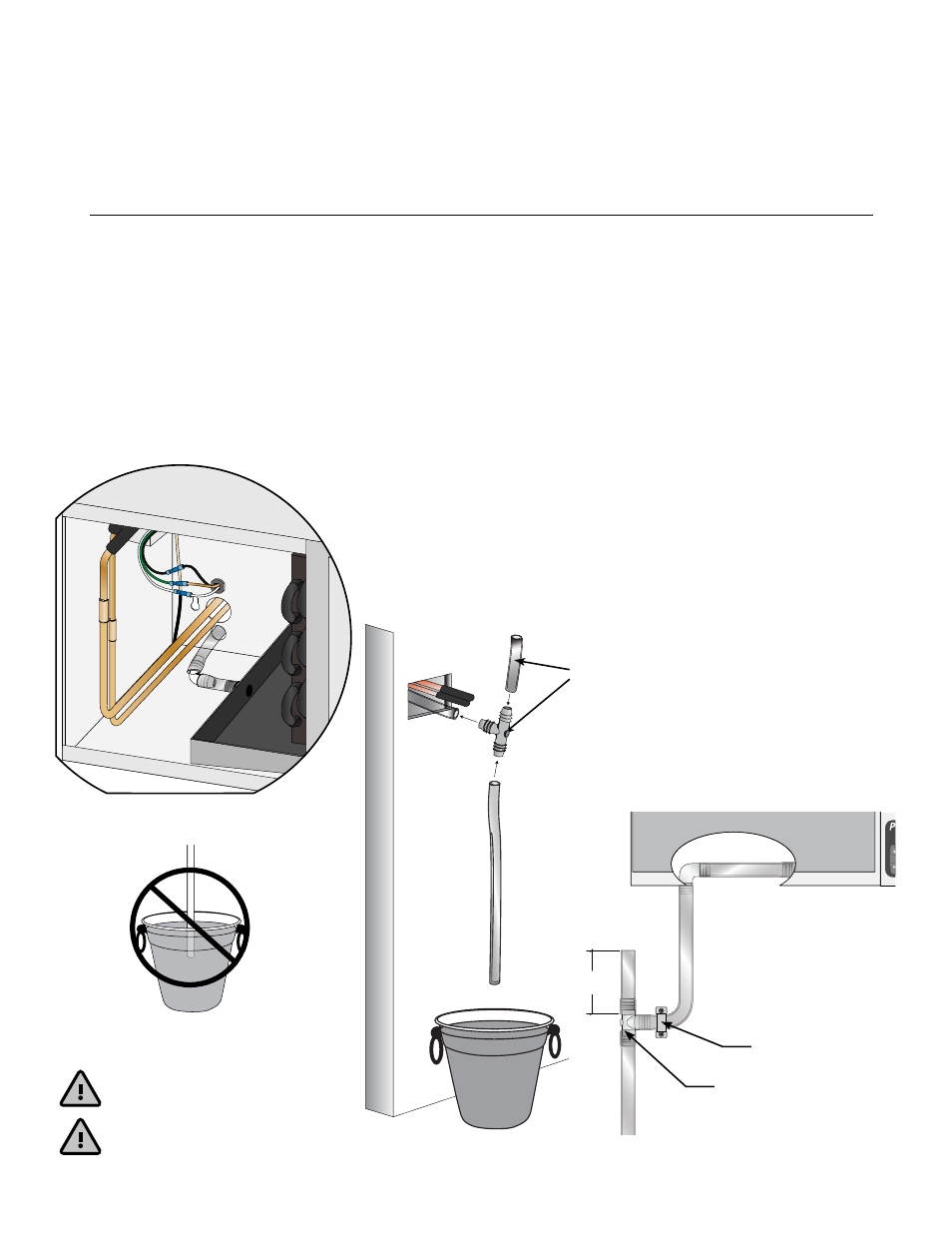

INSTALLING THE EVAPORATOR UNIT (FAN COIL UNIT): DRAIN LINE

1. Depending on your desired installation, use the barbed elbow as shown in Figure 1 or Figure 2 to route the Drain Line from

the Drain Pan to the exterior of the unit.

2. Insert the middle barb of the barbed tee fitting into to the end of the drain line coming from the evaporator. Rotate fitting so

tee is in the orientation shown in the diagram on the right. Connect the three inch piece to the barb on top. Connect the

remaining “long” piece of drain tubing to the bottom barb of the tee.

NOTE: The fitting should be placed vertical with the three inch cut out facing up.

NOTE: Using the barbed tee as shown in Figure 2 and Figure 3 is recommended.

NOTE: The fitting should be

placed vertical with the three

inch cut out facing up.

THROUGH THE WALL DRAIN LINE

OPTION 1

INSIDE CELLAR DRAIN LINE

OPTION 2

3”

CELLAR WALL

WALL MOUNT CLAMP

BARBED TEE

Figure 1

Figure 2

Figure 3
