Page 12 | 1-800-343-9463
MPS 033114
PREPARING AND INSTALLING THE
EVAPORATOR UNIT (FAN COIL UNIT)

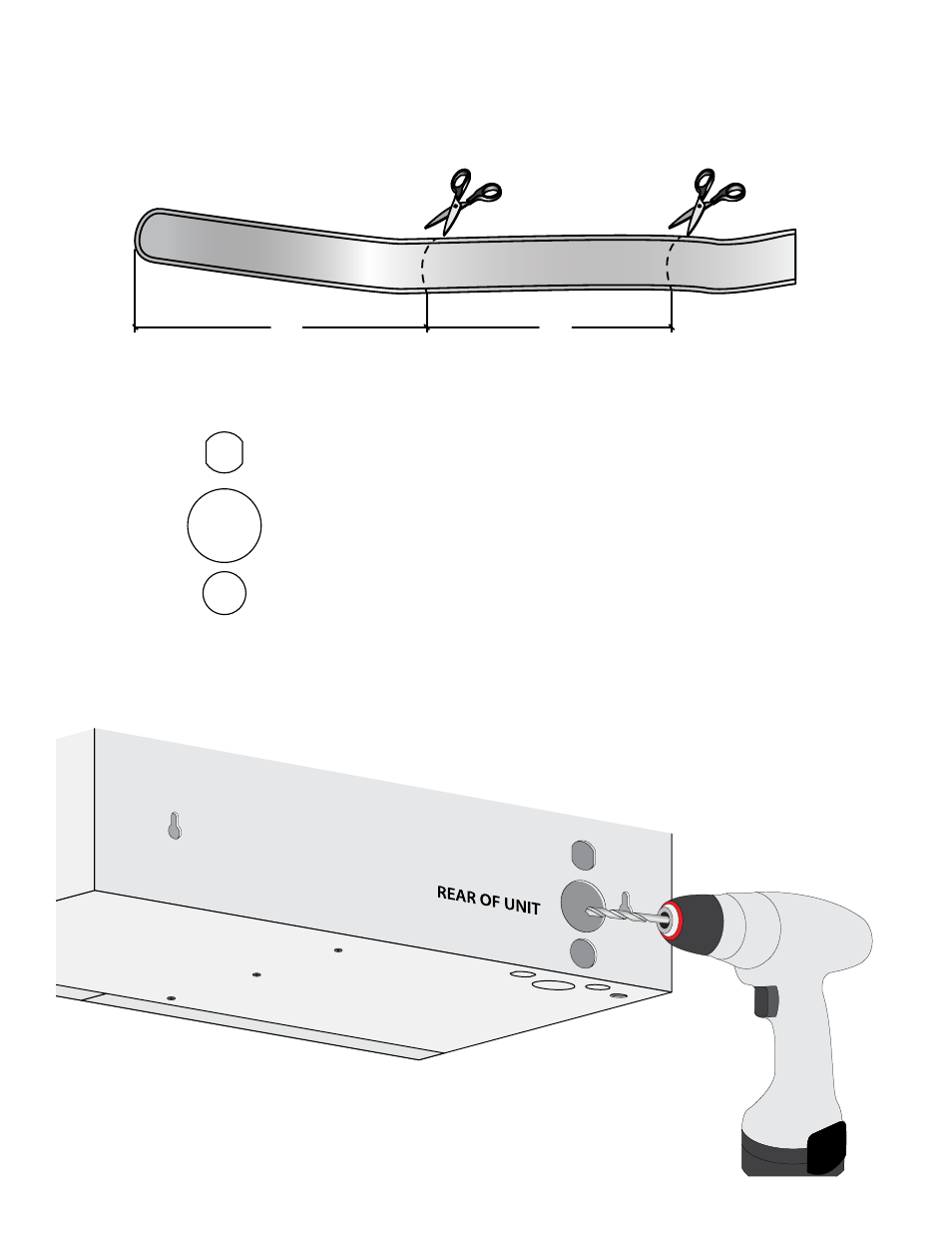

6. Cut the supplied Drain Tubing at a length long enough to extend from the Drain Pan to the desired Barbed
Tee location and a second piece 3 inches long.
Length To Extend To Desired Tee Location 3”
Power
3/8” Suction
1/4” Liquid
Drain
7. Depending on the desired installation, remove the rear
or bottom knockouts for the Line Set, Drain Line and Power
Cord.
8. Using a 5/32” Drill Bit on a drill, from the outside of the
unit cut holes through the unit’s insulation for the line set
and drain line.
