PREPARING AND INSTALLING THE

EVAPORATOR UNIT (FAN COIL UNIT)

• Drill

• 5/32” Drill Bit

• 1/4” Socket Drill Bit

• 1/4” Wrench

• Phillips Head Screwdriver

• Tape Measure

• Brazing Torch

• Drywall Saw

• Ladder

• Level

• Pliers

• Pencil

Required Tools:

1. Pull apart the Filter Grille from the Evaporator

Unit.

2. Cut the Zip Tie holding the circular connectors

and wires on the rear left corner of the interior of

the unit.

3. Unscrew the nut attached to the Circular

Connector (Bottle Probe Input.)

4. Install the Circular Connector (Bottle Probe

Input) in The hole located at the bottom of the

housing.

NOTE: From a frontal perspective, the Circular

Connector is located in the rear-left corner of the

bottom of the unit.

5. Secure the Circular Connector (Bottle Probe

Input) to the unit using the provided nut (the

Rubber Washer should remain inside the unit).

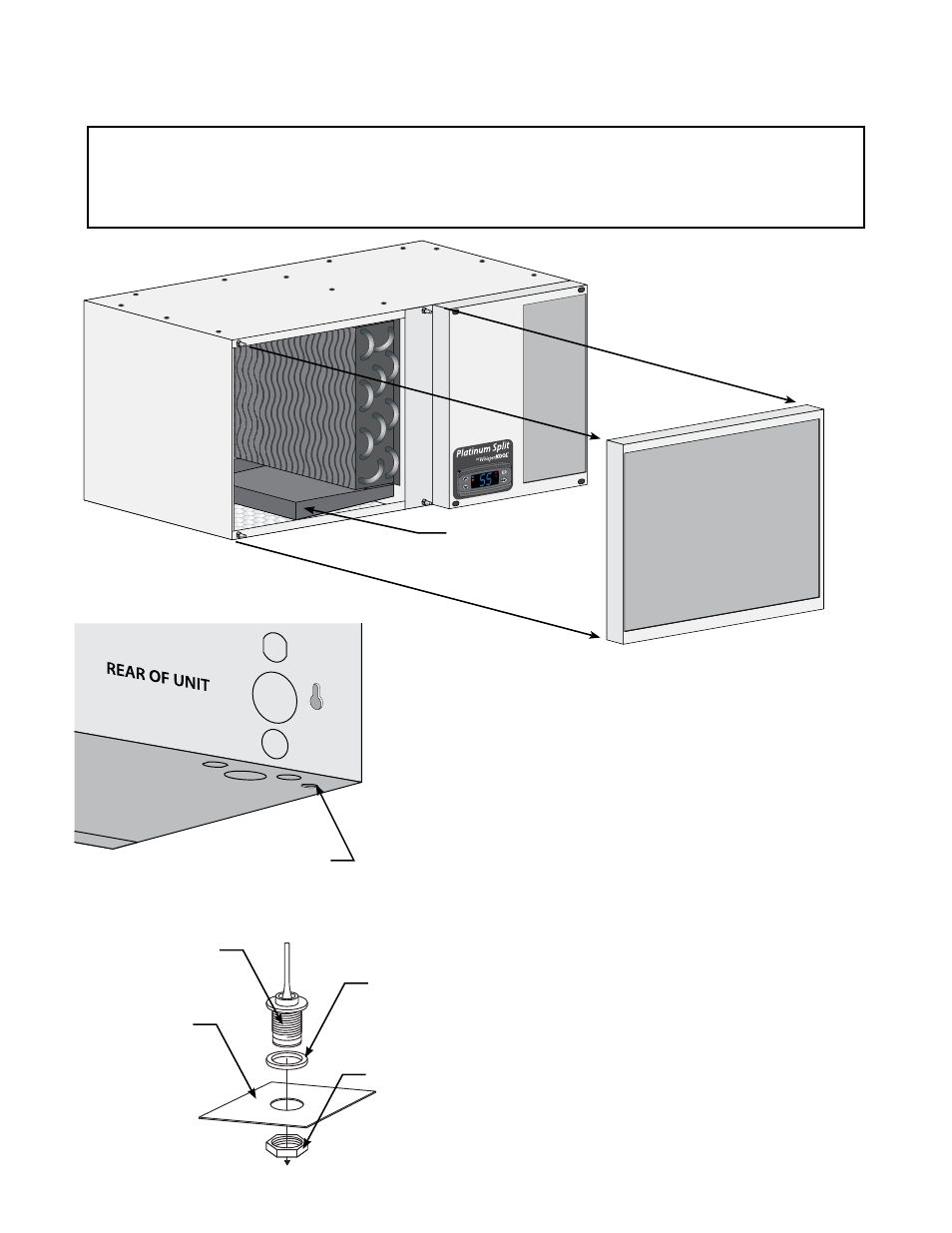

RUBBER WASHER

NUT

UNIT PANEL

CIRCULAR CONNECTOR/

BOTTLE PROBE INPUT

HOLE FOR CIRCULAR CONNECTOR

(BOTTLE PROBE INPUT)

DRAIN PAN
