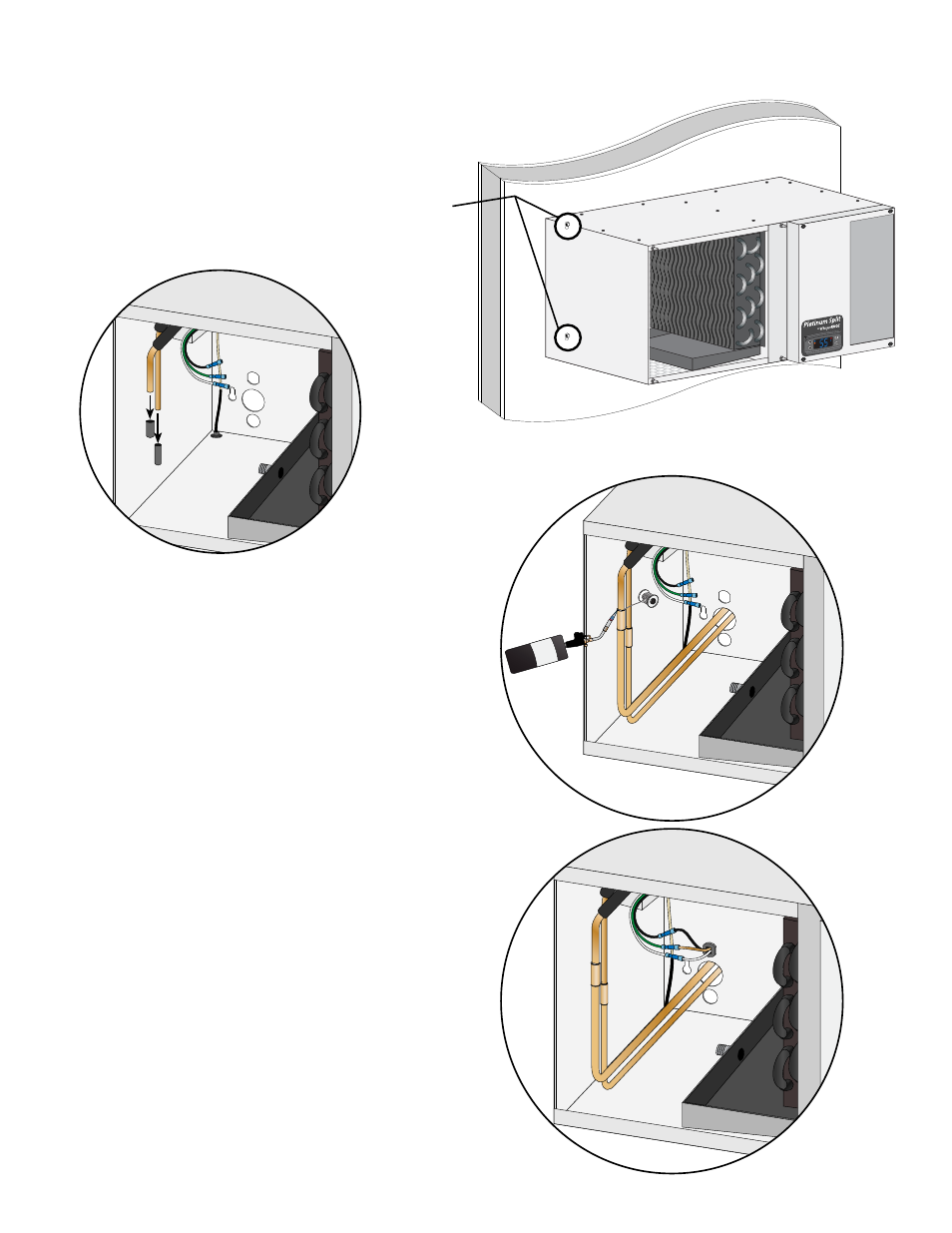

INSTALLING THE EVAPORATOR UNIT (FAN COIL UNIT)
11. Route power supply wires into the unit through
the power knockout and install the supplied strain
relief.
12. Connect power supply wires to the pre-installed
butt splice connectors located inside of the unit
(Hot=Black, Neutral=White, Ground= Green).
10. Remove the Line Set Caps followed by
routing the 3/8” suction line and 1/4” liquid line
into the unit and braze.
Note: Angle the flame up and away from any
electrical and insulation while brazing inside of
the unit.
Note: For ease of installation remove the top
panel after securing unit to wall.
9. Using a 1/4” wrench or socket and tighten the
accessible mounting screws on the left hand side
of the interior of the unit.
°
F
°
F
°
F
