∗ n1 n2 [ d ] n1 × n2 × 8

[Function]

Defining the Download Bit Image

[Code]

<1D>H<2A>H [ < d > ] n1

× n2 × 8

[Range]

≤ n1 ≤ FF}

≤ n2 ≤ 30}

{n1

× n2 ≤ 51F} Data is described in Hex code.

[Outline]

Defines downloading bit images of the number of dots specified by n1/n2.

• The numbers of dots are n1 x 8 in horizontal direction and n2 x 8 in vertical direction.
• d indicates bit image data.
• The download bit image thus defined remains effective until redefinition, ESC @

execution, ESC &, or power OFF takes place.

[Caution]

• A download character and a download bit image can not be defined simultaneously.

With this command executed, defined content of a download character is cleared.

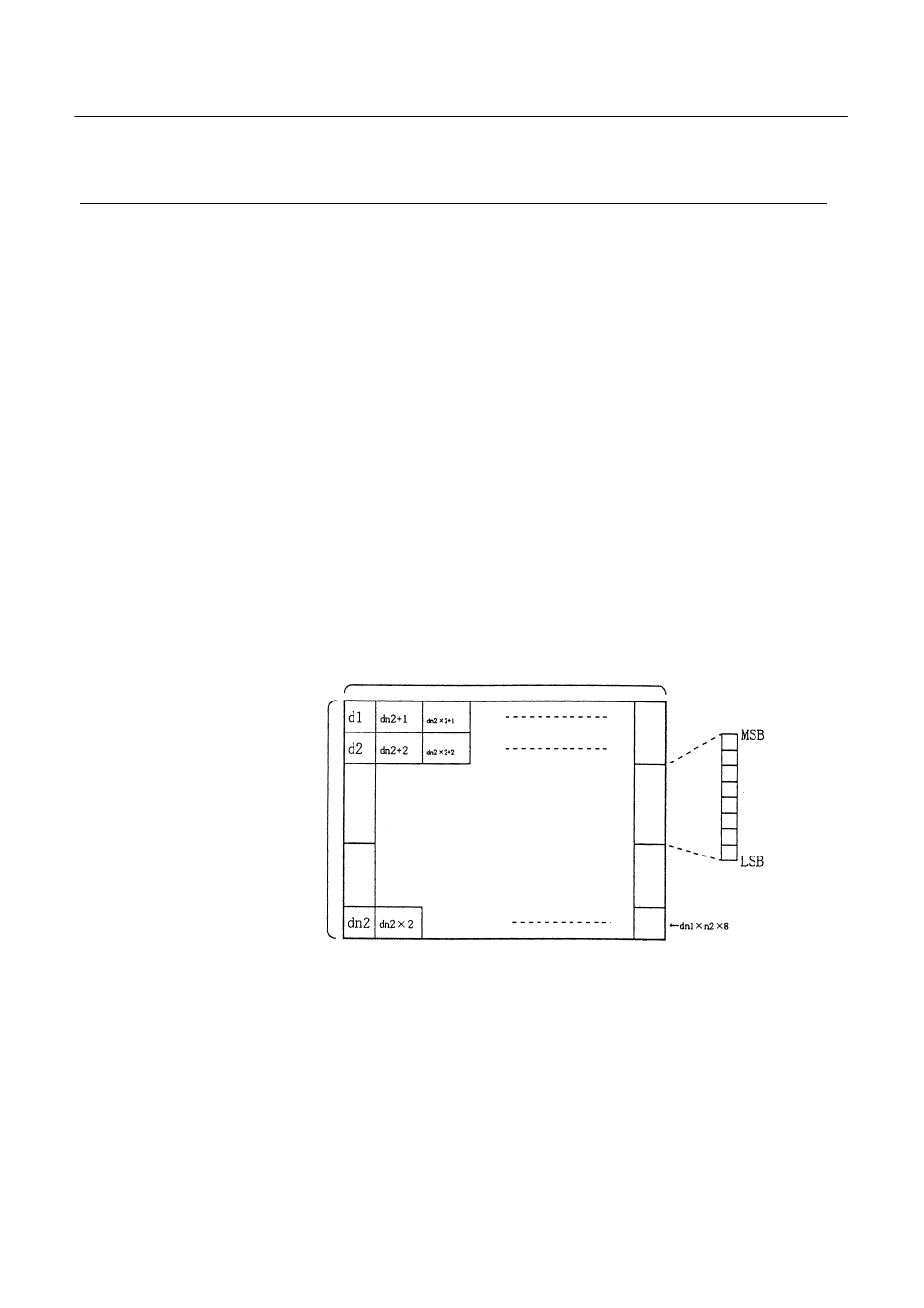

• Relations between the bit image data and the dot defined are shown below:

[See Also]

GS /
