- 24 -
Instruction Manual – ATS / BTS Moisture Analyzers

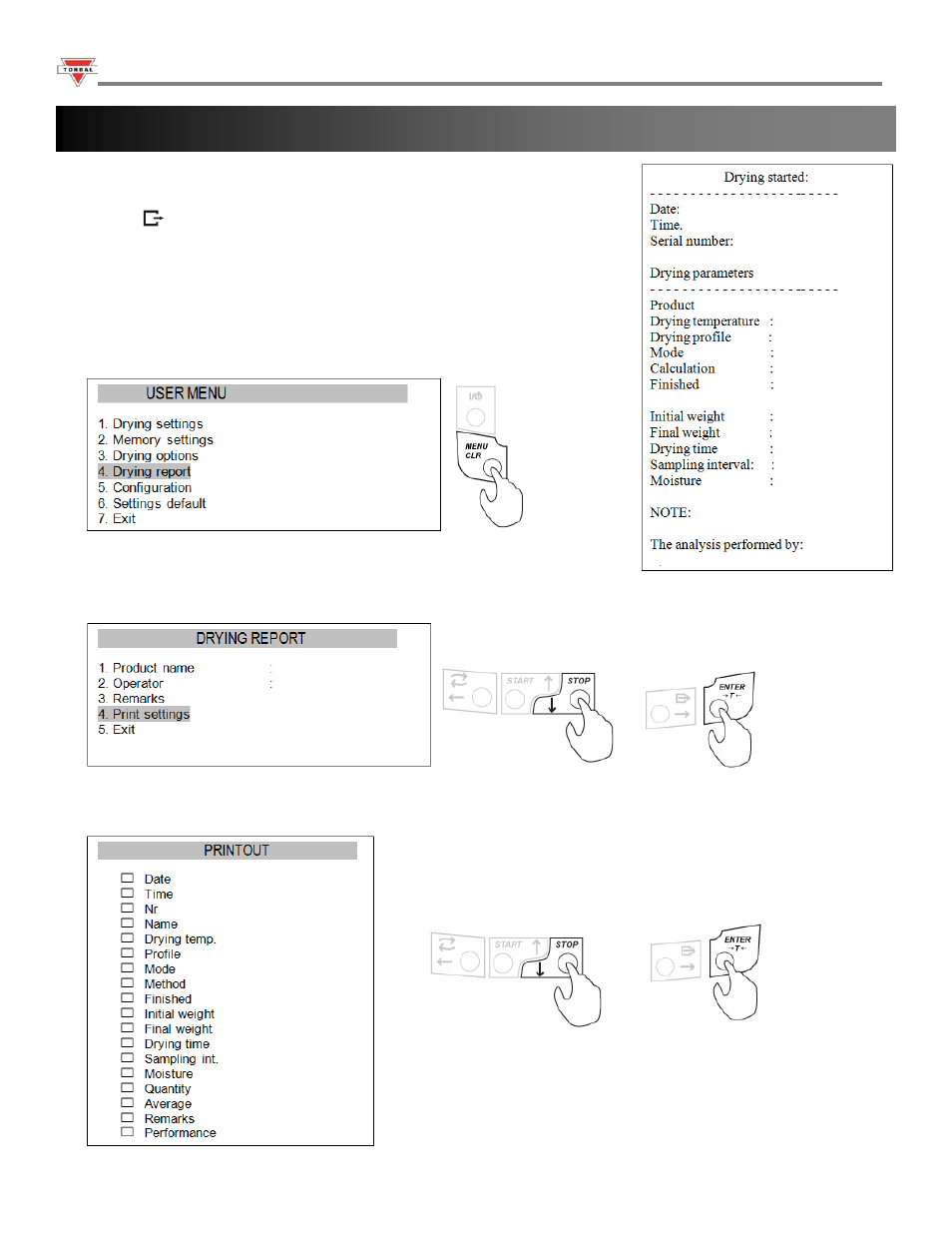

The analyzer can be connected to printer or a PC. At the end of each transaction a
detailed report of the drying results is produced. To print the reports press the Data
Transfer key
. The report includes details derived from you analysis as well as
information that can be inserted by the operator i.e. product, operator name, or
remarks.
To customize the printout or enter remarks follow the steps below:
1.
Press the Menu key and use the navigation keys to select option 4
(Drying Report).
2.
Use an external PS2 keyboard to type in the product and operator name as well as important analysis
remarks. To customize the printout use the navigation keys to select option 4 (Print settings).
3.
Use the navigation keys to select a desired parameter and press Enter to enable or disable printout parameter
by placing or removing a checkmark.
Chapter 15: Report Printing Configuration and Data Transmission
