I-Class 25

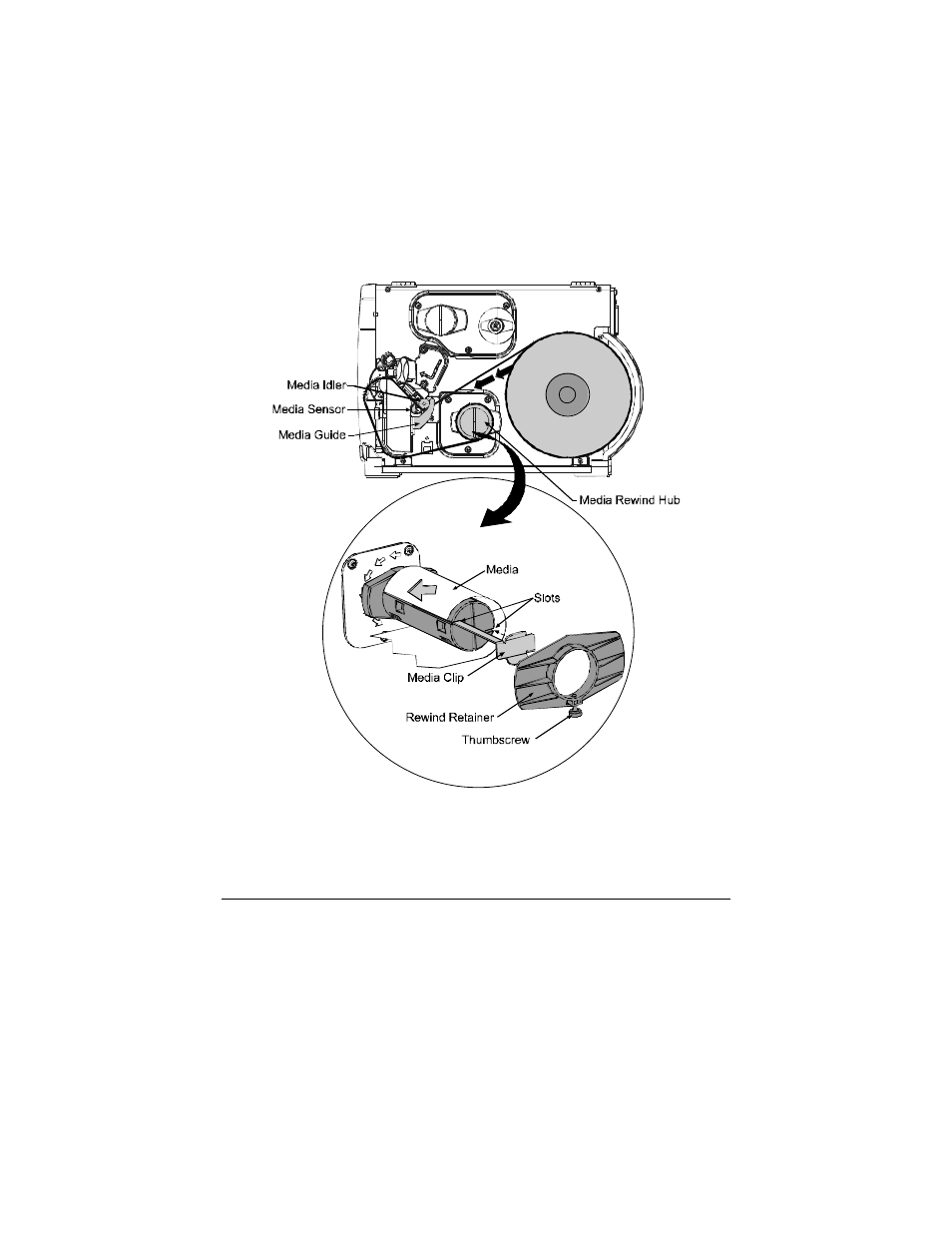

s Route the media back to the Media Rewind Hub, as shown below.
t Insert the leading edge into a Slot on the Media Rewind Hub then insert the
Media Clip into a Slot to secure it in place.
u Position the Rewind Retainer lightly against the edge of the media on the
Media Rewind Hub. Tighten the Thumbscrew to secure the retainer in
place.
v Manually rotate the Media Rewind Hub to remove any slack in the media.
Close the Access Cover.
Removal:
Remove the Rewind Retainer and Media Clip. Grasp the end of the hub. While
pulling outwardly, squeeze the hub together to collapse it and then slide off the
labels.
