20 MajorSlice™ 350A
Figure 5-2. Round Rail Lubrication Point
5.1.2 Square Rail
Lube with PN 77933 USDA H-1 food grade grease (white).
1. Power off the machine by turning off the (#3) power switch.
2. Unplug machine from power source.
3. Close the (#4) index control knob by turning clockwise.
4. Pull the (#11) carriage tray to the front and home position.
5. Turn the (#6) carriage tray release knob counterclockwise to release the carriage.
6. Remove the carriage tray (#11) by lifting straight up and clean separately.
7. Apply USDA Regulatory approved food grease/lube liberally onto the top of the square rail as in the photo
below.

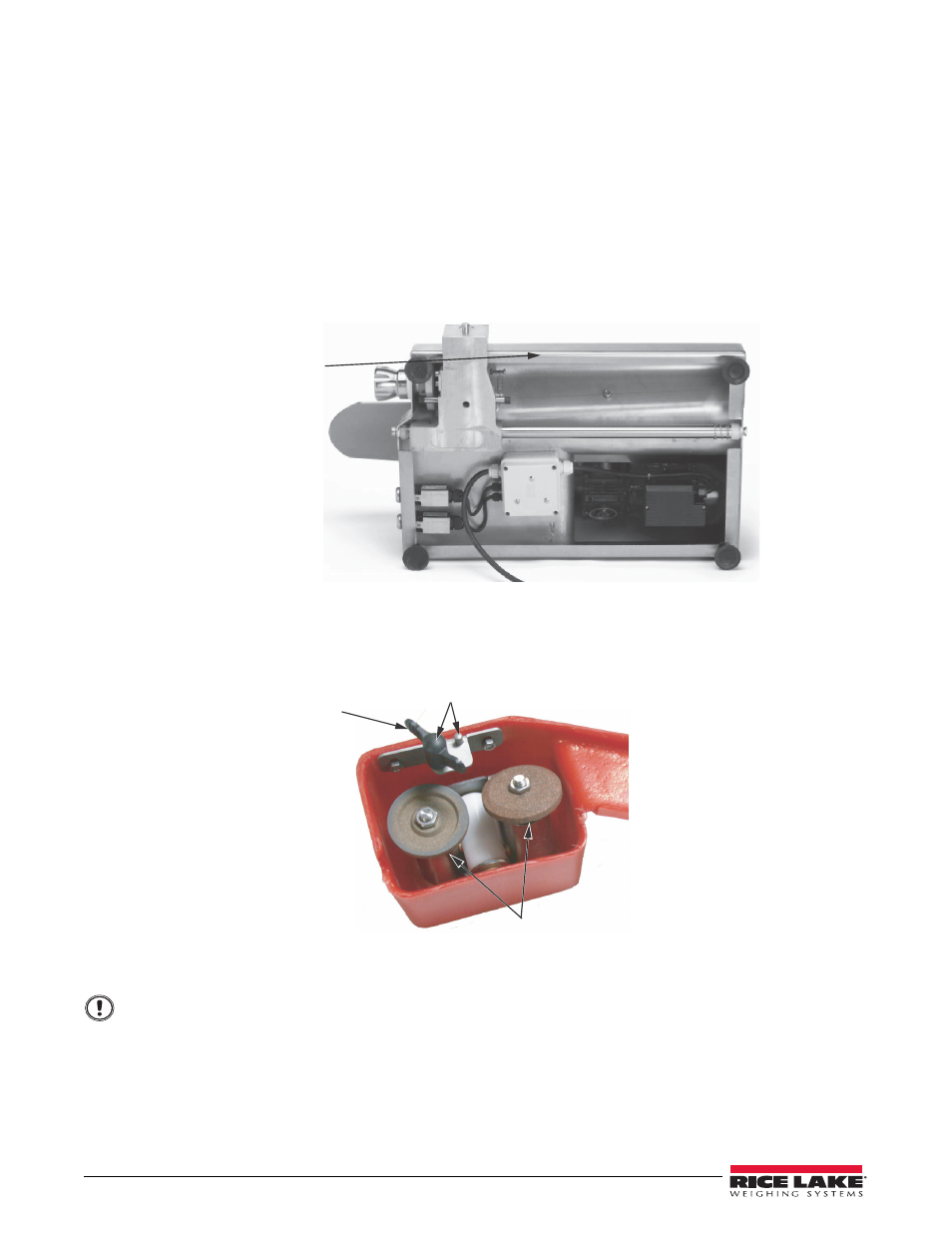

Figure 5-3. Square Rail Lubrication Point
5.1.3 Sharpener Assembly
1. Lubricate both stone spindles of the sharpener assembly and turn them by hand assuring they turn freely.
Figure 5-4. Sharpener Assembly Lubrication
DO NOT lubricate machine with petroleum based, vegetable based or animal fat based products.
Lubrication Point
Lubrication Point -
Spindles beneath stones
Locating
Sharpener Pins
Sharpener
Pin Knob
Important
