8 MajorSlice™ 350A
4.0 Parts
4.1 MajorSlice 350A Parts

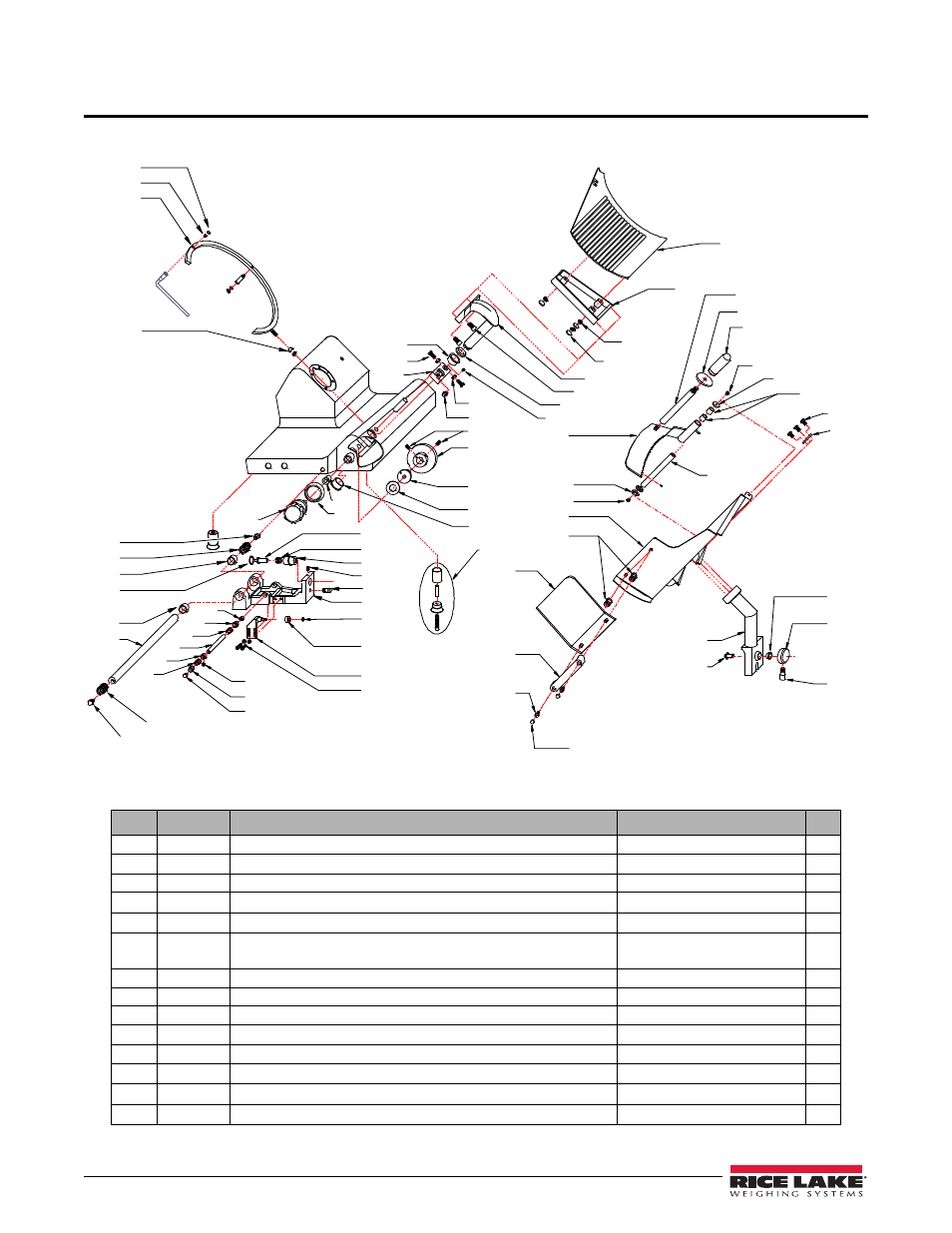

Figure 4-1. MajorSlice 350A Parts Diagram
Item # Part No. Description Material Qty
1 Base/Body Stainless Steel 304 1
2 Gauge Plate Stainless Steel 304 1
3 Reinforcement Support Stainless Steel 304 1
4 Nut M8 Stainless Steel A2 3
5 Stop Plug – Reinforcement Support PEhd 3
6 Mount – Gauge Plate Stainless Steel 304 + steel
Chrome 1
7 Screw – Gauge Plate Mount Stainless Steel A2 2
8 Coupling Guide Stainless Steel 304 1
9 Index Excentrique Stainless Steel 304 1
11 Washer – Spacer PTFE 1
12 153676 Screw Bronze M8-20 Bronze 2
13 Nut M8 Stainless Steel A2 2
14 Screw, M8-12 Stainless Steel A2 1
15 153678 Excentrique ERTACETAL 1
Table 4-1. MajorSlice 350A Parts Descriptions
77
76
70
74
59
60
63
60
61
61
47
44
43
42
41
40
53
49
51
52
55
54
56
71
57
56
58
55
54
15
16
17
62
2
3
4
5
18
12
8
6
7
11
14
102
9
13
95
96
94
97
101
93
95
96
87
88
89
90
91
92
86
81
85
83
82
21
20
19
18
103
141
142
98
46
5 95
100
