3 Connector Locations

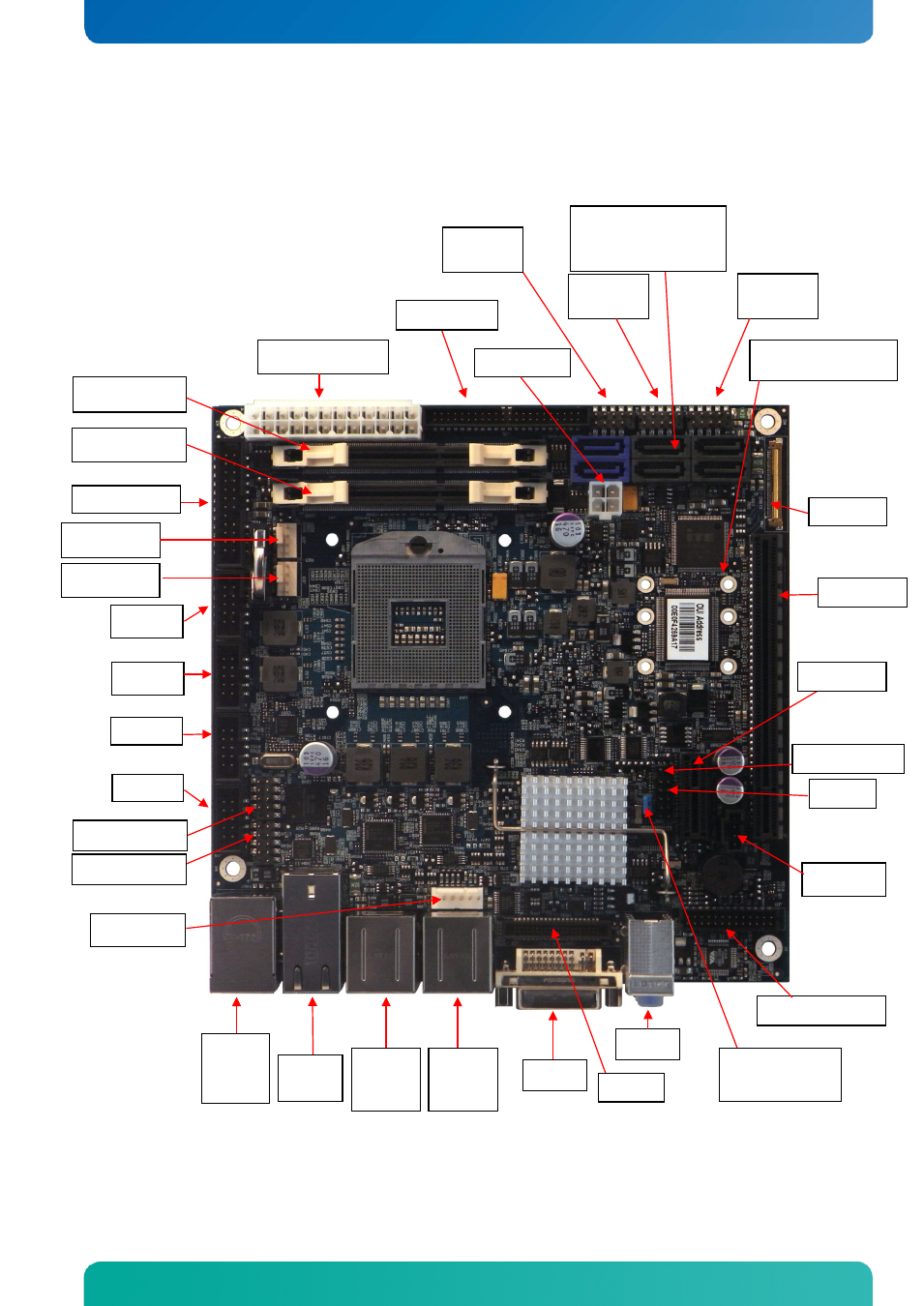

3.1 Frontside
DDR3 Slot 1
FEATURE
DVI-I
KBDMSE
PCIe x16
ATX/ BTXPWR
Audio
DDR3 Slot 0
USB13
USB12
FRONTPNL
LVDS
CDROM
AUDIO_HEAD
COM3
COM4
ATX+12V
FAN_SYS
FAN_CPU
IEEE1394_1
ETH1
USB5
USB4
COM2
EDP
ETH2
ETH3
Load Default
BIOS Settings
Sata1 Sata4 Sata2
Sata0 Sata5 Sata3
(see note below)
USB9
USB8
USB11
USB10
COM1
IEEE1394_0
PCIe x1
SPI recover
SPI
USB1
USB0
DP0
USB3
USB2
DP1
Notes:
Sata0/Sata1support up to 6GB/s and Sata2/Sata3/Sata4/Sata5 support up to 3GB/S. SATA2 is shared with mPCIe0.
USB0 – USB3 supports USB3.0/USB2.0.
Not available connectors on KTHM76/mITX: IEEE 1394_0,
IEEE 1394_1, ETH2, ETH3 and EDP.
System Temperature
Sensor( R916)
Connector Location
