2.2 System overview

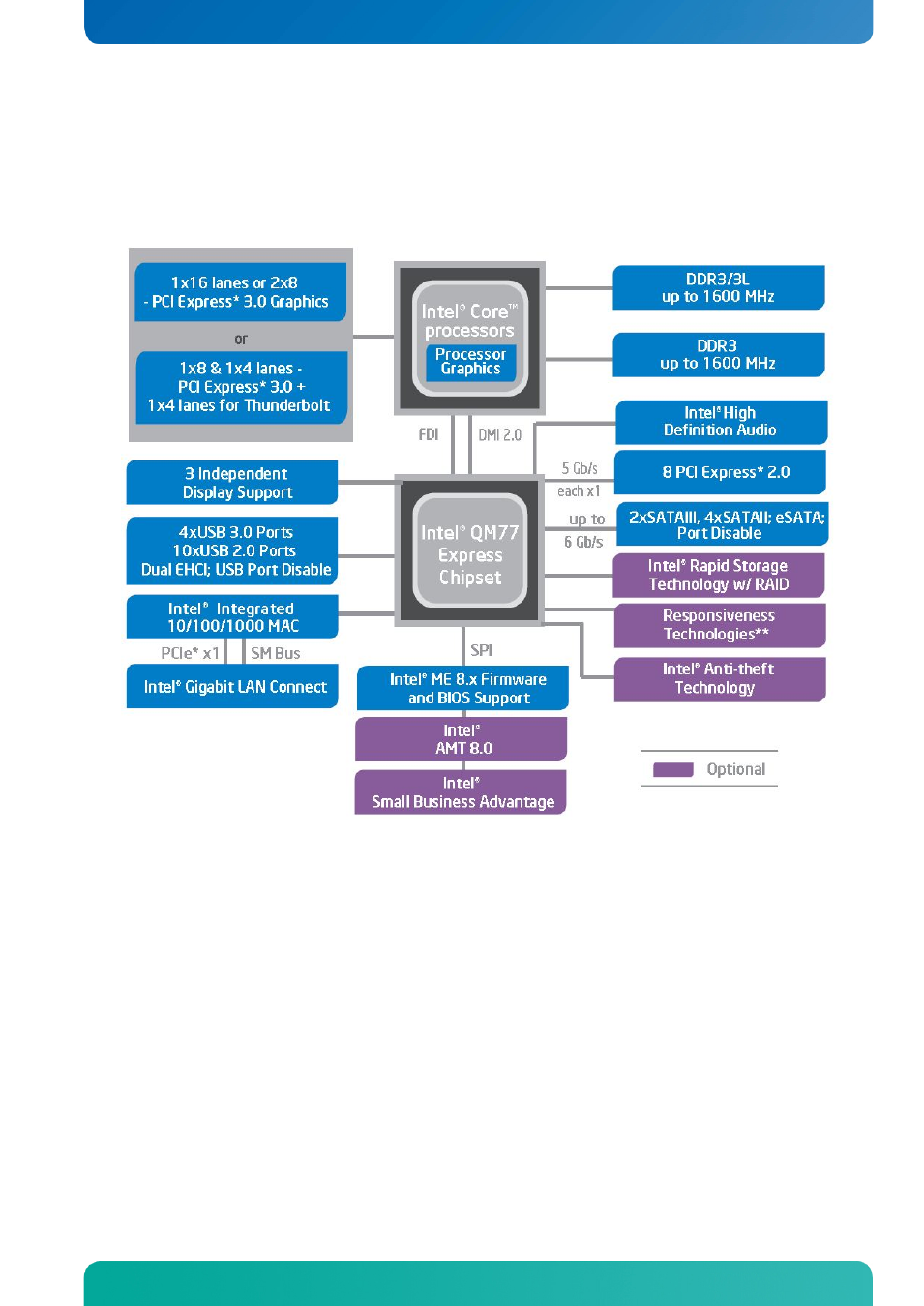

The block diagram below shows the architecture and main components of the KTQM77. The key
component on the board is the Intel
®
QM77 (Panther Point) Mobile Express Chipset.
Some components (PCI slots) are optional depending on board type.
More detailed block diagram on next page.
