2.5.3 LVDS and DVI
•
LVDS panel Support (optional), 18/24 bit colours in up to WUXGA (1920x1200) @60 Hz and
SPWG (VESA) colour coding. OpenLDI (JEIDA) colour coding is 18 bit with or without Dithering.
(Not in combination with eDP (QM77 only)).
•
DVI-I (Digital Visual Interface)
o Either DVI-A or DVI-D can be used via DVI-I connector
o DVI-A Analogue Display (CRT)
o 300 MHz Integrated 24-bit RAMDAC
o Up to QXGA (2048x1536 pixels) @ 75 Hz refresh
o DVI-D Digital Display up to WUXGA (1920x1200 pixels) @60 Hz
2.5.4 Graphics Adapters
Use of DP Adapter Converters can implement HDMI support or second VGA or DVI panel support.
The HDMI interface supports the HDMI 1.4a specification
including audio codec. However limitations to the resolution
apply: 2048x1536 (VGA), 1920x1200 (HDMI and DVI)

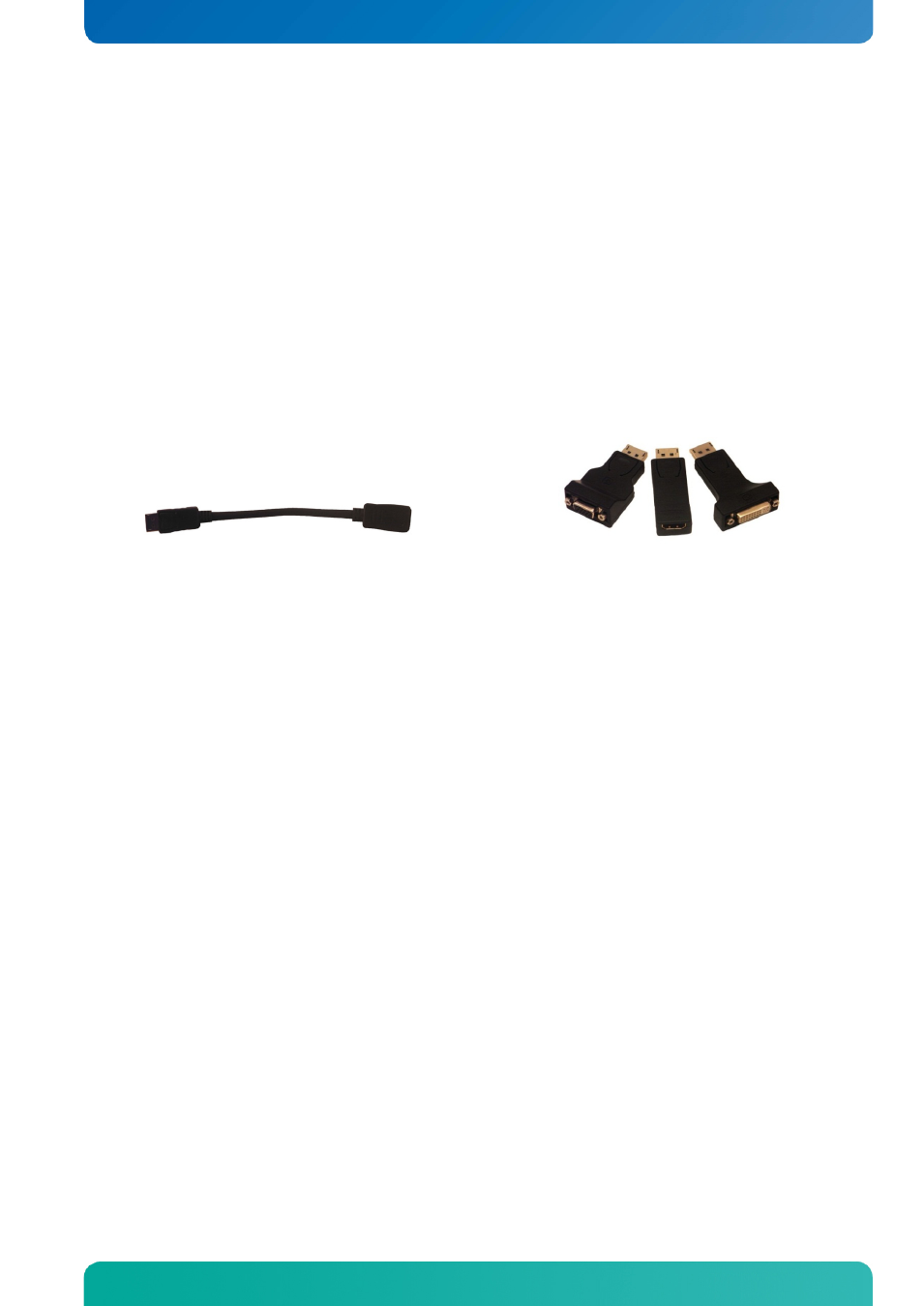

1051-7619 Cable DP Extender cable 200mm DP to VGA DP to HDMI DP to DVI-D
(when using two DP converters) PN 1045-5779 PN 1045-5781 PN 1045-5780
Notice that only the DP to VGA adapter is an “active” converter the HDMI and DVI converters are
passive and cannot be used in a triple panel configuration.
