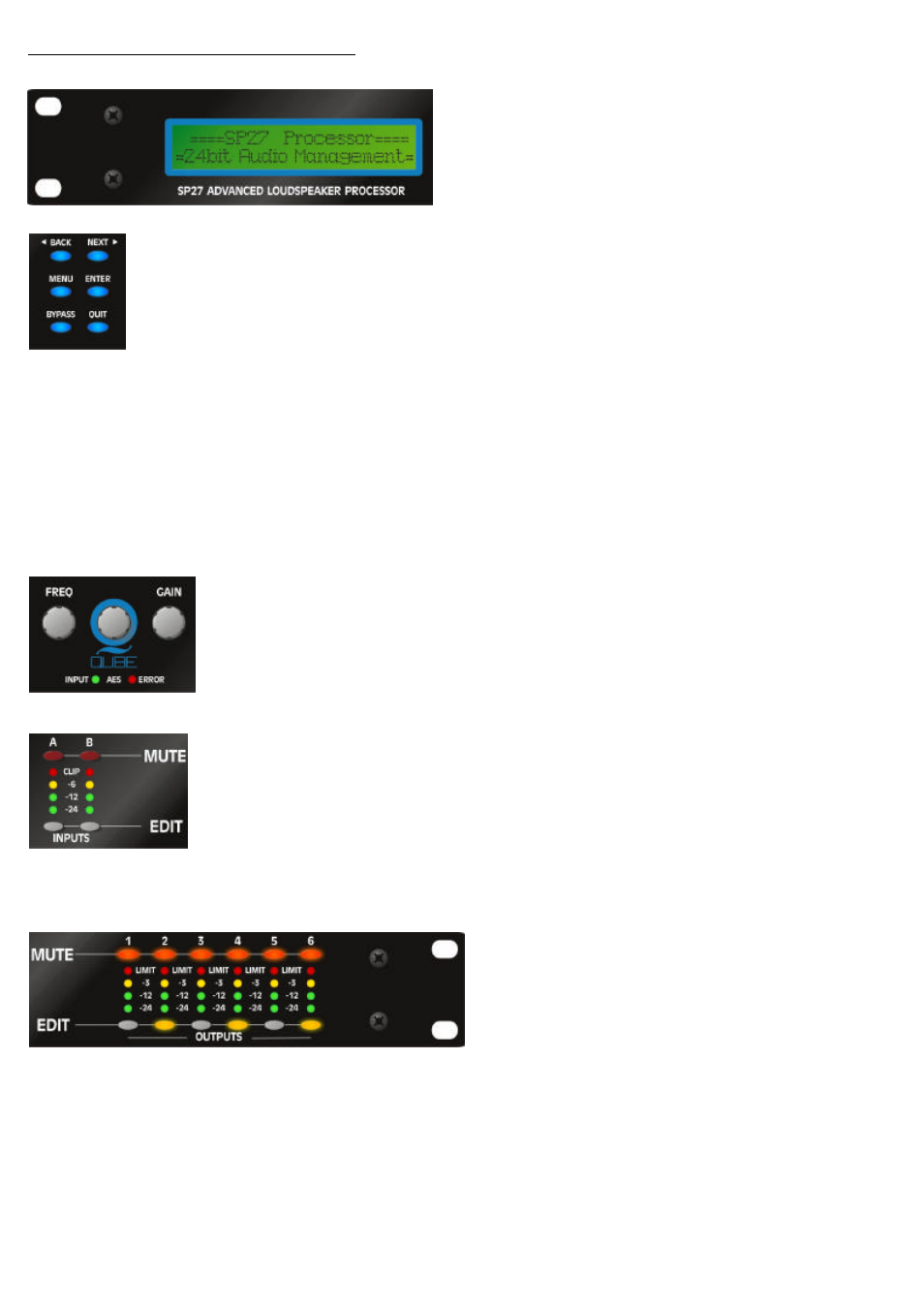

Front Panel Familiarisation
Shows, by default, the name of the last
recalled memory on the bottom line of the screen, and
the current routing on the top line. Also used to show all
parameters as they are edited, and all menu selections.
Selection and adjustment of parameters.
key moves forward through list of parameters.
key moves backwards through list of parameters.
key activates the main menu - a second press selects the last menu edited - a third press
selects the last menu item. In this way, three presses on from the default screen will
jump back to the last parameter adjusted. Selection of different menus is accomplished using
the and keys, or with the encoder.
key enters the chosen menu, confirms selections, and changes filter types when editing parametric
sections.
will flatten the currently selected parametric sections. Note that, for safety reasons, it is not possible
to bypass the high and low pass filter sections.
exits menus back to the default screen.
Three velocity sensitive encoders adjust the relevant parameters as
displayed on the screen.
The two status LEDs show, from left to right, AES inputs selected
(flashing if not locked);
Control and monitor input signal paths.
Red buttons illuminate when pressed and mute audio for that channel.
buttons illuminate yellow when pressed, and access gain on first press, then last
viewed parameter on second press, then exit on third press.
Input meters show dB from clipping point of the analogue to digital converters. Red
LED may illuminate independently from the rest of the meter to show digital
overflow. All two LEDs illuminating indicates internal clipping after the ADC.
Control and monitor output signal
paths.
Red
buttons illuminate when pressed and
mute audio for that channel.
buttons illuminate yellow when pressed, and
access gain on first press, then last viewed
parameter on second press, then exit on third press.
Output meters show dB from limiting.
The red LED illuminates at the onset of limiting.
LCD Screen:
Control Keys:
NEXT
BACK
MENU
MENU
BACK NEXT FREQ
ENTER
BYPASS
QUIT
Rotary Encoders:
Status LEDs:
Input Sections:
MUTE
EDIT
CLIP
CLIP
Output Sections:
MUTE
EDIT
