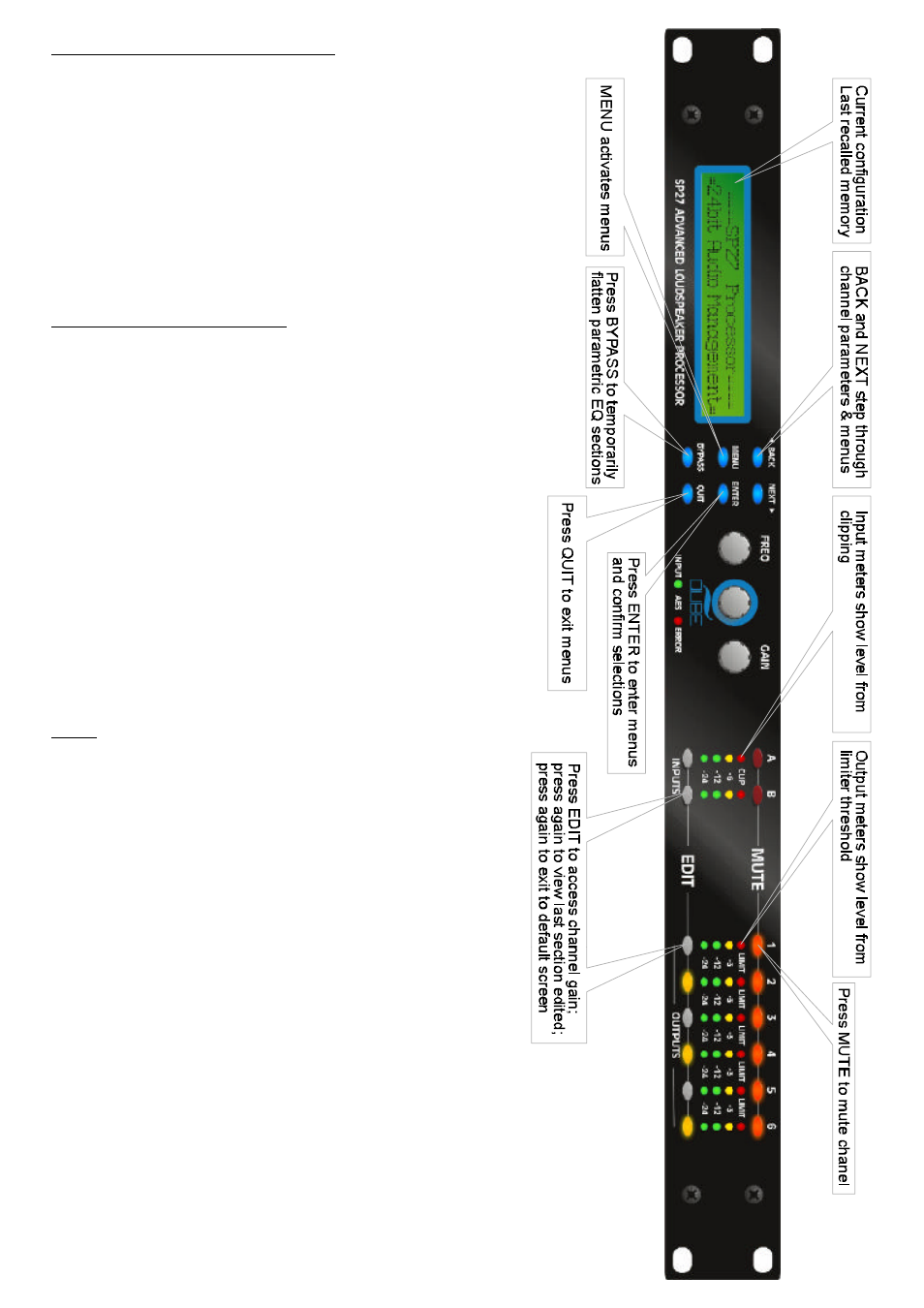

SP 27 Quick Reference

Editing channels :

GAIN

BACK

NEXT

Accessing menus:

MENU

BACK

NEXT

ENTER

GLOBAL MEMORY

INPUT SECTION

CROSSOVER

INTERFACE

SYSTEM

SECURITY

AES/EBU

Global

Memory

System

EDIT

press channel's

key. First

press accesses that channel's gain. To scroll through
channel's parameters, use the

and

keys.

Second press accesses last viewed parameter. Third
press will drop back to the default screen.

press the

key. Use the

and

keys to select the sub-menu required,

and enter the sub-menu using the

key. This

applies to all levels of menu.

always confirms

selections.

Sub-menu: Recall/Store/Erase input,

crossover settings, or combinations of.

Sub-menu: Set up input ganging, and

GEQ 'Q' setting.

Sub-menu: Set up or adjust crossover

design, including routing and auto limiter setting. Also set
up output ganging.

Sub-menu: Comms interface setup

(RS232), G.P.I. interface configuration, and wireless
interface.

Sub-menu: Used to view unit's status, and

select various global options such as PEQ 'Q' or
bandwidth units, delay units, and output metering point
(pre/post mute).

Sub-menu: Used for locking various

operations of the unit, using a 4 digit code.

Sub-menu: monitor AES input status info. (AES

inputs are switched via rear panel.)

The crossover (output) settings may be stored
independently of the input settings, using the

sub-menu.

The output meters show level, in dB from the limiter
threshold, and the input meters show level from
clipping the A-D converters,
pre-gain and all EQ.

The high and low pass crossover filters are defined
independently on each output channel.

To access the limiter attack and release parameters,
select “AutoLimiter TimeCst: No” when designing a
crossover.

To swap parametric filter units between bandwidth
('BandW') and 'Q', enter

Sub-menu, select

'Filter Q / Bandwidth', and select required readout
units.

To swap delay time units, enter

Sub-menu,

select 'Delay Time / Distance', and select required
readout units.

Pressing an

key flashes corresponding channels

routed to / from that channel.

The Menus and their Contents

Notes
