AES Inputs
The SP27 Series units have a full AES implementation built in as standard. This allows the unit to receive
digital audio directly. The switching of input can be performed independently, and the inclusion of sample rate
converters on the inputs allows the unit to accept sample rates from 32kHz up to 192kHz.
AES Input

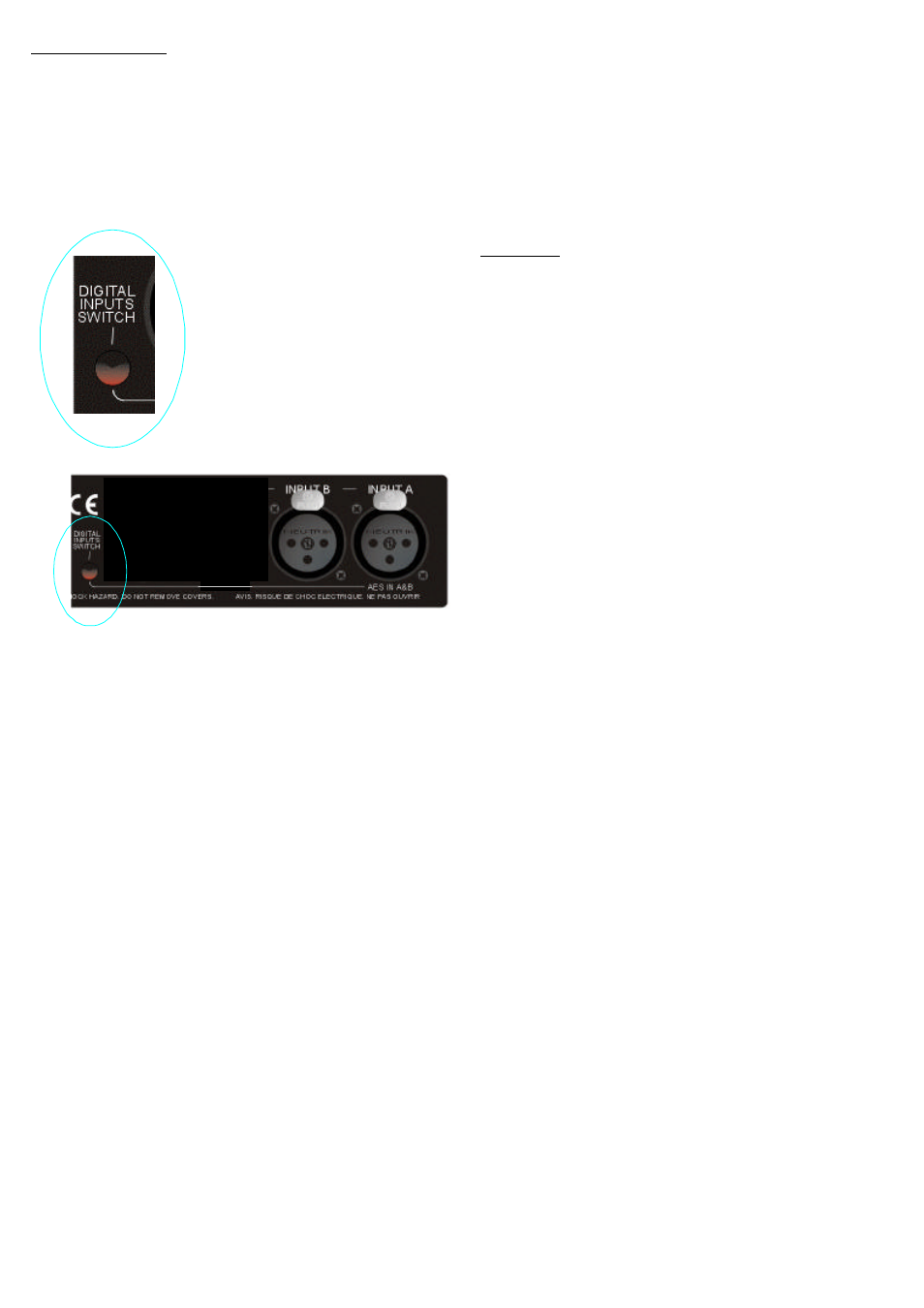

Input selection is via a recessed switch on the rear
panel of the unit, between input B and output 1. A
red LED inside this aperture illuminates to show that
the AES digital inputs have been selected.
A complimentary LED on the front panel
also
illuminates. The switch controls the rear panel LED
directly, whilst the front panel one is viatheprocessor,
allowingit torelayalittlemoreinformation.
If it is flashing, this means that AES inputs have
been selected but have not locked. Once a stable
AES signal is being received, it will be permanently
illuminated.
The AES inputs are marked on the rear panel –
for channel A use input A,
and for channel B use input B.
