FBT QUBE SP27 - Manual (Page 10)

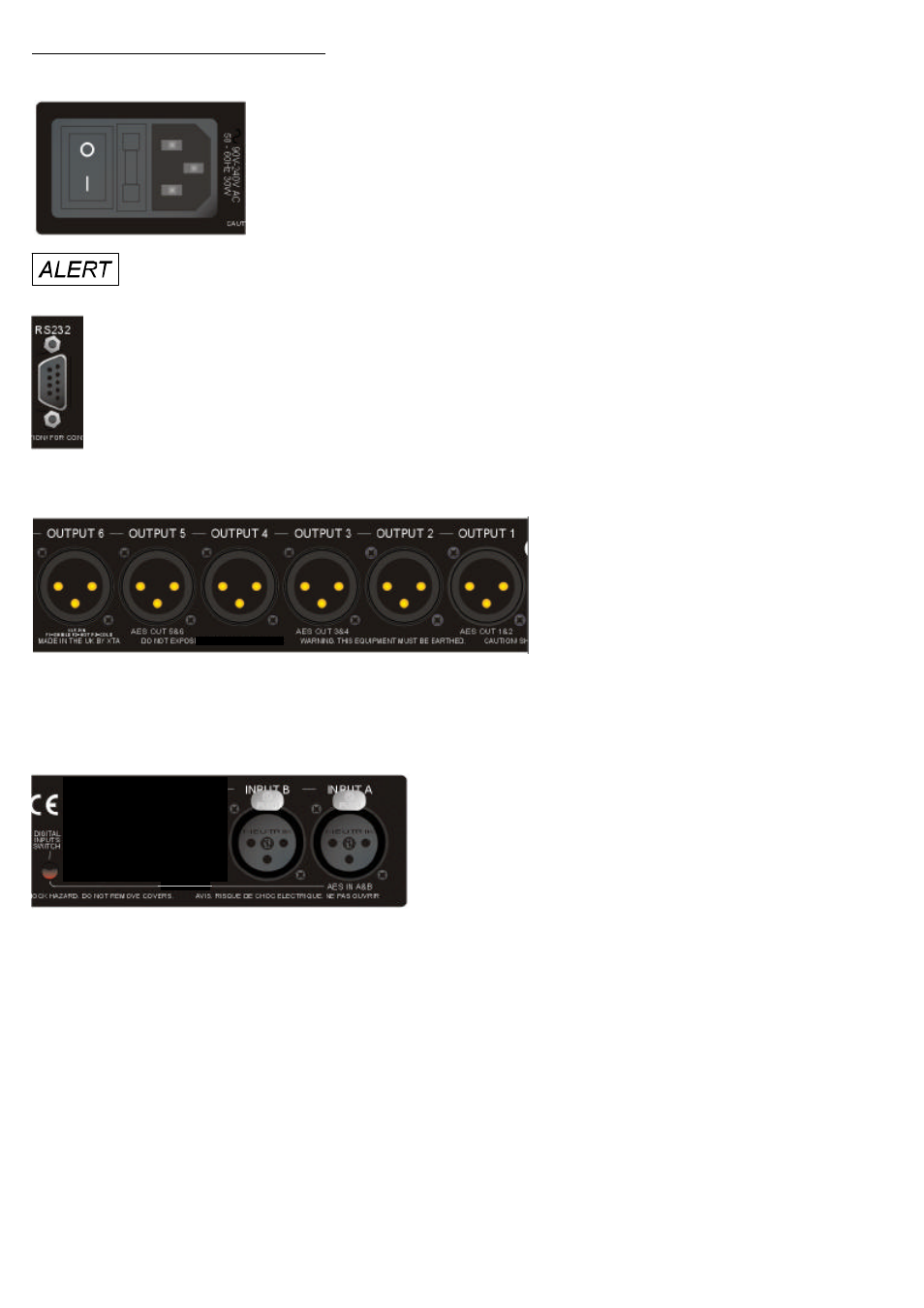

Rear Panel Connections
Power Switch:
Mains Fuse:
Mains Inlet:
RS232:
Audio Outputs:
AES Input Switch:
Audio Inputs:
turns the unit's mains supply off and on.
located in a finger-proof holder adjacent to the mains inlet. A spare
fuse is also located in this holder.
connected via a standard IEC socket.
RS232 standard via a 9 pin D-type connector, for connection to a PC. Data is converted to
RS485 standard and relayed to slave units via the RS485 sockets.
3 pin XLR sockets are
provided for each channel. All are fully
balanced, pin 2 hot, 3 cold, 1 screen.
Recessed switch to select AES digital
inputs. Red LED will illuminate in the hole when AES inputs
are selected, along with the corresponding front panel
indicator.
3 pin XLR sockets are provided for each
channel. All are fully balanced, pin 2 hot, 3 cold, 1 screen.
Always replace the fuse with the correct type and rating as shown on the rear panel legend.
