Introduction | 7
1.0 Introduction
The ETS-Lindgren
Multi-Axis Positioning
System (MAPS™) is
designed to perform
measurements of spherical
antenna patterns as well as
total and effective isotropic
radiated power of wireless
devices. The MAPS provides
independent rotation in both
azimuth and orthogonal
axes.

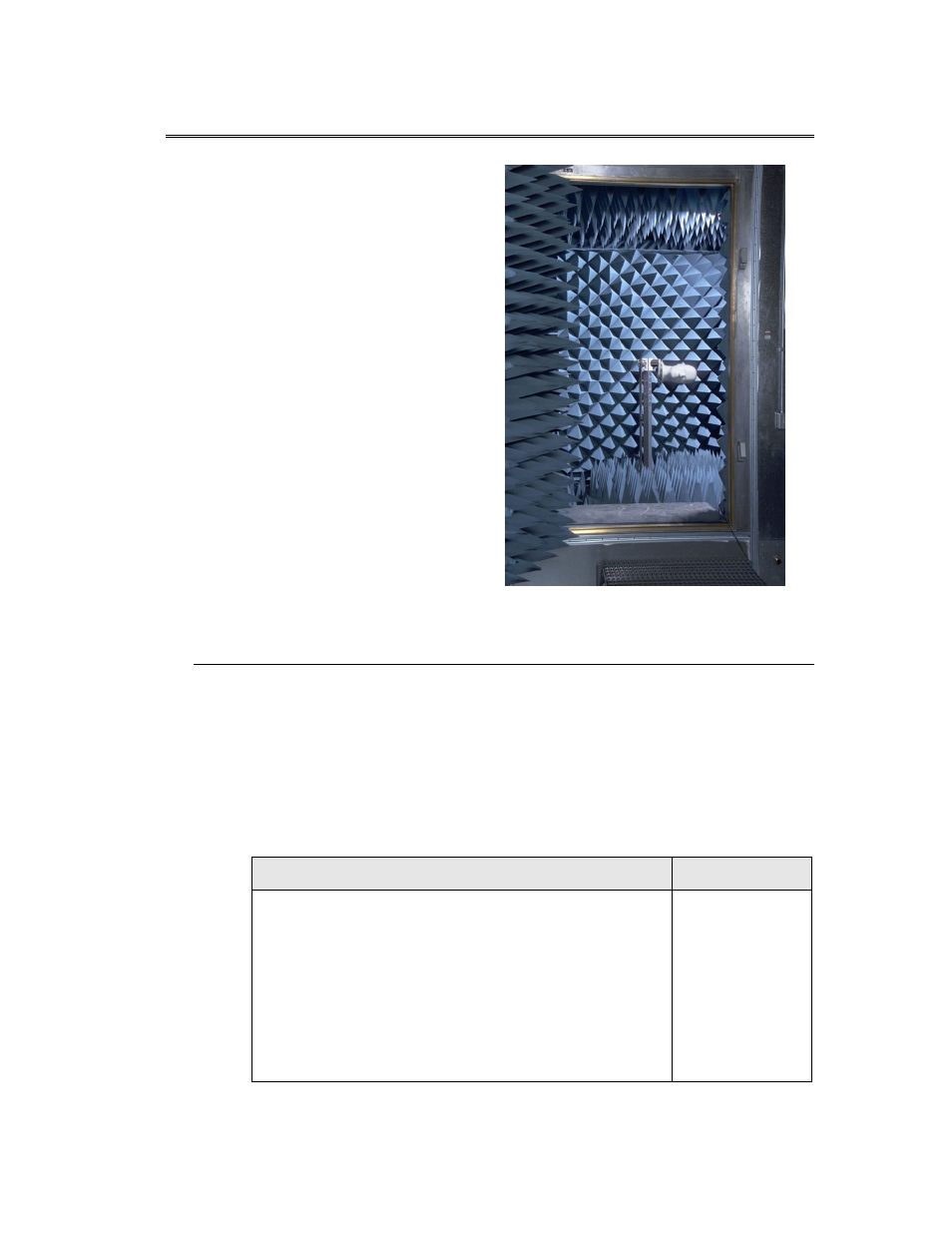

Medium duty MAPS with optional SAM phantom head
MAPS Models
Three models of MAPS are available. Each model provides a vertical support
column to support the Equipment Under Test (EUT).
M ODEL 2110 L IGHT D UTY MAPS
The Model 2110 light duty MAPS can accommodate EUT up to 0.45 kg (1.00 lb),
making it ideal for small devices.
Part Description Part Number
Model 2110 Light Duty MAPS
Includes:
• MAPS Turntable Assembly, part #111040
• Light Duty Mast Assembly, part #111046-NNNN
Specify height as –NNNN; for example, 72 inches is
–7200 and 59.5 inches is –5950
2110-NNNN
