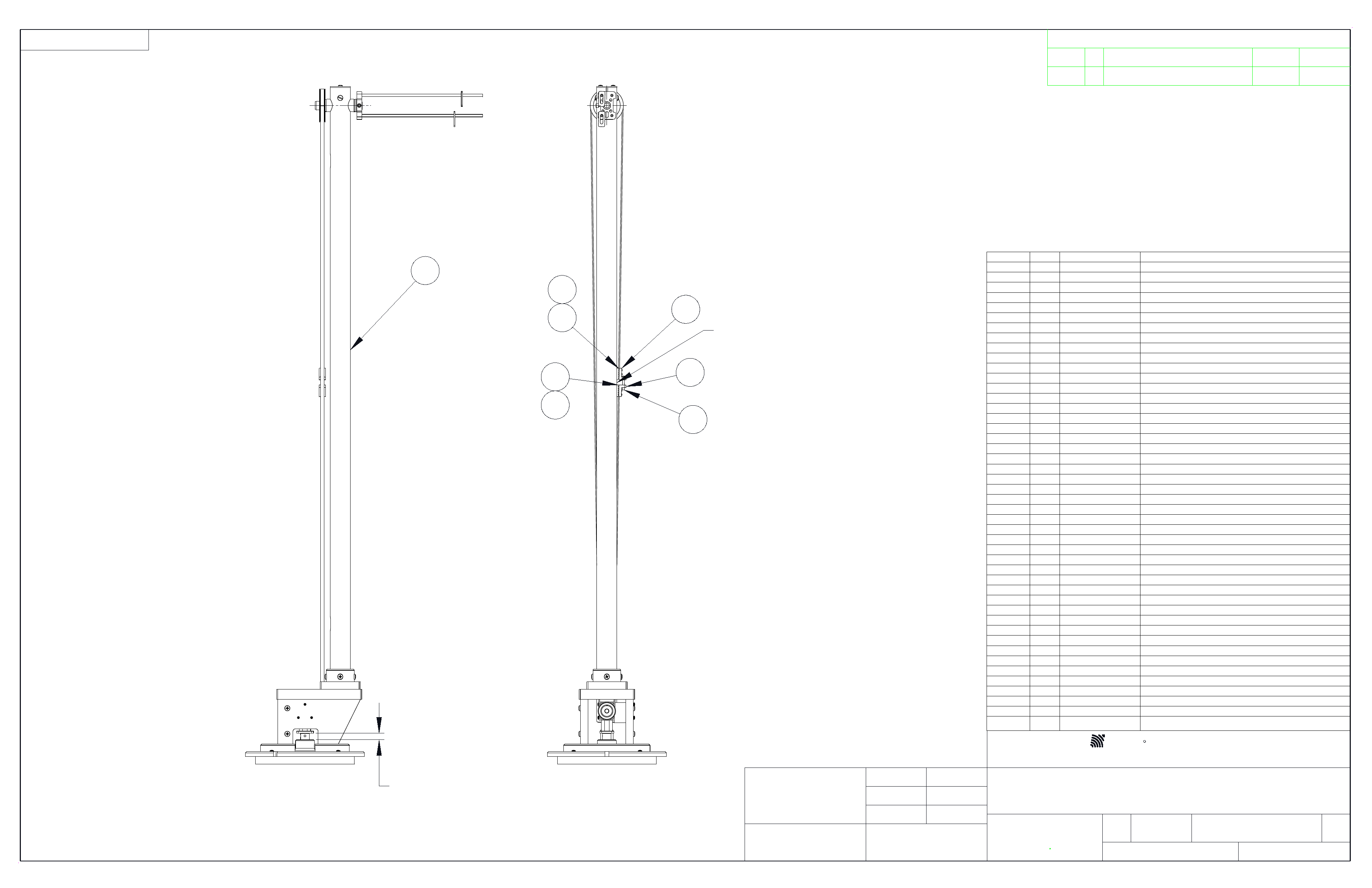

.67 FROM BOTTOM
OF GEARBOX FLANGE TO TOP
OF COUPLING HUB
16 REF ONLY
27
30
29
26
12
28
12
TRIM BELT TO LENGTH
MATCHDRILL BELT WITH
BRACKETS
SEE SHEET 2 FOR DETAILS 1.
INSTALL PULLEY ON OUTPUT SHAFT THAT 2.
TURNS IN THE OPPOSITE DIRECTION OF
THE INPUT SHAFT
ITEM NO. QTY. PART NUMBER DESCRIPTION
46 .10 920081 LOCTITE THREAD LOCKING #242 31 50Ml
45 2 890835 RUBBER BANDS,BLACK (NOT SHOWN)
44 2 910466 SCREW SET SOCKET HEAD SS 1/4-20 X 3/8
43 2 930420 SCREW,1/4-20 X 1/2,SH,CAP,NYLON
42 1 110336 KEY,HUB,3/16 X 1.20
41 2 910634 SKT SET SCREW SS 10-32 X .25
40 6 910738 SCREW SKTSET 3/8-16 X .75 SS
39 1 107059 NUTBLOCK TUBE BTM,MAPS 2010
38 4 910274 FLAT WASHER #8 SS .375 OD, .032 THICK
37 4 910270 NUT,8-32,HEX,SS
36 3 910740 SCREW,8-32 X 1 3/4,PHIL,PAN,SS
35 10 910228 WASHER SPLIT LOCK SS #8
34 2 910332 SCREW BINDING HEAD NYLON 10-32 X 1/2
33 2 910435 SCREW BINDING HEAD NYLON 1/4-20 X 1/2
32 4 910736 SCREW,1/4-20 X 1,PHIL,BIND,SS
31 14 910737 SCREW,1/4-20 X 1-1/4,PHIL,BIND,SS
30 2 910734 SCREW, BIND HEAD, NYLON, 10-32 X 1 1/4
29 1 107120 BRACKET STRAP 4, MAPS 2010
28 1 107119 BRACKET STRAP 3, MAPS 2010
27 1 107118 BRACKET STRAP 2,MAPS 2010
26 1 107087 BRACKET STRAP 1,MAPS 2010
25 12.5 880254 BELT 1/5P X 3/8 LL037XL GATES
24 2 107565 SLIDER,ADJUSTMENT,PHONE HOLDER
23 1 107560 PHONE HOLDER,2010 MAPS SYSTEM
22 1 107090 SHAFT BLOCK,MAPS
21 1 109720 COVER,VERTICAL SUPPORT TUBE
20 2 880256 BEARING UHMW .75 #57785K27
19 1 107072 SHAFT SPACER,MAPS 2010
18 1 107088 SHAFT TUBE,MAPS 2010
17 1 109888 SUB-ASSY,SHAFT/PULLEY,2010 MAPS
16 1 REF ONLY TUBE,VERTICAL SUPPORT,....MAPS
15 1 107065 MOUNT,BTM TUBE,MAPS
14 7 910277 SCREW,8-32 X 1 1/4,PHIL,PAN,SS
13 6 910735 SCREW, MACH, PH PAHNEAD, 1/4-20 X 1.5
12 4 910741 SCREW,6-32 X 1/2,PHIL,PAN,SS
11 4 910357 SCREW,10-32 X 3/4,PHIL,PAN,SS
10 1 109973 RING,LOCKING,MOUNT,MAST ASSY
9 1 107108 GEARBLOCK,MAPS 2015
8 1 107070 PULLEY 24 T MOD, MAPS 2010
7 1 110304 TOP PLATE,GEARBOX HOUSING,MAST,2110
6 2 110302 SIDE PLATE,GEARBOX MT,MAST,2110
5 1 880302 HUB,COUPLING,AL,7/8" BORE
4 1 110303 ADAPTER,SHAFT,GEARBOX
3 1 880271 GEARBOX,WORM,2:1,PRECISION
2 1 110305 MOUNT PLATE,GEARBOX MT,2110/2115
1 1 109970 MOUNT,BASE,MAST ASSY
MATERIAL
CHECKED
APPROVALS
1:4 111041 A
1
DECIMALS
UNLESS OTHERWISE SPECIFIED:
TOLERANCES ARE:
DIMENSIONS ARE IN INCHES
FINISH
X.XXX
X.XX
±
±
ANGLES
±
2
DRAWN
DOCUMENT, WHOLE OR IN PART,
PERMISSION OF ETS LINDGREN
WITHOUT EXPRESS WRITTEN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
EMC Test Systems, L.P.
Cedar Park, TX
TITLE
RBG
DATE
Glendale Hts, IL
Lindgren-RF Enclosures
SEE BOM
DO NOT SCALE DRAWING
SHEET OF
.015
DWG. NO.
An ESCO Technologies Company
ETS LINDGREN
.005
.5
SIZE
D
SCALE
TM
REV.
REF DRAWING
NOTES:
ECO# REV APPROVED DESCRIPTION DATE
REVISIONS
5022 A RELEASED 6/28/06 RBG
NONE
10/10/05
PARTS,COMMON,LIGHT DUTY MAPS ASSY
