ETS-Lindgren 2115 Multi-Axis Positioning Systems (MAPS) User Manual
Page 32
32
|
Installation
Absorber Installation
After the MAPS and
mast(s) are leveled
and bore sight is
achieved, position
the absorber that
surrounds and
covers the unit. For
absorber locations,
see the Top View of
Wood Deck with
Absorber Locations
assembly drawing
located in the back
pocket of the
manual.

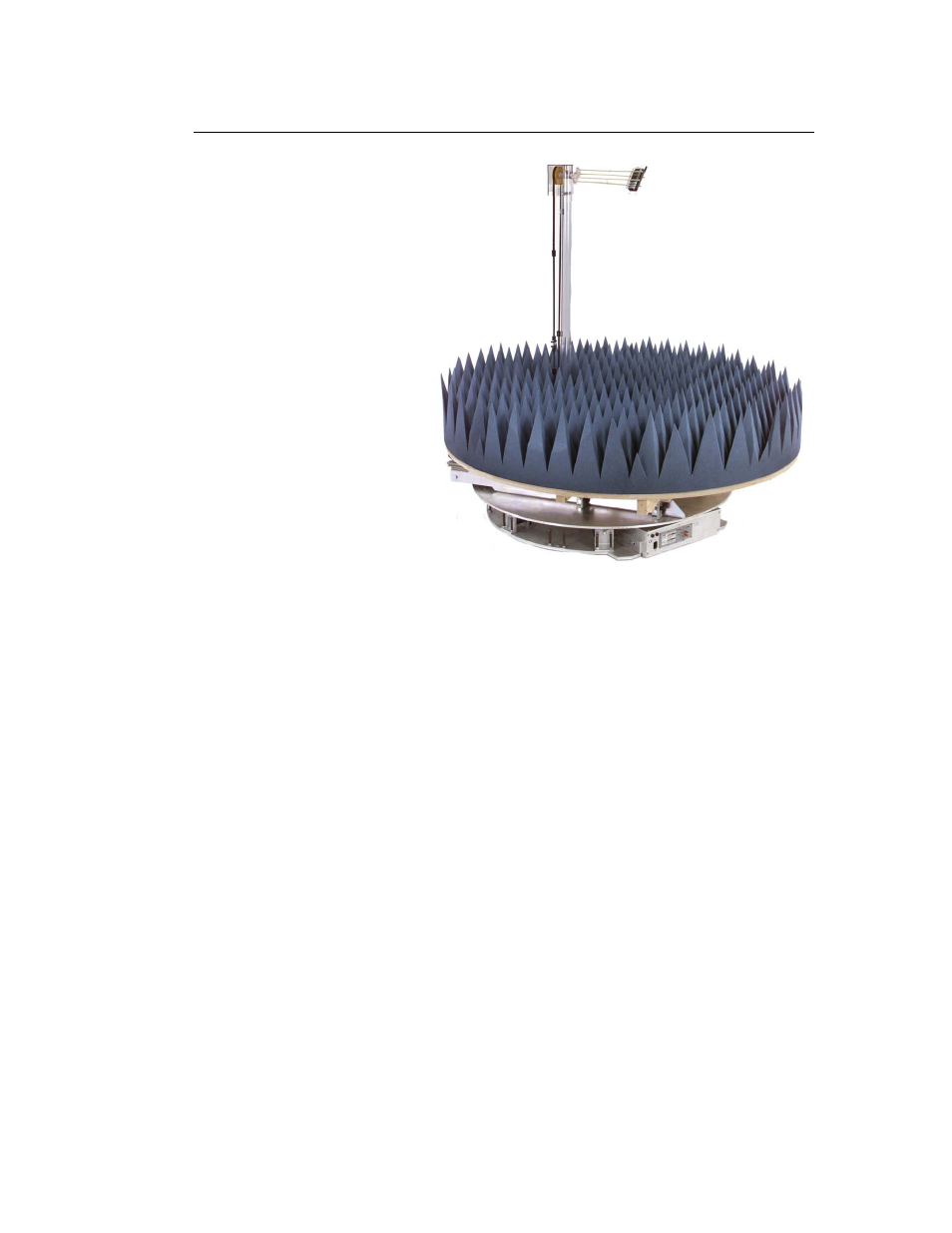

Light duty MAPS with deck absorber
