Sheet1, Drawing view1, Ets lindgren – ETS-Lindgren 2115 Multi-Axis Positioning Systems (MAPS) User Manual

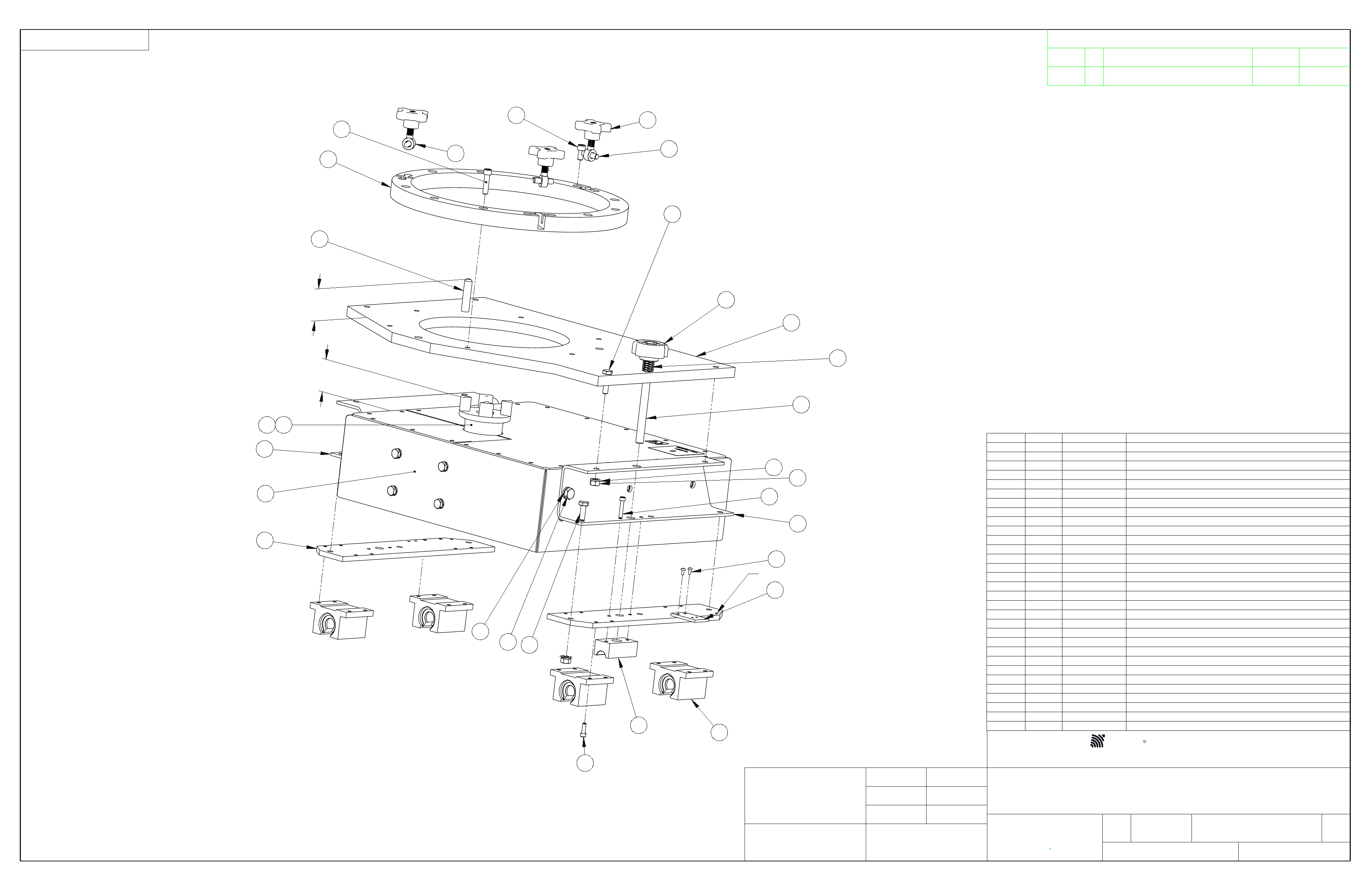

Page 42: Assy,slider,maps
1.63
1.63
11
25
19
20
21
27
18
6
15
9
2
7
22
24
23
10
12
16
1
14
17
8
5
3
13
SEE NOTE 1
SCREW MUST BOTTOM OUT INTO
ITEM 14, 2X
PART OF LINEAR SLIDE ASSY
SEE ASSY 110073
4
31
28
34
INSTALL ITEM 30 W/29 AT THIS LOCATION
1. DIMENSION IS FROM MOTORBASE COVER TOP TO COUPLING HUB TOP.
ITEM #
QTY
PART NUMBER
DESCRIPTION
31
1
880301
INSERT,SPIDER,92 SHORE A
30
1
890687
CABLE CLAMP P-CLIP 1/4" PLASTIC(NOT SHOWN)
29
3
910159
SELF TAPPING SCREW PAN HEAD ZN6-32X3/8
28
1
110747
MOUNT,CHAIN,CABLE
27
3
110765
KNOB,HAND,ALUM,5/16 THRD,MODIFIED
26
1
105012
KEY, .187" X .875"
25
1
109980
PIN,LOCATING,MAST ASSY
24
10
910664
HEX NUT,STAINLESS 1/4-20
23
6
910393
WASHER,5/16,LOCK,STL,ZINC,SPLT
22
10
910762
LOCKWASHER,SPLIT,1/4:,SS
21
3
891020
ROD END,5/16-18 FULL THRD
20
3
890694
DOWEL PIN 1/4 X 1.0 SS
19
6
910777
SCREW,1/4-20 X 1,SH,CAP,SS
18
6
910437
SCREW SOCKET HEAD ALLEN 1/4-20 X 1/2
17
16
910136
SCREW ALLEN HEAD 8-32 X .5
16
2
910801
SCREW,8-32 X 7/8,SH,GR8
15
1
891016
SPRING,WAVE,3/8ID X 9/16OD X .715FL
14
1
109975
STOP,SHAFT
13
1
109979
SUPPORT,CHANNEL,MOTORBASE MOUNT
12
1
109977
SUPPORT,CHANNEL,BRAKE SIDE
11
1
109967
RING,MOUNT MAST ASSY
10
6
910386
BOLT,5/16-18 X 3/4,HEX,GR5
9
4
910447
BOLT,1/4-20 X 1,HEX,SS
8
6
910441
BOLT,1/4-20 X 3/4,HEX,SS
7
1
910931
SCREW,3/8-16 X 4 1/2,HEX,CAP,SS,FULL THRD
6
1
890912
KNOB,3/8 HEX BOLT
5
2
109978
MOUNT,BEARING,CHANNEL SUPPORT
4
1
880302
HUB,COUPLING,AL,7/8" BORE
3
1
109040
ASSY,MOTORBASE,2188
2
1
109984
CROSSPLATE,CHANNEL MOUNT
1
4
-
PILLOW BLOCK & BEARING PART OF LINEAR SLIDE ASSY
MATERIAL
CHECKED
APPROVALS
1:2
109987
A
1
DECIMALS
UNLESS OTHERWISE SPECIFIED:
TOLERANCES ARE:
DIMENSIONS ARE IN INCHES
FINISH
X.XXX
X.XX
±
±
ANGLES
±
1
DRAWN
DOCUMENT, WHOLE OR IN PART,
PERMISSION OF ETS LINDGREN
WITHOUT EXPRESS WRITTEN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
EMC Test Systems, L.P.
Cedar Park, TX
TITLE
RBG
DATE
Glendale Hts, IL
Lindgren-RF Enclosures
SEE BOM
DO NOT SCALE DRAWING
SHEET
OF
.015
DWG. NO.
An ESCO Technologies Company
ETS LINDGREN
.005
.5
SIZE
D
SCALE
TM
REV.
REF DRAWING
NOTES:
ECO#
REV
APPROVED
DESCRIPTION
DATE
REVISIONS
5068
A RELEASED
3/23/06
RBG
NONE
7/7/05
ASSY,SLIDER,MAPS
