1
2
3
REFER TO ASSY'S, SUB-ASSY'S, AND KITS FOR OTHER NOTES AND HARDWARE 1.
NEEDED FOR FINAL ASSY AND INSTALLATION REQUIREMENTS.
7.80
63.00
.12 REF
5.88
14.43

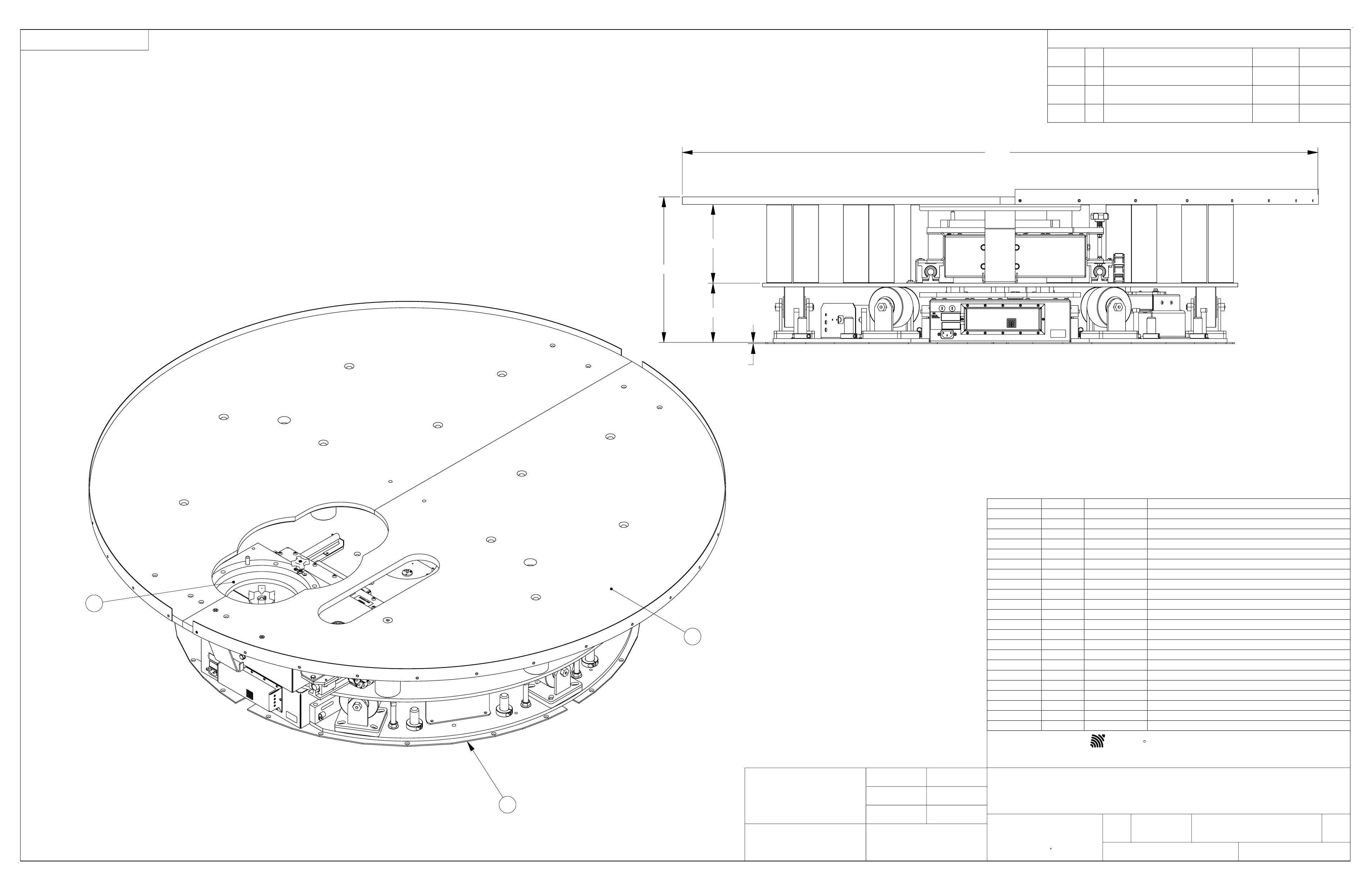

VIEW OF TABLE
FROM MOTORBASE SIDE
(WOODEN DECK)
ITEM NO QTY PART NUMBER DESCRIPTION
22 2 910714 SCREW,6-32 X 1/4,PHIL,BIND,TAPTITE
21 13 675319 CABLE,HMZD,3X1.50mm2,16A,450/750V (N/S)
20 1 506180 FRAME,CONVEX,WHT
19 1 506179 RECEPTACLE,UNIVERSAL,FEMALE,WHT,20A,250V
18 1 891073 SLEEVING,SLIT CONVOLUTED,PE,3/4" I.D. (N/S)
17 2 891072 CLAMP,CABLE,P-CLIP,7/8" (N/S)
16 1 110809 BRACKET,HOLD DOWN,SLIDER ASSY
15 .67 890748 SBR STRIP McMASTER 8510K14 (N/S)
14 7 910159 SCREW,6-32 X 3/8,PHIL,BIND,TT
13 7 890166 CLAMP CABLE 3/8 8944 HH SMITH 7629 KEYS (N/S)
12 13 670027 CABLE,POWER,3 X 16 AWG (N/S)
11 1 109533 KIT, MAPS ABSORBER (N/S)
10 1 890817 ROTARY JOINT,SMA BULKHEAD,KEVLIN 1102SS
9 4 910246 SCREW,8-32 X 1/2,PHIL,FLAT,SS
8 5 910713 SCREW,4-40 X 1/4,PHIL,BIND,TAPTITE
7 5 910436 BOLT,1/4-20 X 1/2,HEX,SS
6 1 107561 ELECTRICAL JUNCTION BOX ASSY,MAPS TT
5 1 109968 MOUNT,ROTARY JOINT
4 1 109982 PASS THRU,CABLE,TURNTABLE,MAPS
3 1 110073 SUB-ASSY,TOP,TURNTABLE,MAPS
2 1 109987 ASSY,SLIDER,MAPS
1 1 108912 TURNTABLE,ASSY,2188-1.23
MATERIAL
CHECKED
APPROVALS
1:4
111040
C
1
DECIMALS
UNLESS OTHERWISE SPECIFIED:
TOLERANCES ARE:
DIMENSIONS ARE IN INCHES
FINISH
X.XXX
X.XX
±
±
ANGLES
±
2
DRAWN
DOCUMENT, WHOLE OR IN PART,
PERMISSION OF ETS LINDGREN
WITHOUT EXPRESS WRITTEN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
EMC Test Systems, L.P.
Cedar Park, TX
TITLE
RBG
DATE
Glendale Hts, IL
Lindgren-RF Enclosures
SEE BOM
DO NOT SCALE DRAWING
SHEET OF
.015
DWG. NO.
An ESCO Technologies Company
ETS LINDGREN
.005
.5
SIZE
D
SCALE
TM
REV.
REF DRAWING
NOTES:
ECO# REV APPROVED DESCRIPTION DATE
REVISIONS
5122 A RELEASED
6/28/06 RBG
NONE
5/14/04
ASSY,TURNTABLE,MAPS
RBG 4/20/07
P/N 910159 WAS 910714, UPDATED HW
PER VAULT HARDWARE
B 5294
C 12/12/08
ADDED 506179,506180,675319. P/N
910713 QTY WAS 3
RBG 5600
