L EVELING AND H EIGHT A DJUSTMENT
If during the bore sight process it is determined that the MAPS system must be
leveled or the height adjusted, follow these steps.

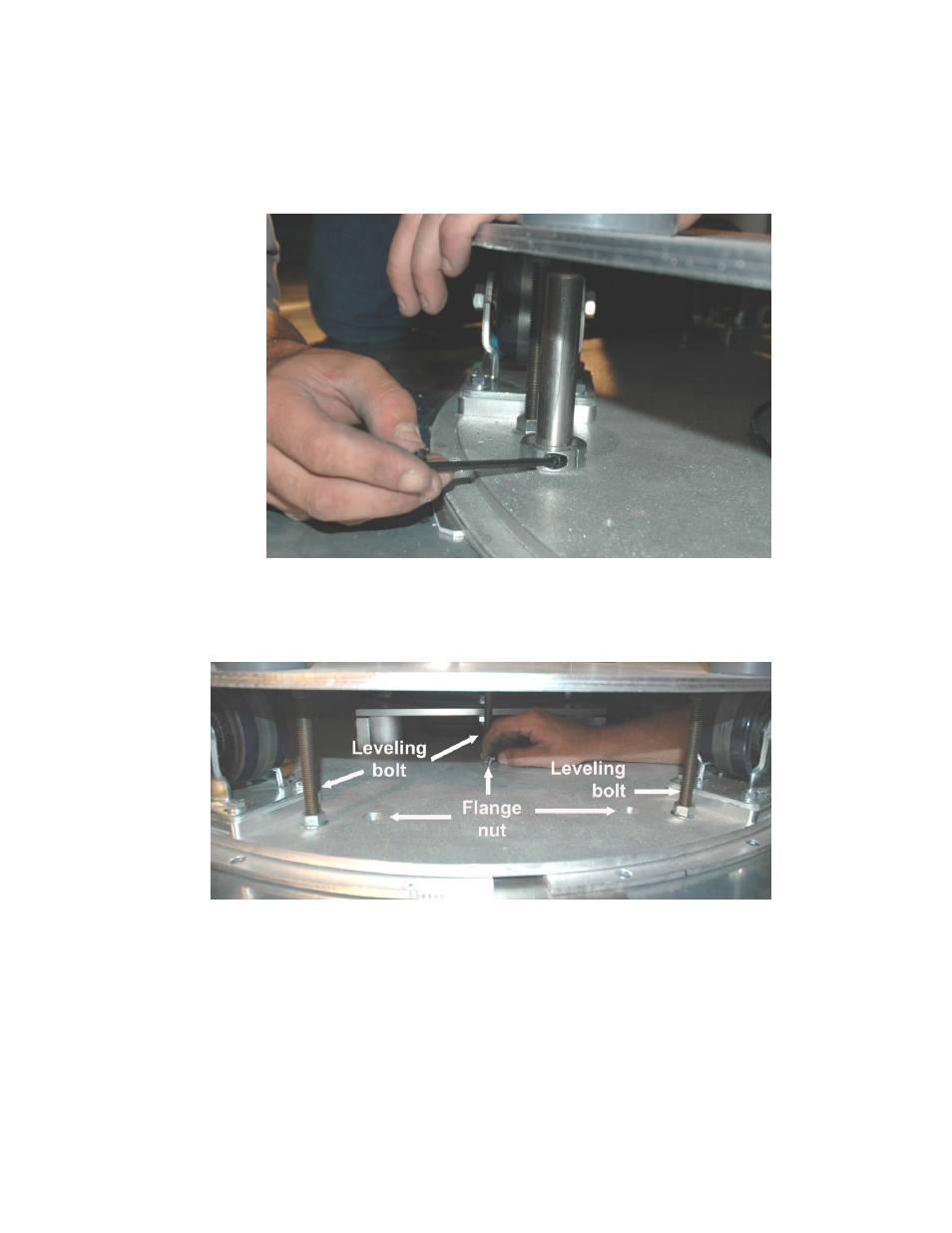

Loosen collar on the anchor shafts
1. Use a 3/16 hex key wrench to loosen the collar on the anchor shafts.
Remove flange nuts, then raise or lower leveling bolts
2. Use an open-ended wrench to loosen the flange nuts on all leveling bolts.
3. Lower or raise the leveling bolts to set the turntable to the correct height. Begin
leveling from two opposing sides.
4. When the level is accurate, move the remaining leveling bolts into the correct
position.
