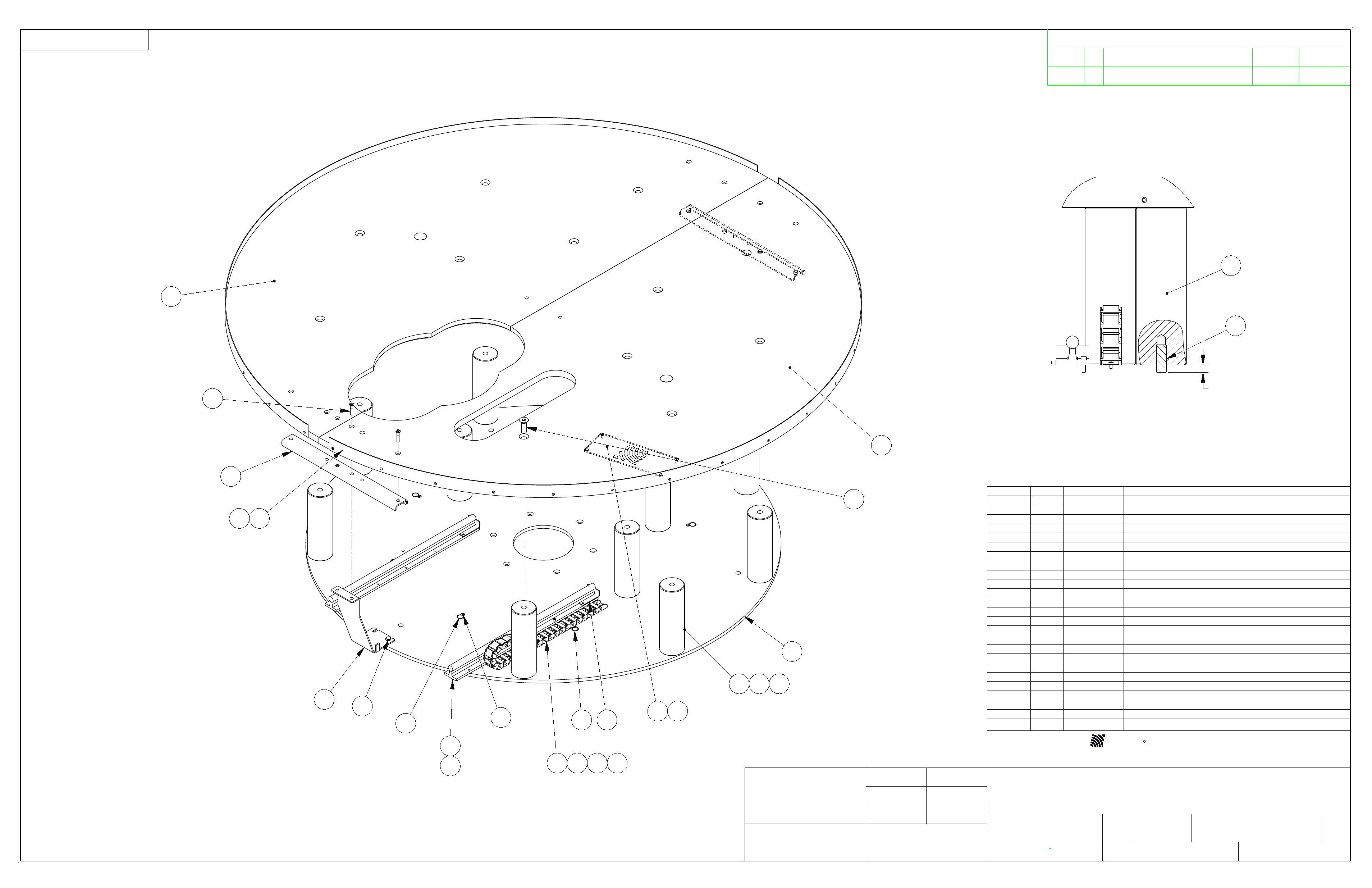

ETS-Lindgren 2115 Multi-Axis Positioning Systems (MAPS) - Manual (Page 43)

1 11
5
3
10
9
8
7
6
15
2
SEE NOTE 2
SOME PARTS SHOWN IN EXPLODED VIEW FOR PART CLARITY. 1.
LINEAR SLIDES TO BE SET WITH MOTORBASE ATTACHED TO THEM 2.
FOR PROPER ALIGNMENT AND ADJUSTMENT TO ITEM 3 PRIOR TO
FINAL ASSY.
3. NOT ALL HARDWARE SHOWN.
16
4
17
18 19
(ON TURNTABLE TOP)
14
12
21 23 24 22
25
13
20
.38
5
CUT VIEW OF WOOD DECK
VERTICAL SUPPORT AND
THREADED STUD
17
ITEM NO. QTY. PART NUMBER DESCRIPTION
25 2 910436 BOLT,1/4-20 X 1/2,HEX,SS
24 2 910713 SCREW,4-40 X 1/4" TYPE T,PANHD SELF TAP
23 2 910114 MACHINE SCREW FLAT HEAD 4-40 X 3/8
22 1 891055 BRACKET,FEMALE,IGUS CHAIN (2 PER PACK)
21 1.65 891054 CHAIN,CABLE CARRIER,IGUS
20 10 910074 MACH SCREW FH 1/4-20 X 1.25 SS
19 35 910219 WOOD SCREW PHL #6 X 5/8
18 2 107254 WOOD DECK STRIP, MAPS
17 12 109989 STUD,THREADED,VERTICAL SUPPORT
16 .01 920081 LOCTITE THREAD LOCKING #242 31 50Ml
15 12 910536 SCREW FLAT HEAD SOCKET 1/2-13 X 1-1/2
14 7 110059 PLUG,HOLE,TABLE TOP
13 20 910500 CAP SCREW SOCKET HEAD SS 8-32 X 5/8
12 8 910930 SCREW,10-32 X 3/8.PHIL,FLAT,SS
11 4 910241 SCREW FLAT HEAD 8-32 x 3/8
10 2 109969 STOP,TRAVEL,CARRIER,MAPS MAST
9 1 109981 BRACKET,SUPPORT,WOOD TOP
8 2 109976 CROSSBRACE,WOOD DECK
7 1 109986 DECK,LOWER HALF,WOOD,MAPS
6 1 109985 DECK,UPPER HALF,WOOD,MAPS
5 12 109974 SUPPORT,VERTICAL,WOOD DECK
4 2 880300 SLIDE,LINEAR,5/8 SHAFT
3 1 109983 TOP,TURNTABLE,MAPS
2 2 880280 PIN,CLEVIS,SS,1/2"O.D. X 1" LONG
1 1 108925 COVER,ACCESS
MATERIAL
CHECKED
APPROVALS
1:4 110073 A
1
DECIMALS
UNLESS OTHERWISE SPECIFIED:
TOLERANCES ARE:
DIMENSIONS ARE IN INCHES
FINISH
X.XXX
X.XX
±
±
ANGLES
±
1
DRAWN
DOCUMENT, WHOLE OR IN PART,
PERMISSION OF ETS LINDGREN
WITHOUT EXPRESS WRITTEN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
EMC Test Systems, L.P.
Cedar Park, TX
TITLE
RBG
DATE
Glendale Hts, IL
Lindgren-RF Enclosures
SEE BOM
DO NOT SCALE DRAWING
SHEET OF
.015
DWG. NO.
An ESCO Technologies Company
ETS LINDGREN
.005
.5
SIZE
D
SCALE
TM
REV.
REF DRAWING
NOTES:
ECO# REV APPROVED DESCRIPTION DATE
REVISIONS
5068 A RELEASED 3/23/06 RBG
NONE
5/14/04
SUB-ASSY,TOP,TURNTABLE,MAPS
