24 | Tuners

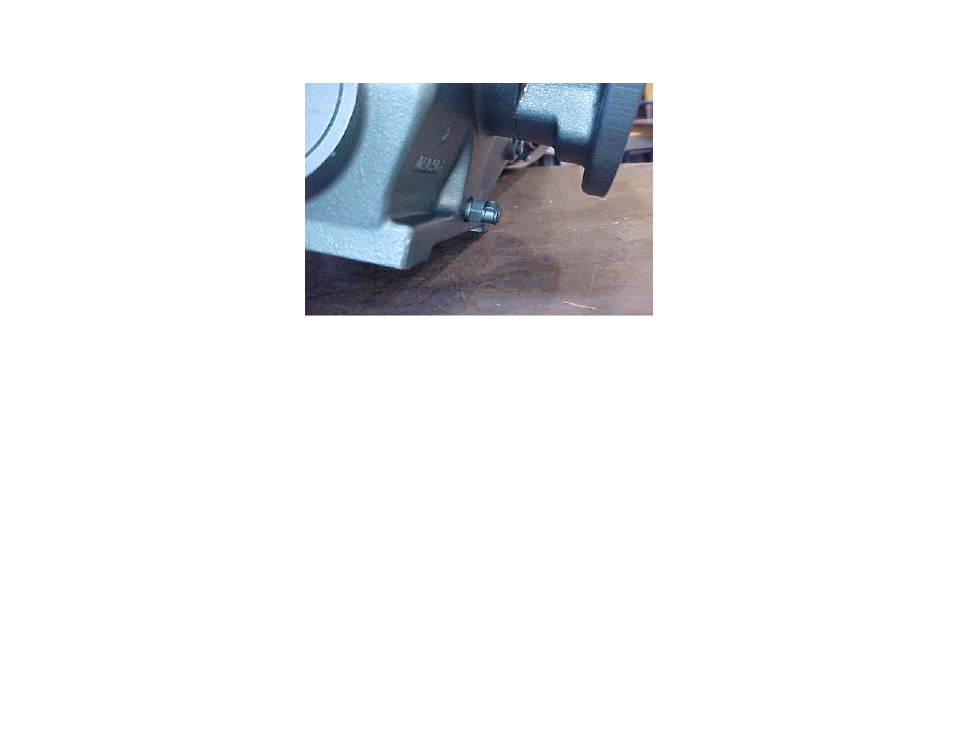

• Remove grease cap next to shot filler hole and fill with the conductive
grease supplied, then replace. Do not overfill to the point where
excessive grease is visible on the shaft.
• Mount the motor control panel in a convenient position on the outer
wall of the chamber, within easy reach for operation of the emergency
stop.
• Route and secure cables and fibers as necessary to the motor
controller and power supply.
• Check installation before powering on. Confirm that the bearing
housing cap is secure and check all fixings.
• Rotate tuner using the controller and verify free operation.
6. For the pan-type chamber, mark the location of the motor angle
bracket. Fix the motor to the bracket and the bracket to the chamber
support so that the motor plate is perpendicular to the shield wall. The
motor should be supported by the chamber support structure.
