20

|

Tuners

3.

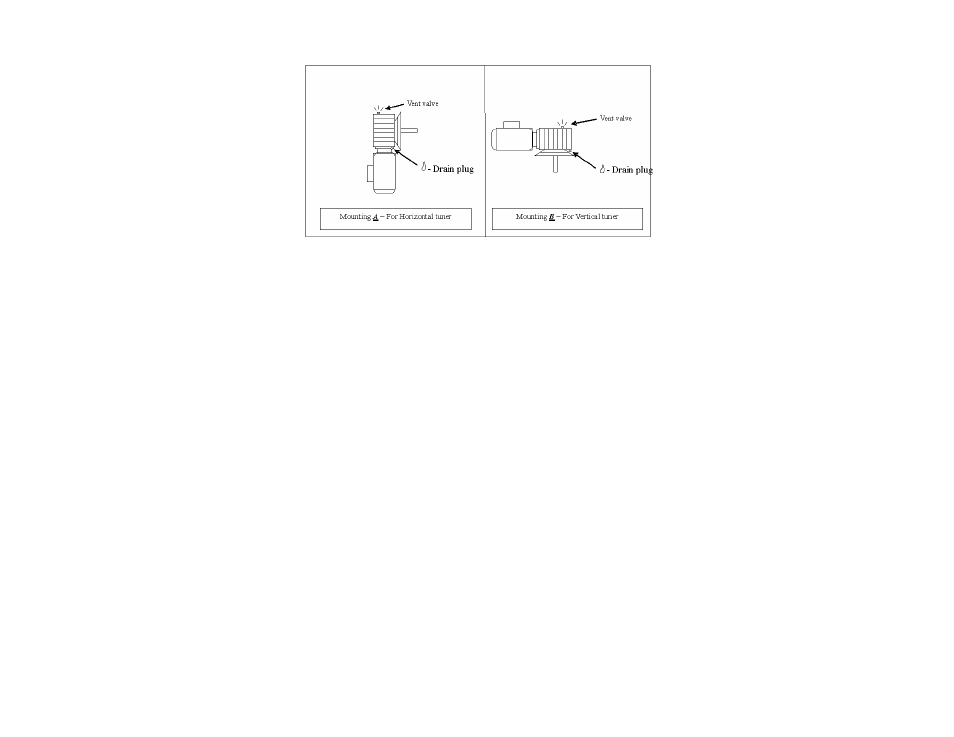

Verify that the idler mounting plate can be mounted at the opposite end

without obstruction, and that the motor(s) can be mounted in horizontal

or vertical orientation without obstruction, and with suitable fixing.

4.

Cut the holes in the panel as required for the shaft and the

four mounting screws.
