Installation procedure – Elecraft KXBC3 User Manual
Page 7
7
Installation Procedure
Taking ESD precautions, remove the KXBC3 module from its ESD-safe envelope and mount the
nylon standoff as shown in Figure 1.
CAUTION!
Handle the KXBC3 module carefully to avoid damaging the components on the
reverse side.

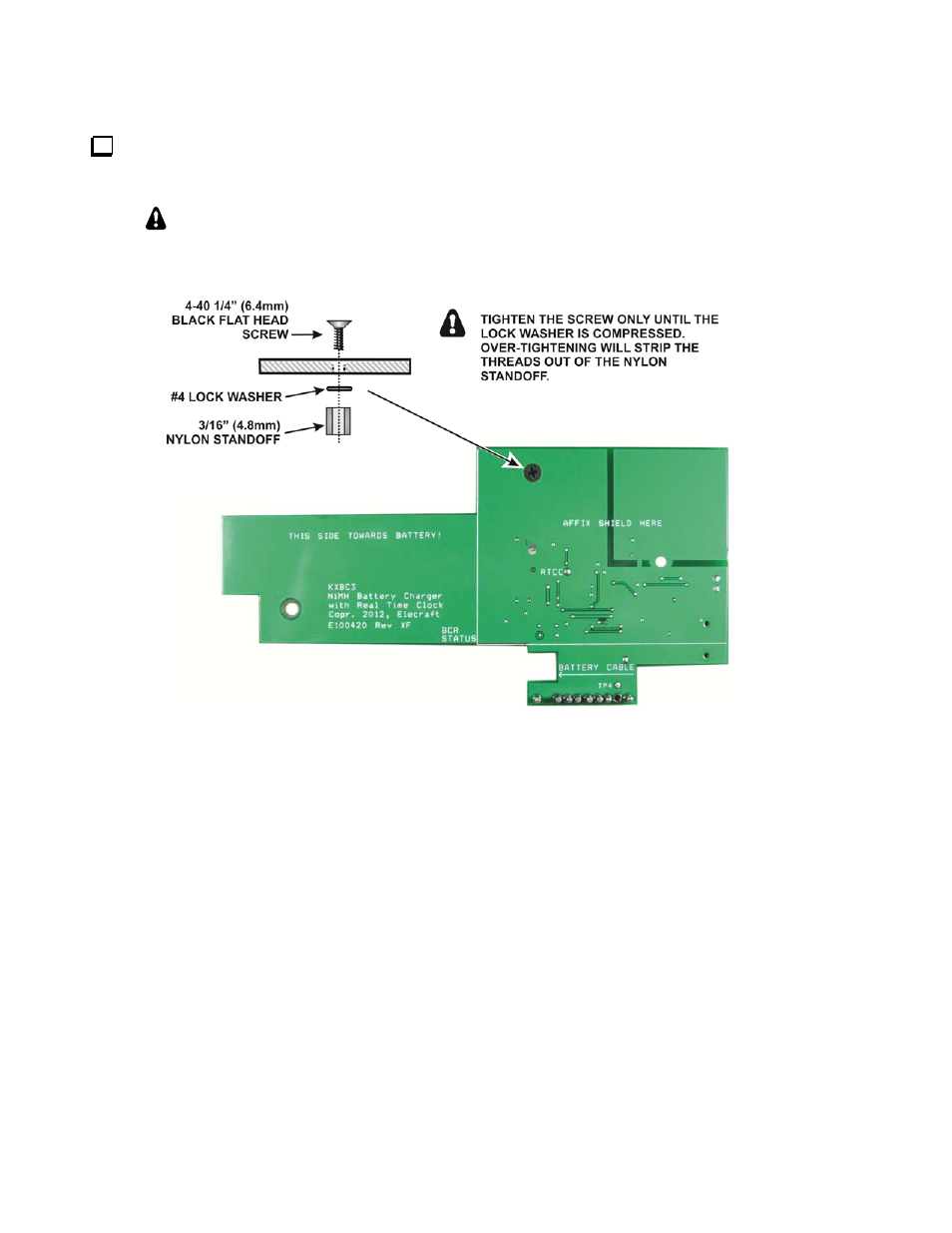

Figure 1. Mounting the Nylon Standoff on the KXBC3 Module.
